Description
Product Details of the Dell R886R

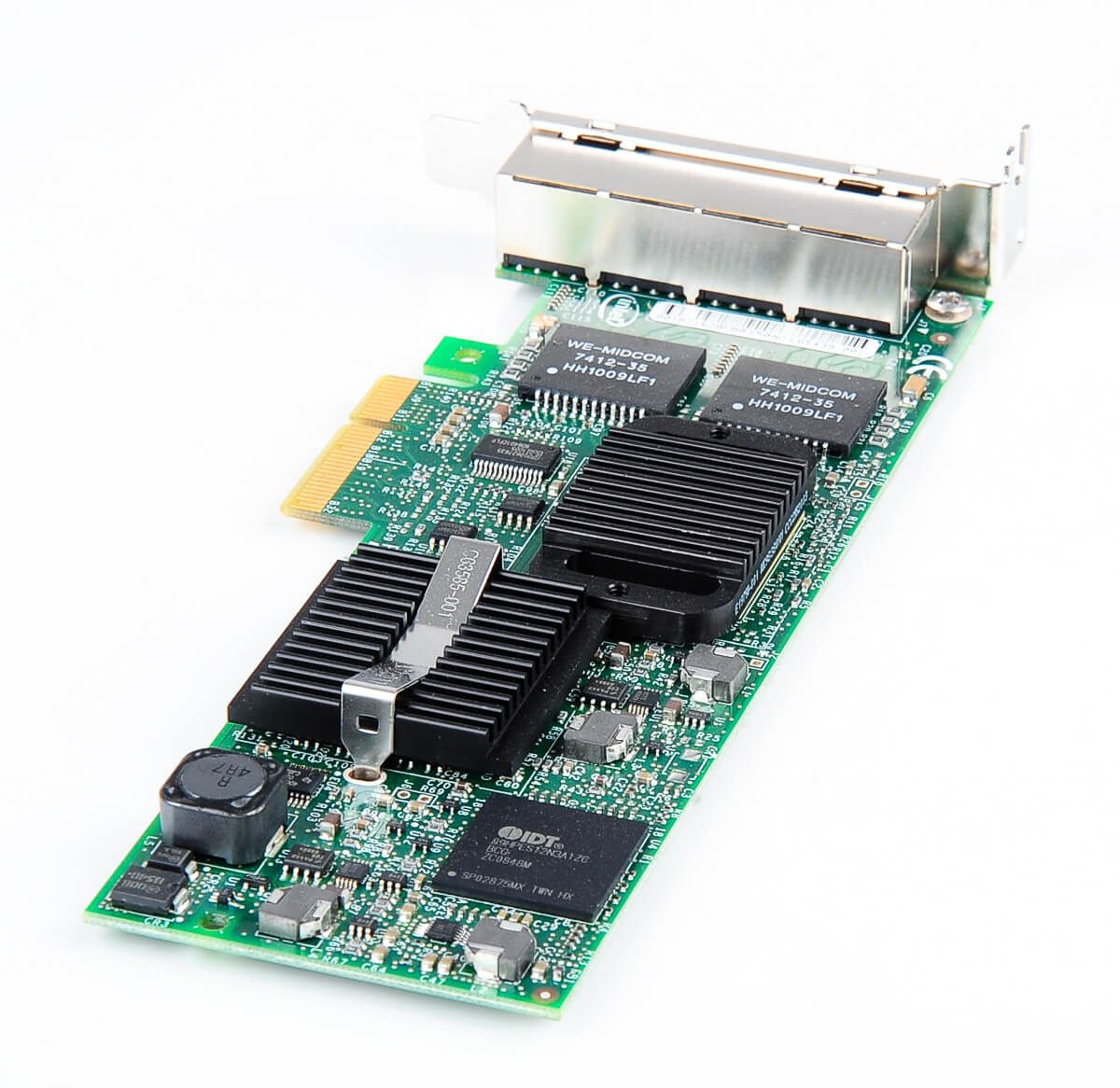

The Dell Pro 1000 VT Quad Port Server Adapter LP PCI-E, also known by its product code R886R, is a network interface card (NIC) designed specifically for servers. The adapter can be installed on a server’s PCI Express slot to provide four Gigabit Ethernet ports, allowing the server to connect to multiple networks simultaneously. In this article, we will delve into the features, benefits, and specifications of the R886R Dell Pro 1000 VT Quad Port Server Adapter LP PCI-E.
Features and Benefits
The R886R Dell Pro 1000 VT Quad Port Server Adapter LP PCI-E has several features that make it a suitable choice for servers. One of its key features is its quad-port design, which allows for four Gigabit Ethernet connections. This means that a single server can connect to multiple networks at the same time, providing greater flexibility and redundancy in case of network failures.
Another feature of the R886R Dell Pro 1000 VT Quad Port Server Adapter LP PCI-E is its low-profile design. This means that the adapter is designed to take up less space in a server chassis, making it suitable for servers with limited space. Additionally, the adapter is compatible with both full-height and low-profile server chassis, providing greater flexibility in server design.
The R886R Dell Pro 1000 VT Quad Port Server Adapter LP PCI-E also supports Virtual Machine Device Queues (VMDq), which is a technology that allows multiple virtual machines (VMs) to share a single physical network interface card. This means that the adapter can be used to support multiple VMs running on a single server, without the need for additional NICs.
In terms of performance, the R886R Dell Pro 1000 VT Quad Port Server Adapter LP PCI-E supports speeds of up to 1 Gbps per port, providing fast and reliable connectivity for servers. The adapter also supports Intel I/O Acceleration Technology (IOAT), which is a hardware-based technology that offloads data processing tasks from the CPU to the adapter. This can help to reduce CPU utilization and improve overall server performance.
Specifications
The R886R Dell Pro 1000 VT Quad Port Server Adapter LP PCI-E has the following specifications:
- Four Gigabit Ethernet ports
- PCI Express 1.1 interface
- Low-profile design
- Supports Virtual Machine Device Queues (VMDq)
- Supports Intel I/O Acceleration Technology (IOAT)
- Supports IEEE 802.1Q Virtual LANs (VLANs)
- Supports IEEE 802.3x Flow Control
- Supports IEEE 802.3z Gigabit Ethernet standard
- Supports Wake-on-LAN (WoL) and Preboot Execution Environment (PXE)
- Compatible with Windows, Linux, and VMware operating systems
Compatibility
The R886R Dell Pro 1000 VT Quad Port Server Adapter LP PCI-E is compatible with a range of operating systems, including Windows, Linux, and VMware. The adapter comes with drivers for Windows and Linux, making it easy to install and configure on servers running these operating systems. For VMware environments, the adapter is supported by VMware ESX/ESXi 4.1 and later versions.
Installation
Installing the R886R Dell Pro 1000 VT Quad Port Server Adapter LP PCI-E is a straightforward process. To install the adapter, follow these steps:
- Turn off the server and unplug it from the power source.
- Open the server chassis and locate an available PCI Express slot.
- Remove the adapter from its packaging and insert it into the PCI Express slot.
- Secure the adapter in place by screwing it onto the server chassis.
- Close the server chassis and plug in the server to the power source.
General Information about the Dell R886R
- Manufacturer : Dell
- MPN : R886R
- Device Type : Network Adapter
- Number of Ports : 4
- Form Factor : Plug-In Card
- SKU: R886R
- Interface (Bus) Type : PCI Express X4
NETWORKING
- Connectivity Technology : Wired
- Data Link Protocol : GIGABIT Ethernet
- Data Transfer Rate : 1 GBPS
EXPANSION / CONNECTIVITY
- Interfaces : 4 X Network
- Compatible Slots : 1 X PCI Express X4
