Description

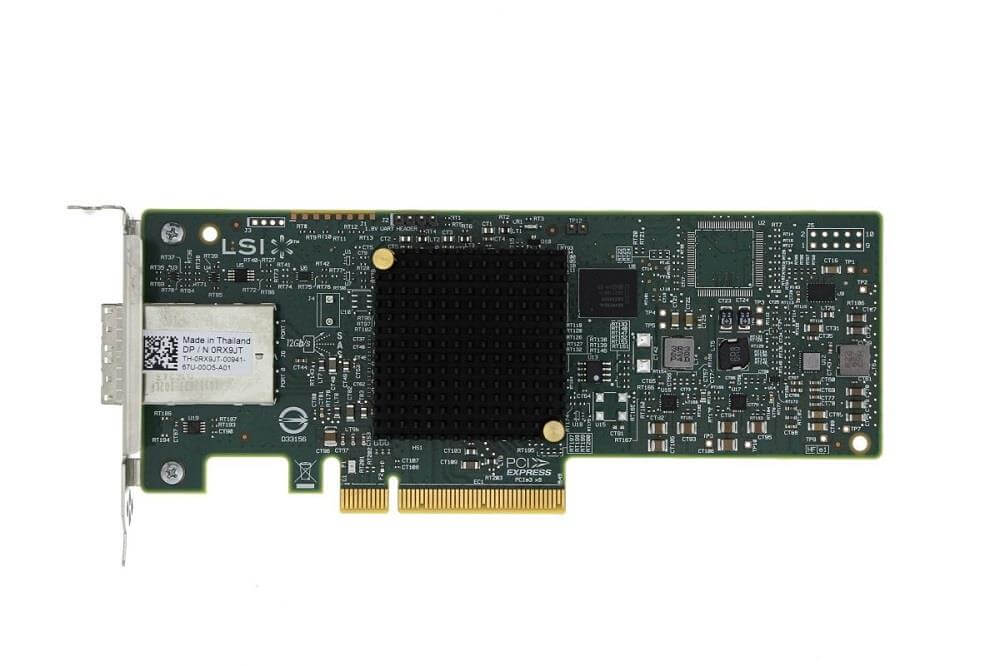

Product Details of the Dell RX9JT
RX9JT Dell 9300-8E 12GB/S 8 Port External PCI-Express 3.0 X8 SAS Controller is a hardware device used in computer systems to manage and control the flow of data between the computer and external storage devices. It is an advanced storage solution that enables high-speed data transfer rates and offers exceptional performance, reliability, and scalability.
In this article, we will explain the RX9JT Dell 9300-8E 12GB/S 8 Port External PCI-Express 3.0 X8 SAS Controller in detail, covering its features, benefits, and how it works.
SAS stands for Serial Attached SCSI, which is a computer bus interface used to connect storage devices to a computer. SAS Controllers are hardware devices that act as an interface between the computer and SAS storage devices. The controller manages the flow of data between the computer and storage devices, ensuring efficient data transfer and high-speed performance.
The RX9JT Dell 9300-8E 12GB/S 8 Port External PCI-Express 3.0 X8 SAS Controller is an advanced storage solution designed for high-performance computing environments. It is an external controller that connects to the computer system through a PCI-Express 3.0 X8 interface.
The RX9JT Dell 9300-8E 12GB/S 8 Port External PCI-Express 3.0 X8 SAS Controller provides eight external SAS ports, each capable of delivering data transfer rates of up to 12Gb/s. The controller supports SAS, SATA, and NVMe storage devices, enabling you to connect a wide range of storage devices to your computer system.
Features and Benefits
The RX9JT Dell 9300-8E 12GB/S 8 Port External PCI-Express 3.0 X8 SAS Controller comes with several features and benefits that make it an ideal storage solution for high-performance computing environments. Here are some of the key features and benefits of the RX9JT Dell 9300-8E 12GB/S 8 Port External PCI-Express 3.0 X8 SAS Controller:
- High-Speed Data Transfer
The RX9JT Dell 9300-8E 12GB/S 8 Port External PCI-Express 3.0 X8 SAS Controller supports data transfer rates of up to 12Gb/s, which is much higher than the SATA interface’s maximum transfer rate of 6Gb/s. This high-speed data transfer enables faster file transfers, faster backups, and quicker access to stored data.
- Support for Multiple Storage Devices
The RX9JT Dell 9300-8E 12GB/S 8 Port External PCI-Express 3.0 X8 SAS Controller supports SAS, SATA, and NVMe storage devices, enabling you to connect a wide range of storage devices to your computer system. This support for multiple storage devices enhances the controller’s flexibility and scalability, making it ideal for high-performance computing environments.
- Advanced Data Protection
The RX9JT Dell 9300-8E 12GB/S 8 Port External PCI-Express 3.0 X8 SAS Controller comes with advanced data protection features, including RAID support and data encryption. The RAID support allows you to configure your storage devices into a redundant array, ensuring that your data is protected against disk failure. The data encryption feature allows you to encrypt your data, ensuring that it is protected against unauthorized access.
General Information about the Dell RX9JT
- Manufacturer: Dell
- Model Number or SKU# RX9JT
- Product Type: SAS SATA Controller
Technical Information
- Host Bus Type X8 Lane PCI Express 3.0
- Physical Dimensions Low Profile (2.6″ X 6.0″)
- Devices Supported 1024 Non-Raid SAS/SATA Devices
- External Connectors 2 MINI-SAS HD SFF8644
- Fusion Mpt Support Fusion Mpt 2.5
- Operating Temperature 0°C To 55°C
- Operating Voltage (V) +12v +/-8%, 3.3v +/-9%
- Os Support Microsoft Windows, Linux (Suse , Red Hat), Solaris, Vmware , Freebsd See The Downloads Page For Details On Versions The Hba Supports Solaris 10 And Oracle Provides A Built In Driver. Installation Of An Lsi Driver Is Not Required.
- PCI Power 14.5w
- Cable Support Passive Copper, Active Optical
- I/O Controller LSI SAS3008
- Mtbf > 2,800,000 Hours
- Operating Humidity 5% To 90% Non-Condensing
- Data Transfer Rates 12GB/S SAS-3 Compliant
Contact us or ask for live chat/help if you have any questions about the compatibility of this item to ensure the model’s matching features with your current system.
