Description

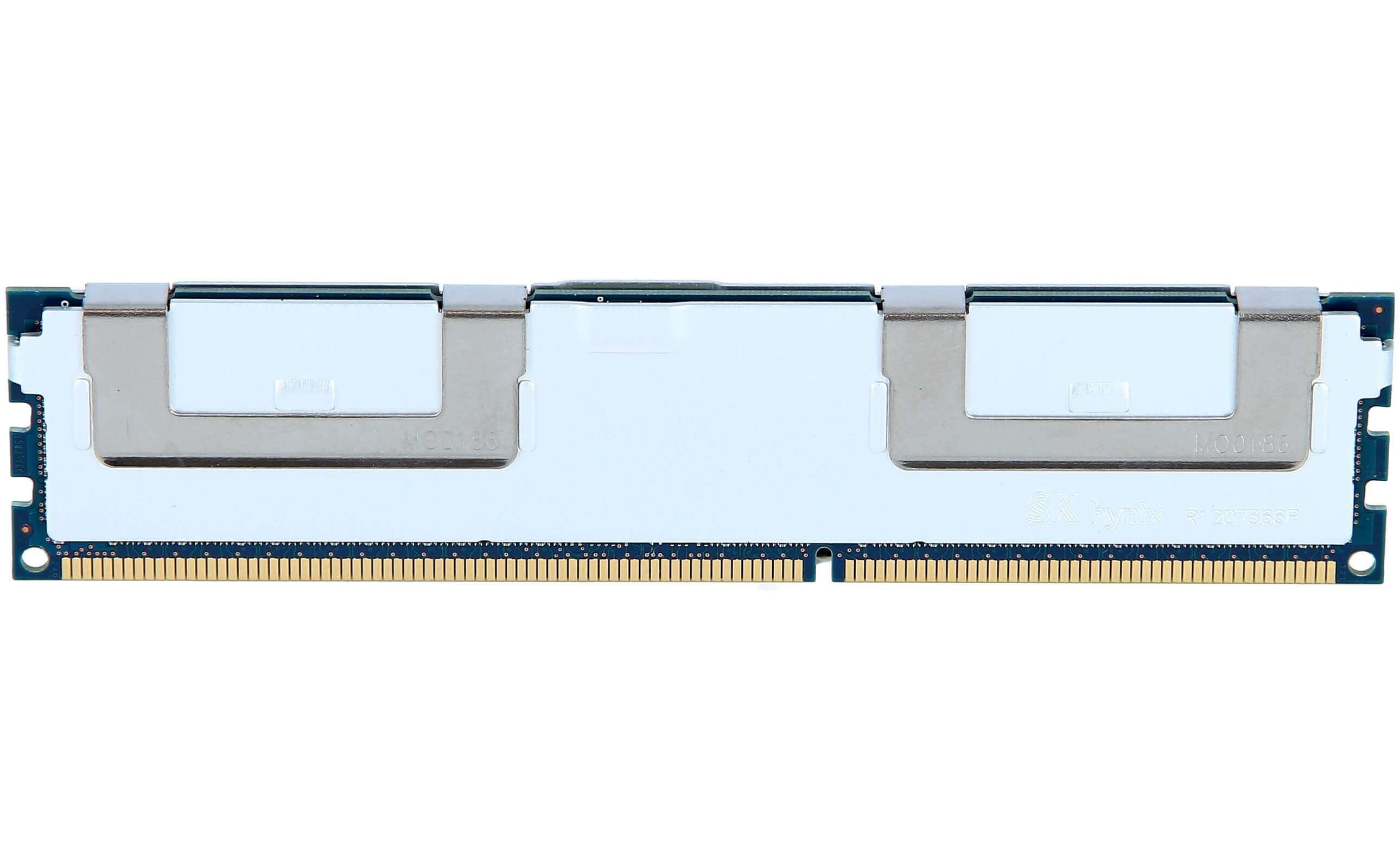

Overview of SNPCPC7GDG/32G Dell 32GB RAM
This is a type of memory module, specifically a 32GB DDR4 SDRAM (Synchronous Dynamic Random Access Memory) module, for use in a Dell computer. The module has a capacity of 32GB and operates at a speed of 2400 MHz (PC4-19200), this speed indicates how fast the memory can transfer data. It also has a CAS latency of 17, which refers to the delay time between the memory receiving a command and starting to execute it. The module is ECC (Error Correction Code) registered, which means it has an error correction mechanism that can detect and correct errors in the data stored in memory.
It is dual rank x4, meaning it has two sets of memory chips (ranks) and each rank is 4-byte wide. The module uses 288-pin R-DIMM (Registered Dual In-line Memory Module) form factor, This form factor is commonly used in servers or workstations, and it’s physically bigger than the other form factor (UDIMM) commonly used in desktop computers.
This memory module is specifically designed for use in Dell servers or workstations, and it’s compatible with systems that support DDR4 memory and R-DIMM form factor. By adding this memory module to the system, it will increase the system’s memory capacity and improve the system’s performance.
Error Correction and Data Integrity
Error Correction and Data Integrity refer to the measures taken to ensure that the data stored in memory is accurate and can be recovered in case of errors.
ECC (Error Correction Code) is a method of detecting and correcting errors in the data stored in memory. ECC memory uses an algorithm to calculate a code based on the data stored in memory, and this code is stored along with the data. When the data is read from memory, the code is recalculated, and if it does not match the stored code, it indicates that an error has occurred. The error can then be corrected by using the stored code to reconstruct the original data.
The ECC memory in this module is registered, which means it has a register between the memory controller and the memory modules. This register is used to buffer the data and control signals, and it helps to improve the performance and reliability of the memory.
Data Integrity refers to the ability of the memory module to accurately retain the data stored in it over time. The module’s design and the use of high-quality memory chips with built-in error-detection and correction features help to ensure the integrity of the data stored in the memory.
Power Efficiency and Heat Dissipation
Power efficiency and heat dissipation are important factors to consider when using memory modules, as they affect the performance and longevity of the module and the overall system.
Power efficiency refers to how much power the module consumes while it is in operation. DDR4 memory is generally more power efficient than DDR3 memory, which means it uses less power to perform the same tasks. This can result in lower energy costs and a reduction in heat generation.
Heat dissipation refers to how well the module is able to dissipate heat, or how quickly it is able to remove heat from the module. Heat can cause damage to the memory module and can negatively affect performance. The module has a heat spreader that helps to dissipate heat and keep the module cool. Heat spreaders are typically made of metal and are designed to increase the surface area of the module, which improves the ability to dissipate heat.
It’s worth noting that the power efficiency and heat dissipation of the memory module will also depend on the cooling system of the computer and the ambient temperature of the environment in which the computer is operating.
General Information
- Manufacturer: Dell
- Manufacturer Part Number: SNPCPC7GDG/32G
- Type: Memory (RAM)
- Sub-Type: PC4-19200
- Product Name: 32GB DDR4 SDRAM Memory Module
Technical Information
- Storage Capacity: 32GB
- Memory Technology: DDR4 SDRAM
- Number Of Modules: 1 X 32GB
- Bus Speed: 2400mhz DDR4-2400/PC4-19200
- Data Integrity Check: Ecc
- Signal Processing: Registered
- Cas Latency Timings: Cl17
- Rank Features: Dual Rank X4
- Voltage: 1.2v
