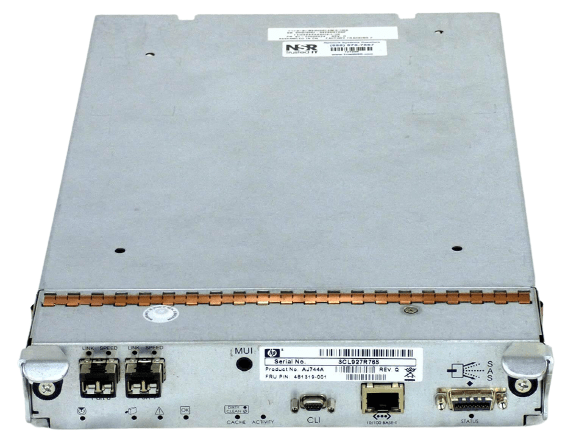

In the ever-evolving landscape of technology, storage solutions play a pivotal role in ensuring data integrity, accessibility, and performance. The 481319-001 HP StorageWorks MSA2000FC 1GB Cache SAS SATA 3GBPS Raid Controller Module stands out as a crucial component in storage setups, offering advanced features and capabilities. This comprehensive guide aims to delve into the intricacies of this RAID controller module, shedding light on its specifications, functionalities, and the benefits it brings to storage systems.
Understanding the Basics
The 481319-001 is a RAID (Redundant Array of Independent Disks) controller module designed by HP for integration into StorageWorks MSA2000FC systems. RAID technology is employed to enhance data protection, availability, and performance by distributing or replicating data across multiple hard drives. This specific module is equipped with a 1GB cache and supports both SAS (Serial Attached SCSI) and SATA (Serial ATA) interfaces at a data transfer rate of 3GBPS (Gigabytes per second).
Key Features
- 1GB Cache: The presence of a 1GB cache in the 481319-001 HP StorageWorks MSA2000FC RAID Controller Module is a standout feature. This cache acts as a high-speed buffer between the storage drives and the system, optimizing data transfer speeds and overall system performance. The cache is crucial for the temporary storage of frequently accessed data, reducing latency and improving response times.
- SAS and SATA Support: The module’s compatibility with both SAS and SATA interfaces provides flexibility in storage configurations. SAS is known for its high data transfer rates and reliability, making it suitable for mission-critical applications. SATA, on the other hand, is a cost-effective solution for less demanding storage needs. The ability to support both interfaces allows users to tailor their storage infrastructure based on specific performance and budgetary requirements.
- 3GBPS Data Transfer Rate: The 3GBPS data transfer rate ensures efficient communication between the RAID controller module and connected storage devices. This speed is particularly beneficial in scenarios where large volumes of data need to be accessed or transferred quickly. The high data transfer rate contributes to the overall responsiveness of the storage system, making it well-suited for environments with demanding workloads.
Functionalities and Performance
- RAID Configurations: The primary purpose of a RAID controller is to manage the data storage across multiple drives, providing redundancy and performance improvements. The 481319-001 supports various RAID configurations, including RAID 0, RAID 1, RAID 5, RAID 6, and RAID 10. Each RAID level offers a unique balance of data protection, capacity utilization, and performance, allowing users to choose the configuration that best aligns with their specific needs.
- Data Protection and Redundancy: RAID configurations such as RAID 1, RAID 5, and RAID 6 are designed to provide data protection and redundancy. In RAID 1, data is mirrored across two drives, ensuring that if one drive fails, the data is still available on the other. RAID 5 utilizes striping with parity, allowing for the recovery of data in case of a single drive failure. RAID 6, an extension of RAID 5, offers additional protection by allowing for the failure of two drives without data loss.
- Hot-Swapping Capability: The 481319-001 RAID Controller Module supports hot-swapping, a feature that enables the replacement of failed drives without shutting down the entire system. This capability enhances system availability and minimizes downtime, crucial factors in environments where continuous access to data is essential.
- Performance Optimization: With its 1GB cache and support for high-speed interfaces like SAS, the RAID controller module contributes significantly to performance optimization. The cache functions as a temporary storage buffer for frequently accessed data, reducing the need to fetch information directly from the slower storage drives. This, in turn, results in faster response times and improved overall system performance.
Benefits and Use Cases
- Improved Data Reliability: By implementing RAID configurations and providing features like hot-swapping, the 481319-001 HP StorageWorks MSA2000FC RAID Controller Module significantly improves data reliability. This is particularly crucial in business environments where data integrity and accessibility are paramount.
- Enhanced Performance: The combination of a 1GB cache and support for high-speed interfaces contributes to enhanced storage system performance. Reduced latency and faster data transfer rates make the module suitable for applications requiring quick access to large datasets, such as database management and data-intensive computing.
- Flexibility in Storage Configurations: The ability to support both SAS and SATA interfaces gives users the flexibility to tailor their storage configurations based on specific requirements. Whether it’s high-performance SAS drives for critical applications or cost-effective SATA drives for less demanding workloads, the 481319-001 accommodates diverse storage needs.
- Minimized Downtime: Hot-swapping capability minimizes downtime in the event of drive failures. This is particularly valuable in environments where continuous access to data is essential, such as enterprise servers and data centers. The ability to replace a failed drive without shutting down the entire system ensures uninterrupted operations.
Compatibility and Interoperability
The 481319-001 HP StorageWorks MSA2000FC 1GB Cache SAS/SATA 3GBPS Controller Module is designed to be compatible and interoperable with the HP StorageWorks MSA2000 family of storage systems. This includes the MSA2000fc, MSA2000i, and MSA2000sa models.
In terms of compatibility, the controller module is designed to work with SAS and SATA hard drives and solid-state drives (SSDs) with 3GBPS data transfer rates. It also supports both SAS and SATA hard drives, allowing for flexibility in terms of storage options.
The controller module is also compatible with various RAID levels, including RAID 0, 1, 5, 6, 10, 50, and 60. This allows for a variety of configuration options to meet the needs of different applications.
The controller module also includes a 1GB cache memory, which improves performance and data protection in the event of a disk failure.
In terms of interoperability, the controller module is designed to work seamlessly with other HP StorageWorks MSA2000 components, such as disk enclosures, power supplies, and fans.
General Information about this HP 481319-001
- Manufacturer: HP
- Part Number or SKU# 481319-001
- Product Type: SAS-SATA
- Product Name: StorageWorks Msa2000fc SAS Raid Controller
Technical Information for HP 481319-001 StorageWorks
- Controller Interface Type: Serial Ata-300 / SAS
- Data Transfer Rate: 300 MBps
- Buffer Size: 1 GB
- Supported Devices: Disk Array Raid
- Raid Level: Raid 0, Raid 1, Raid 3, Raid 5, Raid 6, Raid 10, Raid 50
Finally, the 481319-001 HP StorageWorks MSA2000FC 1GB Cache SAS SATA 3GBPS Raid Controller Module is a robust and versatile component that significantly enhances the capabilities of storage systems. With its advanced features, support for multiple RAID configurations, and compatibility with industry standards, this module is well-suited for a variety of applications, from enterprise-level data centers to small and medium-sized businesses. By prioritizing data reliability, performance optimization, and ease of integration, HP has crafted a RAID controller module that meets the evolving demands of modern storage solutions. As technology continues to advance, the 481319-001 remains a key player in ensuring the integrity, accessibility, and performance of critical data.
