Description
Power Consumption and Efficiency

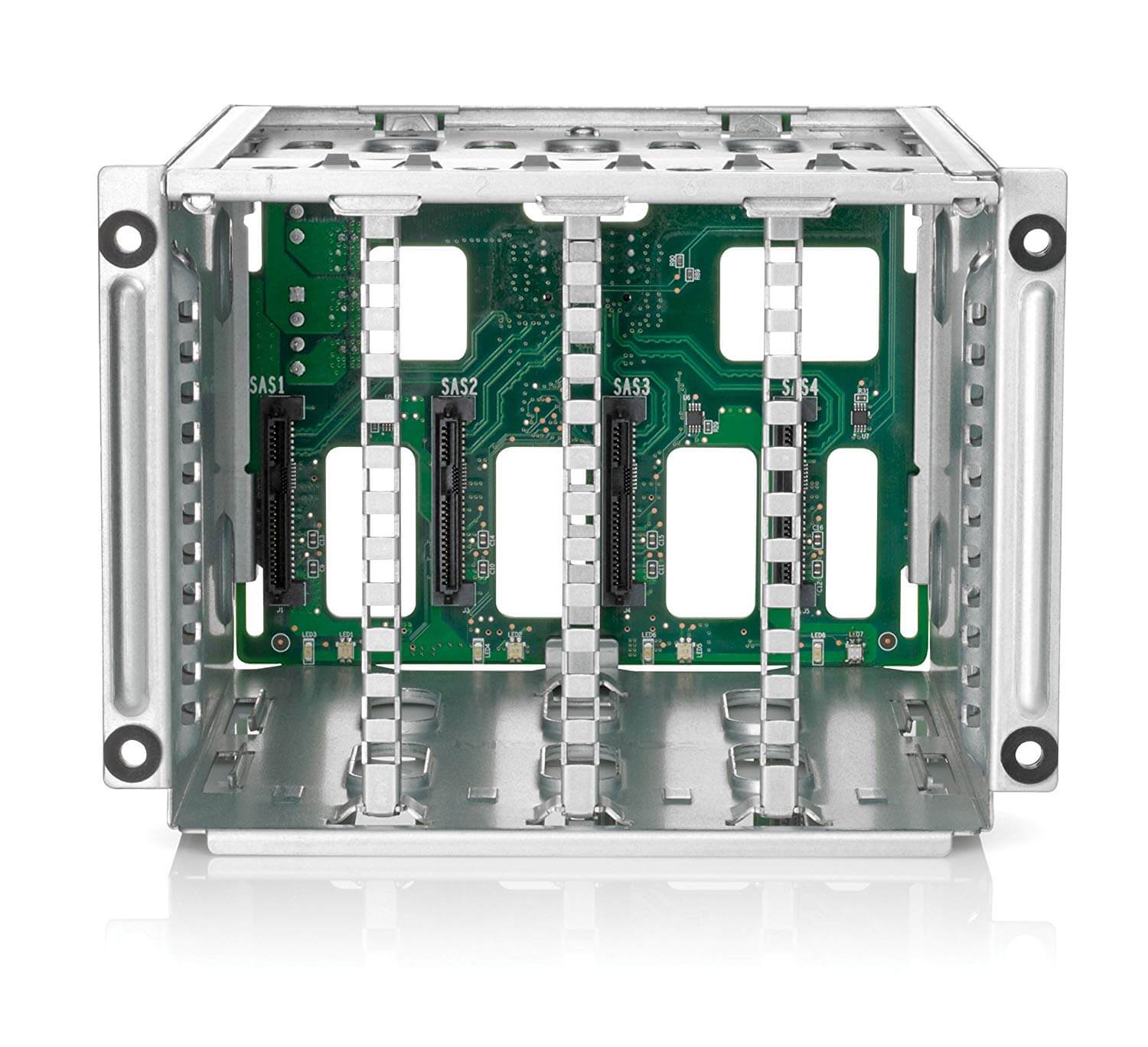

The 506927-B21 HP 2U G6 8HDD Cage FIO Kit for LFF HDD is a hardware component used in HP ProLiant server systems. It is a backplane for large form-factor (LFF) hard disk drives (HDD) and provides multiple data and power connections for up to 8 HDDs. The exact power consumption and efficiency of this kit will depend on a number of factors, including the type and number of HDDs installed and the operating conditions of the server system.
In general, the power consumption of a hard disk drive is determined by its capacity, speed, and operating conditions. The efficiency of the 506927-B21 HP 2U G6 8HDD Cage FIO Kit is determined by its design and the quality of the components used. HP is known for producing high-quality, efficient hardware components, so it can be assumed that this kit is designed to be energy-efficient.
It’s important to note that the total power consumption and efficiency of a server system is determined by all of its components, not just the hard drive cage. To get an accurate estimate of the power consumption and efficiency of a server system that includes the 506927-B21 HP 2U G6 8HDD Cage FIO Kit, it would be necessary to consider the specifications of all components and the operating conditions.
Easy Installation Process
Installing the 506927-B21 HP 2U G6 8HDD Cage FIO Kit for LFF HDD can be done in a few simple steps, but it is important to follow the instructions carefully to avoid damage to the equipment. Here is a general outline of the installation process:
- Prepare the server: Make sure the server is turned off and unplugged before starting the installation.
- Remove the server cover: Remove the screws on the cover and lift it off to access the internal components.
- Install the FIO kit: Locate the empty FIO bay in the server and insert the FIO kit into it. Make sure that the kit is securely connected to the backplane and all the necessary cables are properly attached.
- Install the drive cage: Slide the drive cage into the FIO kit, making sure that it is securely attached to the server.
- Connect the power and data cables: Connect the power and data cables to the drive cage and make sure that the connections are secure.
- Install the hard drives: Insert the LFF hard drives into the drive cage, making sure that they are securely seated in their slots.
- Replace the server cover: Replace the server cover and secure it with the screws.
- Power on the server: Turn on the server and verify that the hard drives are recognized by the operating system.
Improved Drive Performance and Reliability
The 506927-B21 HP 2U G6 8HDD Cage Fio KIT For Lff Hdd is designed to improve the drive performance and reliability of a server by providing a secure and reliable way to mount and connect large form factor (LFF) hard disk drives (HDD) in a 2U server form factor. The Fio (front input/output) kit includes a 2U G6 8HDD cage that can accommodate up to 8 LFF HDDs and a Fio cable that connects the drives to the server’s motherboard.
This kit enhances drive performance by providing a secure and reliable mounting mechanism for the HDDs, reducing the potential for mechanical damage and data loss due to movement or vibration. The Fio cable also helps improve drive performance by providing a direct connection between the drives and the motherboard, reducing data transfer time and increasing overall data transfer speed.
In terms of reliability, the 506927-B21 kit provides a secure and stable platform for the HDDs, reducing the potential for physical damage and data loss. The Fio cable also ensures a reliable and stable connection between the drives and the motherboard, reducing the potential for connectivity issues or data loss.v
General Information:
- Manufacturer Part Number: 506927-B21
- Brand Name: HP
