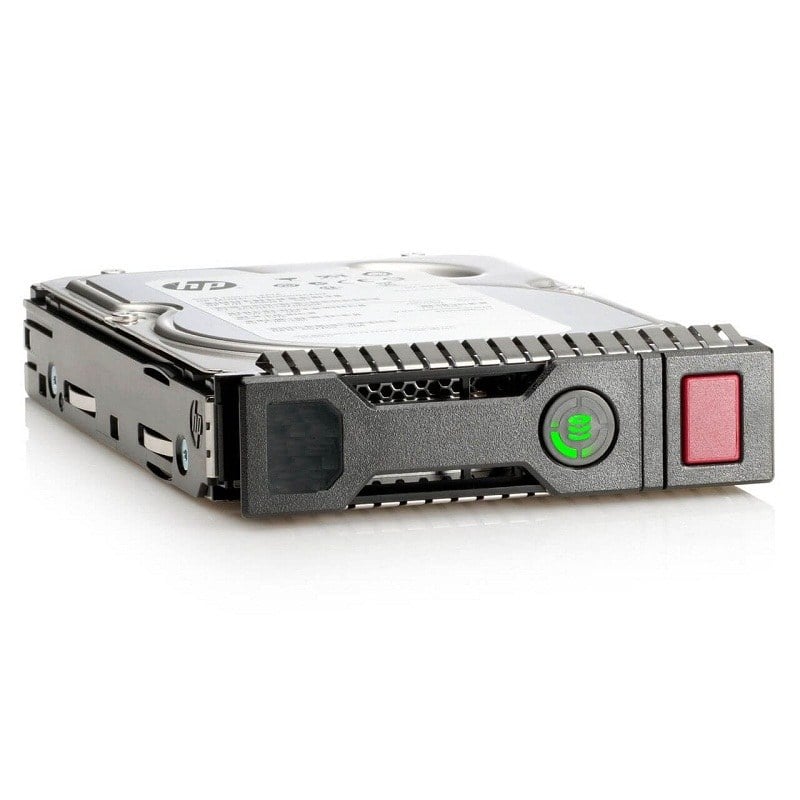

Overview of the HP 507284-001 300GB Hard Drive
In the dynamic world of enterprise storage solutions, the HP 507284-001 300GB SAS HDD stands out as a reliable and high-performance option. This hard disk drive (HDD) offers a substantial storage capacity of 300 gigabytes, operates at an impressive 10,000 revolutions per minute (RPM), and utilizes the Serial-Attached SCSI (SAS) interface with a data transfer rate of 6 gigabits per second (GBPS). This comprehensive guide aims to delve into the key features and specifications of the HP 507284-001, shedding light on its functionality, performance, and suitability for enterprise environments.
Key FeaturesStorage Capacity: 300GB
At the heart of the HP 507284-001 is its substantial storage capacity of 300 gigabytes. This ample space allows businesses and organizations to store and manage vast amounts of data, making it an ideal choice for applications with high storage requirements such as databases, virtualization, and data-intensive tasks.
Rotation Speed: 10,000 RPM
The HP 507284-001 operates at an impressive speed of 10,000 RPM. This high rotation speed contributes to faster data access and retrieval times, enhancing overall system performance. The increased RPM is particularly beneficial for applications that demand quick data access, such as transactional databases and real-time analytics.
Form Factor: 2.5-Inch
The compact 2.5-inch form factor of the HP 507284-001 makes it suitable for environments where space is a premium. This smaller form factor is commonly found in enterprise-class servers and storage arrays, allowing for efficient use of physical space within data centers.
Data Transfer Rate: 6GBPS
The HP 507284-001 boasts a data transfer rate of 6 gigabits per second (GBPS). This high-speed connectivity ensures efficient communication between the HDD and the host system, reducing latency and improving overall system responsiveness. The 6GBPS data transfer rate is particularly advantageous for data-intensive tasks and applications that require real-time data access.
Enterprise-Class Reliability
Designed with enterprise users in mind, the HP 507284-001 incorporates features that enhance reliability and durability. These include error correction capabilities, advanced error recovery mechanisms, and built-in data protection features. These attributes make it a suitable choice for mission-critical applications where data integrity and system uptime are paramount.
Dual Port Configuration
The dual-port configuration of the HP 507284-001 adds another layer of reliability and flexibility to its design. With dual ports, the HDD can establish redundant connections to the host system, ensuring continuous data access even in the event of a port or cable failure. This feature is crucial for maintaining seamless operations in enterprise environments where downtime is not an option.
Use Cases and ApplicationsEnterprise Servers
The HP 507284-001 is well-suited for enterprise server environments where performance, reliability, and scalability are essential. Its compact form factor allows for efficient use of server space, while the high RPM and data transfer rate cater to the demands of modern server workloads.
Storage Arrays
In storage arrays, the HP 507284-001 can contribute to creating high-performance and reliable storage solutions. The dual-port configuration and SAS interface make it compatible with various storage array architectures, providing flexibility for different deployment scenarios.
Data Centers
Data centers, with their stringent requirements for reliability and performance, can benefit from the HP 507284-001. Its compact size, high RPM, and dual-port configuration make it an ideal choice for data center environments where space optimization and continuous data availability are critical.
Virtualization
For virtualized environments, the HP 507284-001 offers the necessary performance to support virtual machines and applications. The high RPM ensures quick data access, while the dual-port configuration adds an extra layer of redundancy, contributing to the stability of virtualized infrastructures.
CompatibilityHot-Swappable Design
The HP 507284-001 features a hot-swappable design, allowing for the replacement of drives without shutting down the system. This feature is advantageous in enterprise environments where minimizing downtime is crucial for maintaining continuous operations.
Compatibility with HP Systems
As a product designed by HP, the 507284-001 is optimized for compatibility with a range of HP servers and storage solutions. This ensures seamless integration into existing HP infrastructure, simplifying the installation process for users leveraging HP hardware.
SAS Compatibility
The SAS interface of the HP 507284-001 enhances its compatibility with a wide range of SAS-enabled systems, including servers, storage arrays, and external storage solutions. This versatility makes it a suitable choice for enterprises employing diverse hardware configurations.
Performance Benchmarking
To assess the real-world performance of the HP 507284-001, various benchmark tests can be conducted. These tests may include measuring data transfer rates, input/output operations per second (IOPS), and latency. Benchmarking provides valuable insights into how the HDD performs under different workloads and can aid in determining its suitability for specific applications.
Maintenance and ReliabilityFirmware Updates
Regular firmware updates, provided by HP, are essential to ensure the optimal performance and reliability of the HP 507284-001. These updates may include bug fixes, performance enhancements, and additional features that contribute to the longevity of the HDD.
Monitoring Tools
HP offers monitoring tools that allow users to track the health and performance of the HP 507284-001. These tools can provide real-time insights into factors such as temperature, error rates, and overall system health, enabling proactive maintenance and minimizing the risk of unexpected failures.
RAID Configurations
Implementing RAID (Redundant Array of Independent Disks) configurations can further enhance the reliability and data protection capabilities of the HP 507284-001. By combining multiple HDDs in a RAID setup, users can achieve redundancy, fault tolerance, and improved overall system performance..
300GB Storage Capacity
The HP 507284-001 hard disk drive has a storage capacity of 300GB. This capacity is sufficient to store large amounts of data, including high-definition videos, images, and audio files. The 300GB capacity makes this hard disk drive suitable for use in enterprise-level applications where large amounts of data need to be stored and accessed quickly.
10000 RPM Spindle Speed
The spindle speed of a hard disk drive refers to the rate at which the platters inside the drive spin. The HP 507284-001 hard disk drive has a spindle speed of 10000 RPM, which means that the platters inside the drive rotate 10000 times per minute. This high spindle speed allows the drive to access data quickly, resulting in faster read and write speeds.
2.5inch Form Factor
The HP 507284-001 hard disk drive has a 2.5inch form factor. This means that the drive is smaller in size compared to traditional 3.5inch hard disk drives. The smaller size of the drive makes it suitable for use in servers, storage arrays, and other enterprise-level applications where space is limited.
Serial-Attached SCSI (SAS) Interface
The HP 507284-001 hard disk drive uses a Serial-Attached SCSI (SAS) interface. SAS is a high-speed data transfer protocol that is designed for enterprise-level applications. It provides faster data transfer rates and supports longer cable lengths compared to other interfaces such as SATA. The SAS interface is also more reliable and provides better error correction compared to other interfaces.
6 Gigabits Per Second (Gbps) Data Transfer Rate The HP 507284-001 hard disk drive has a data transfer rate of 6 gigabits per second (Gbps). This means that the drive can transfer data at a rate of 6 billion bits per second. The high data transfer rate of the drive allows for faster data access, resulting in improved system performance.
Enterprise Dual Port
The HP 507284-001 hard disk drive features an enterprise dual port. This means that the drive has two SAS ports that can be used simultaneously for data transfer. The dual port feature provides redundancy, which ensures that if one port fails, the other port can be used to access the data. This feature makes the drive suitable for use in enterprise-level applications where data access is critical.
With Tray
The HP 507284-001 hard disk drive comes with a tray. The tray is used to mount the drive in a server or storage array. The tray ensures that the drive is securely mounted and provides easy access to the drive when needed. The tray also provides better ventilation for the drive, which helps to keep the drive cool during operation.
Finally, the HP 507284-001 hard disk drive is a high-performance storage device designed for enterprise use. It features a capacity of 300GB, 10000 RPM spindle speed, a 2.5inch form factor, Serial-Attached SCSI (SAS) interface, and a data transfer rate of 6 gigabits per second (Gbps). The drive also features an enterprise dual port and comes with a tray for easy .These features make the HP 507284-001 hard disk drive suitable for use in enterprise-level applications where high
Genaral information of the HP SAS 6GBPS
- Manufacturer: HP
- Model Number or SKU# 507284-001
- Device Type: Hard Drive
- HDD Type: SAS-6GBPS
- Option Part Number: 507127-B21
- Spare Part Number: 618518-001
- Assembly Number: 507119-002
- Assembly Number: 518194-002
- Model Number: DG0300FAMWN
- Model Number: DG0300FARVV
- HP GPN: 507129-004
- HP GPN: 507129-003
Technical Information of 300GB 10K RPM Hard Disk
- Capacity: 300 GB
- Form Factor: 2.5 Inch SFF
- Interface: SAS 6GBPS
- Bytes per Sector: 512
- Drive Technology (Fill): Air
- Carrier Type: Standard Carrier
- Workload Type: Enterprise
- Plug Type: Hot Plug
- Features: Dual Port
- Bundled with: HP Standard Carrier
- Enclosure Type: Hot-Swap
Performance
- Drive Transfer Rate: 6 Gb/sec (external)
- Spindle Speed: 10000 rpm
- Average Seek Time: 4 ms
- Max Seek Time: 7.45 ms
- Track-to-Track Seek Time: 0.2 ms
Expansion & Connectivity
- Interfaces: 1 x SAS 6Gb/s (Serial Attached SCSI 2)
- Compatible Bays: 2.5 inch SFF
Environmental Parameters
- Max Operating Temperature: 35 °C
- Min Operating Temperature: 10 °C
Compatibility
- HP Integrity BL Series: BL860c i2, BL870c i2, BL890c i2 Servers
- HP ProLiant BL Series: BL460c G6, BL460c G7, BL465c G6, BL465c G7, BL620C G7, BL680c G7, BL685c G6, BL685c G7 Servers
- HP ProLiant ML Series: ML110 G7, ML350 G6, ML350 G6 Base, ML350 G6 Performance, ML370 G6, ML370 G6 Base, ML370 G6 Entry Servers
- HP ProLiant WS Series: WS460c G6 Workstation Blade
- HP Modular Smart Array: P2000 G3 FC MSA Dual Controller Virtualization SAN Starter Kit
- HP StorageWorks D2200sb PCIe Storage Blade
- HP StorageWorks Disk Enclosure D2700
- HP StorageWorks Modular Smart Array: 2324fc G2 Dual Controller, 2324sa G2 DL380 G6 Package Cluster, 2324sa G2 Dual Controller, 70 Dual Domain, P2000 2.5-in Drive Bay Chassis and P2000 G3 FC/iSCSI Dual Combo Controller SFF Array
- HP StorageWorks Network Storage Blade X1800sb G2
- HP StorageWorks Network Storage Gateway X3800sb G2
- HP StorageWorks Network Storage System: X1600, X1600 292GB SAS Model, X1600 3TB SAS Model, X1600 5.4TB SAS Model, X1600 7.5TB SAS Model, X1600 G2, X1800, X1800 2.4TB SAS Model, X1800 292GB SAS Model, X1800 3.6TB SAS Model and X1800 G2
In summary, the HP 507284-001 300GB SAS HDD stands out as a reliable and high-performance storage solution for enterprise environments. With its impressive storage capacity, high RPM, SAS interface, and dual-port configuration, it caters to the demands of modern data-intensive applications. Whether deployed in enterprise servers, storage arrays, data centers, or virtualized environments, the HP 507284-001 excels in providing the performance, reliability, and scalability required in today’s dynamic business landscape. As technology continues to evolve, the HP 507284-001 remains a viable choice for businesses seeking a robust and efficient storage solution.
