Description
Product Details

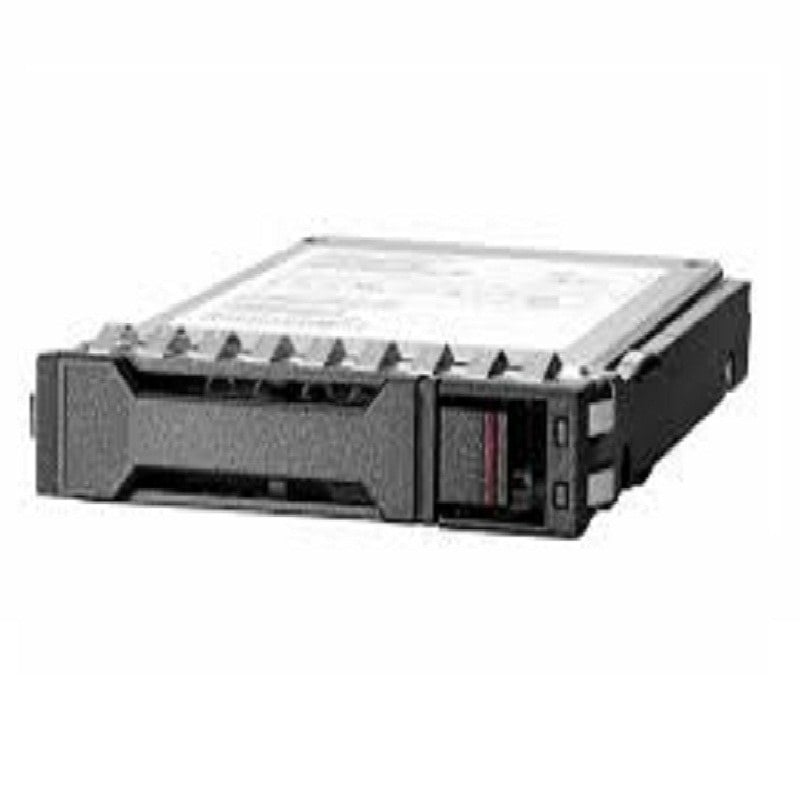

The 507632-B21 is a hard disk drive (HDD) made by Hewlett-Packard (HP) designed for use in servers. This HDD has a capacity of 2 terabytes (TB) and a rotational speed of 7200 revolutions per minute (RPM), making it ideal for storing large amounts of data and accessing it quickly. The drive uses a Serial Advanced Technology Attachment (SATA) interface with a transfer rate of 3 gigabits per second (Gbps) and a midline speed of 300 megabytes per second (MBPS). In this article, we will discuss the features and specifications of this HDD in more detail.
Capacity
The 507632-B21 HDD has a capacity of 2 terabytes (TB), which is equivalent to 2,000 gigabytes (GB) or 2,000,000 megabytes (MB). This capacity is ideal for servers that require a large amount of storage space for applications, databases, and other types of data. With 2 TB of storage, this HDD can store thousands of hours of video, millions of photos, or millions of documents.
Rotational Speed
The 507632-B21 HDD has a rotational speed of 7200 revolutions per minute (RPM). This speed is considered to be a standard for server HDDs and provides a balance between speed and reliability. With a rotational speed of 7200 RPM, this HDD can access data quickly, making it ideal for applications that require fast data access, such as databases and web servers.
Interface
The 507632-B21 HDD uses a Serial Advanced Technology Attachment (SATA) interface, which is a popular interface for connecting storage devices to a computer or server. The SATA interface has a transfer rate of 3 gigabits per second (Gbps), which is also known as SATA II. This transfer rate provides fast data transfer speeds between the HDD and the server, allowing data to be accessed quickly.
Midline Speed
The 507632-B21 HDD has a midline speed of 300 megabytes per second (MBPS). Midline speed refers to the average data transfer speed that can be achieved when reading or writing data to the HDD. With a midline speed of 300 MBPS, this HDD can quickly transfer data between the server and the storage device, making it ideal for applications that require fast data access.
Size
The 507632-B21 HDD has a form factor of 3.5 inches, which is the standard size for server HDDs. This size allows the HDD to be easily installed in a server or storage array, making it easy to add additional storage capacity to a server.
Finally, the 507632-B21 HDD is a high-capacity, high-speed hard disk drive designed for use in servers. With a capacity of 2 terabytes (TB) and a rotational speed of 7200 revolutions per minute (RPM), this HDD can store and access large amounts of data quickly. The SATA interface with a transfer rate of 3 gigabits per second (Gbps) and a midline speed of 300 megabytes per second (MBPS) allows for fast data transfer speeds between the HDD and the server. The form factor of 3.5 inches and the manufacturer, Hewlett-Packard (HP), make this HDD easy to install and a reliable choice for server storage.
Product Information about the HP 507632-B21
- Manufacturer: HP
- Model Number or SKU# 507632-B21
- Device Type: Hard Drive Internal
- HDD Type: SATA 3GBPS
Specifications
- Hard Drive Capacity: 2TB
- Form Factor: 3.5 Inch LFF
- Interface: SATA 3GBPS
- Spindle Speed: 7200 RPM
- External Data Transfer Rate: 300 MBPS
- Bytes per Sector: 512
- Seek Time: 8.5 MS (Average) /16.9 MS (Max)
Dimensions & Weight
- Width : 4 Inch
- Depth : 5.8 Inch
- Height : 1 Inch
- Weight : 1.52 LBS
Expansion & Connectivity
- Interfaces: 1 X Serial ATA-300 – 7 Pin Serial ATA
- Compatible Bays: 1 X Hot-Swap – 3.5 Inch X 1/3H
Environmental Parameters
- Min Operating Temperature: 50 °F
- Max Operating Temperature: 95 °F
Compatibility
- HP ProLiant DL Series: DL120 G6, DL120 G6 Base, DL120 G6 Performance, DL120 G7 (3.5 inch), DL120 G7 Base (3.5 inch), DL120 G7 Entry (3.5 inch), DL120 G7 Performance (3.5 inch), DL160 G6 (3.5 inch), DL160se G6 (3.5 inch), DL165 G6 (3.5 inch), DL165 G7 (3.5 inch), DL165 G7 Base (3.5 inch), DL165 G7 Entry (3.5 inch), DL180 G6 (3.5 inch), DL185 G5 (3.5 inch), DL320 G6 (3.5 inch), DL320 G6 Entry, DL320 G6 High Efficiency, DL320 G6 Performance, DL380 G7 (3.5 inch), DL385 G7 (3.5 inch)
- HP ProLiant ML Series: ML110 G7 (3.5 inch), ML110 G7 Performance, ML150 G6 (3.5 inch), ML150 G6 Base, ML150 G6 Performance, ML310 G5p (3.5 inch), ML330 G6 (3.5 inch), ML330 G6 Base (3.5 inch), ML350 G5 (3.5 inch), ML350 G5 Entry (3.5 inch), ML350 G6 (3.5 inch), ML350 G6 Base (3.5 inch), ML350 G6 Entry (3.5 inch), ML350 G6 Performance (3.5 inch)
Contact us or ask for live chat/help if you have any questions about the compatibility of this item to ensure the model’s matching features with your current system.
