Description

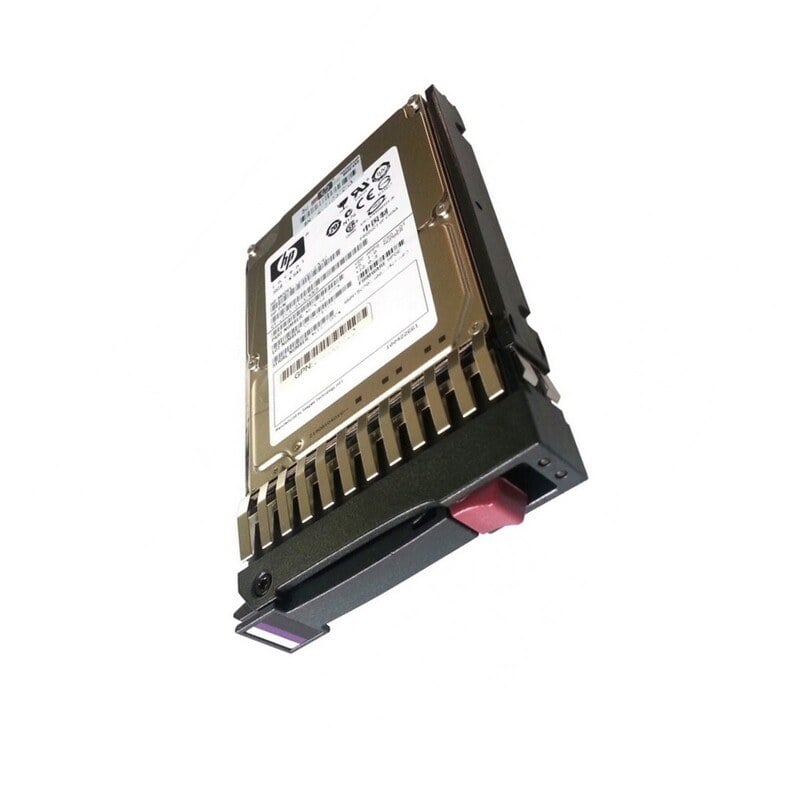

Overview of the HPE 516814-B21 Hard Disk
The HPE 516814-B21 is a type of enterprise hard disk drive (HDD) manufactured by Hewlett Packard Enterprise (HPE). It is specifically designed for use in enterprise-class server and storage systems, where reliability, performance, and capacity are critical.
Capacity
The HPE .516814-B21 has a capacity of 300 GB (Gigabytes). This is a significant amount of storage space, making it suitable for large-scale data storage and retrieval applications. It can store large amounts of data, including critical business data, applications, and multimedia files.
Speed
The HPE .516814-B21 has a rotational speed of 15000 Revolutions Per Minute (RPM). This is a high-speed HDD, which means it can access and transfer data quickly. The faster the rotational speed of the disk, the faster the data can be accessed and retrieved. This makes it an ideal choice for applications that require high-speed data access, such as database servers and other data-intensive applications.
Interface
The HPE .516814-B21 uses the Serial-Attached SCSI (SAS) interface to connect to the host system. The SAS interface is a high-speed, point-to-point data transfer protocol that provides fast and reliable data transfer between the HDD and the host system. This interface is widely used in enterprise-class server and storage systems, making the HPE .516814-B21 a compatible choice for these types of systems.
Data Transfer Rate
The HPE .516814-B21 has a data transfer rate of 6 Gigabytes per Second (GBPS). This is a fast data transfer rate, which means it can transfer large amounts of data quickly. The faster the data transfer rate of the disk, the faster the data can be transferred between the disk and the host system. This makes it an ideal choice for applications that require fast data transfer rates, such as data backup and recovery systems.
Form Factor
The HPE .516814-B21 has a form factor of 3.5 inches. This is a standard form factor for enterprise-class server and storage systems. The 3.5-inch form factor makes it easy to install the disk in a standard drive bay of a server or storage system.
Dual Port
The HPE .516814-B21 has a dual-port design, which means it has two SAS ports. This design provides redundancy and failover capabilities, which means if one port fails, the other port can take over without interruption. This makes the disk reliable and ensures that data can be accessed and retrieved even if one port fails.
Enterprise-Class
The HPE .516814-B21 is an enterprise-class HDD, which means it is designed for use in high-performance, mission-critical applications. It is built to withstand continuous use in demanding environments, making it reliable and durable. It also comes with advanced features, such as error correction codes (ECC), which help to prevent data loss and corruption.
Overall, the 516814-B21 is a high-performance, reliable, and durable enterprise-class HDD designed for use in demanding environments. It has a large capacity of 300 GB, a fast rotational speed of 15000 RPM, a fast data transfer rate of 6 GBPS, and a dual-port design for redundancy and failover capabilities. These features make it an ideal choice for applications that require high-speed data access, fast data transfer rates, and continuous operation.General Information about the HPE 516814-B21
- Manufacturer Name: HPE
- Model Number or SKU# 516814-B21
- Type: Hard Drive – Hot-Swap
- HDD Type: SAS 6GBPS
- Option Part Number: 516814-S21
- Spare Part Number: 517350-001
- Model Number: EF0300FATFD
- Assembly Part Number: 417192-004
Technical Information
- Capacity: 300 GB
- Form Factor: 3.5 inch LFF
- Interface: SAS
- Spindle Speed: 15000 RPM
Dimension and Weight
- Width: 4 Inch
- Depth: 5.8 Inch
- Height: 1 Inch
- Weight: 1.52 LBS
Expansion & Connectivity
- Interfaces: 1 x SAS
- Compatible Bays: 1 x Hot-Swap – 3.5 Inch LFF
Compatibility
- ProLiant DL Series: DL1000 DL120 (G5 G6 G7) DL140 (G3) DL145 (G3) DL160 (G5 G5p G6 G7) DL160se (G6 G7)
- ProLiant DL Series: DL165 (G5 G5p G6 G7) DL170e (G6) DL170h (G6) DL2x170h (G6) DL4x170h (G6)
- ProLiant DL Series: DL180 (G5 G6 G7) DL185 (G5) DL320 (G3 G4 G5 G5p G6 G7) DL320sDL370 (G6 G7)
- ProLiant DL Series: DL380 (G4 G5 G6 G7) DL385 (G5 G5p G6 G7) DL580 (G4 G5 G6 G7) DL585 (G2 G5 G6 G7)
- ProLiant DL Series: DL785 (G5 G6)
- ProLiant ML Series: ML110 (G7) ML150 (G5 G6 G7) ML310 (G5p) ML330 (G6) ML350 (G5 G6 G7) ML370 (G5 G6 G7)
- HP Storage arrays: D2600 MDS600 MSA60 P4300 P4500 P4000 (G2) 60 Modular Array StoreAll 9730
- HP StoreEasy: 1430 1440 1530 1540 1630 1640 1830 1840 5530 X1400 X1500 X1600 X1800 X3400 X3800
Contact us or ask for live chat/help if you have any questions about the compatibility of this item to ensure the model’s matching features with your current system.
