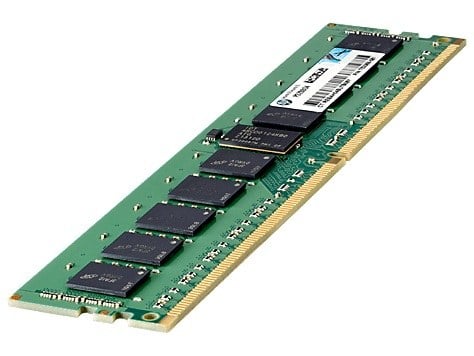

519201-001 is an 8GB memory module designed for servers, made by HP. This module features DDR3 SDRAM technology with a 240-pin DIMM form factor and a clock speed of 1066MHz. In this article, we will discuss the features and benefits of this module and its compatibility with various server models.
DDR3 SDRAM Technology
DDR3 SDRAM (Double Data Rate 3 Synchronous Dynamic Random-Access Memory) is a type of computer memory that is widely used in servers, desktops, and laptops. It provides faster data transfer rates, lower power consumption, and higher bandwidth compared to its predecessor, DDR2 SDRAM.
The key feature of DDR3 SDRAM is its ability to transfer data twice per clock cycle, hence the term “double data rate.” This means that it can transfer more data in a shorter amount of time, which makes it ideal for applications that require high-speed data transfer, such as gaming, video editing, and server applications.
240-Pin DIMM Form Factor
The 519201-001 module has a 240-pin DIMM form factor, which is the standard form factor for DDR3 SDRAM memory modules. The DIMM stands for Dual In-Line Memory Module, which means that the module has memory chips on both sides of the circuit board.
The 240-pin configuration means that the module has 240 pins on its connector edge, which is used to connect the module to the motherboard. The DIMM form factor is designed to provide high-speed data transfer and reliability, which is important for servers and other mission-critical applications.
Clock Speed
The clock speed of a memory module refers to the speed at which it can transfer data to and from the CPU. The 519201-001 module has a clock speed of 1066MHz, which means that it can transfer data at a rate of 1066 million cycles per second.
This clock speed is sufficient for most server applications, although some applications may require higher clock speeds for optimal performance. It is important to note that the clock speed of the memory module must be compatible with the clock speed of the CPU in order to achieve optimal performance.
Registered Memory Module
The 519201-001 module is a registered memory module, which means that it uses a register to buffer the address and command signals between the memory controller and the memory chips. This allows the module to support more memory modules per channel and provide better signal integrity, which is important for servers and other high-performance applications.
Compatibility with Server Models
The 519201-001 module is compatible with a wide range of server models, including HP ProLiant DL and ML series servers. It is important to check the compatibility of the module with your server model before purchasing it, as not all memory modules are compatible with all server models.
In summary, the 519201-001 8GB 1x8gb Pc3-8500 1066Mhz 240-Pin Dimm DDR3 SDRAM Registered Memory Module is a high-performance memory module designed for servers. It features DDR3 SDRAM technology, a 240-pin DIMM form factor, a clock speed of 1066MHz, and registered memory technology for better signal integrity.
This module is compatible with a wide range of server models, including HP ProLiant DL and ML series servers. If you are looking to upgrade the memory of your server, the 519201-001 module is a reliable and cost-effective option that can provide improved performance and reliability.
Main Specification about the HP 519201-001
- Manufacturer: HP
- Part Number or SKU# 519201-001
- Device Type: Memory (RAM)
- RAM Type: PC3-8500
- Product Name: 8GB DDR3 SDRAM Memory Module
Technical Information
- Storage Capacity: 8GB
- Memory Technology: DDR3 SDRAM
- Number Of Modules: 1 X 8GB
- Bus Speed: 1066mhz DDR3-1066/PC3-8500
- Signal Processing: Registered
- Platform Support: Proliant Server
- Form Factor: 240-Pin Dimm
Physical Characteristics
- Dimensions (W X D X H) : 8.89 X 19.81 X 1.91 Cm (3.5 X 7.8 X 0.75 In)
- Weight: 0.45 Kg (1 Lb)
Compatibility
- Proprietary Hp Proliant Server – Dl160 G6
- Proprietary Hp Proliant Server – Dl180 G6
- Proprietary Hp Proliant Server – Dl360 G6
- Proprietary Hp Proliant Server – Dl370 G6
- Proprietary Hp Proliant Server – Dl380 G6
- Proprietary Hp Proliant Server – Ml150 G6
- Proprietary Hp Proliant Server – Ml350 G6
- Proprietary Hp Proliant Server – Ml370 G6
- Proprietary Hp Proliant Server – Bl460c G6
- Proprietary Hp Proliant Server – Bl490c G6
Contact us or ask for live chat/help if you have any questions about the compatibility of this item to ensure the model’s matching features with your current system.
