Description
Troubleshooting and Technical Support of PCI Express Quad Card

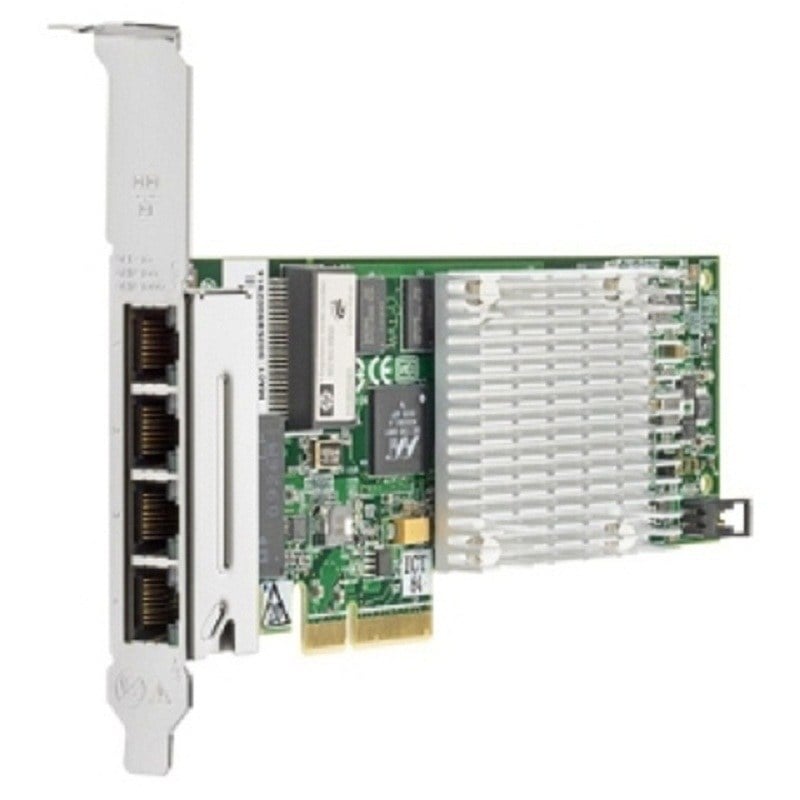

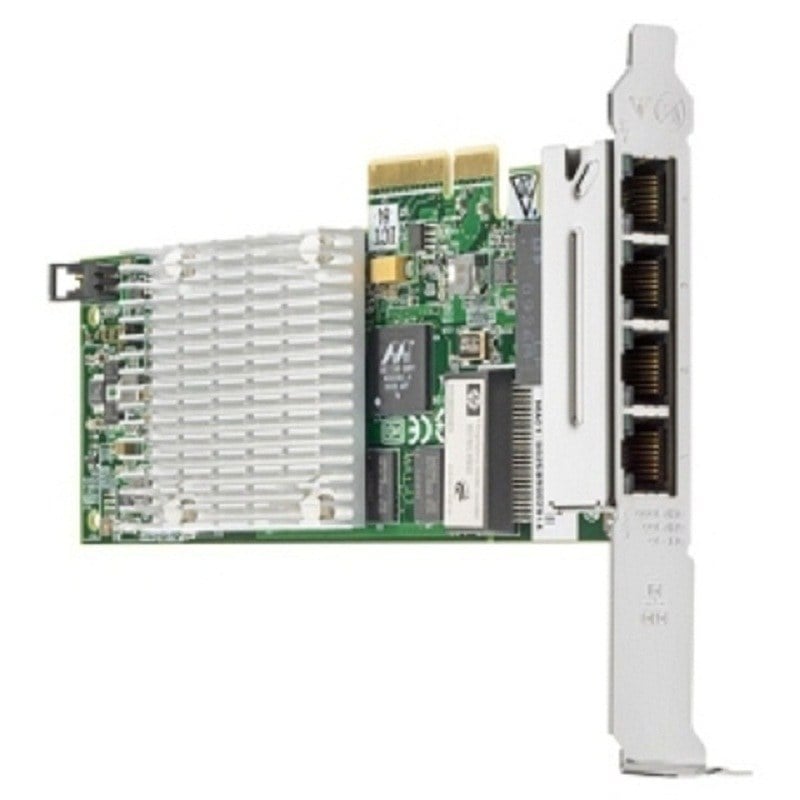

There are several steps you can take to troubleshoot and provide technical support for the HPE PCI Express Quad 4 Port Gigabit Network Card (539931-001):
- Check the card’s compatibility with your system. Make sure the card is supported by your server’s operating system and that it meets the necessary system requirements.
- Check the card’s installation. Make sure the card is properly seated in the PCI Express slot and that any necessary drivers or software have been installed.
- Check the network connections. Make sure the card is properly connected to the network and that the network cables are functioning correctly.
- Check the card’s status and configuration. Use the appropriate software or utilities to check the status and configuration of the card and ensure that it is functioning correctly.
- Check for updates or patches. Check for any software updates or patches that may be available for the card.
- Check the system logs and event viewer for any error messages related to the card
- If the problem persists, try a different PCI Express slot or reseat the card.
- If the problem still persists, contact HPE technical support for further assistance.
Power Consumption and Energy Efficiency
The 539931-001 HPE 4 Port Gigabit Network PCI Express Quad Card is a network card that can be installed in a computer to add four Gigabit Ethernet ports. The power consumption and energy efficiency of this card will depend on several factors, including the specific configuration of the computer in which it is installed, as well as the workload being run on the network. In general, network cards are relatively low-power devices and should not have a significant impact on the overall energy efficiency of a computer. However, if you’re looking to minimize power consumption, it’s always a good idea to use Energy Efficient Ethernet (EEE) supported devices and ensure that the card is configured for low-power mode when not in use.
Installation and Configuration
- Start by installing the HPE 4 Port Gigabit Network PCI Express Quad Card into an available PCI Express slot on your server or workstation.
- Once the card is securely seated, power on the system and log into the operating system.
- Open the Device Manager and look for the new network adapter under the Network Adapters category.
- Right-click on the new adapter and select Properties.
- In the Properties window, go to the Advanced tab and select the Speed/Duplex option.
- Set the Speed/Duplex to 1000Mbps Full Duplex.
- Click OK to save the changes and close the Properties window.
- Open the Network and Sharing Center and click on Change adapter settings.
- Right-click on the new adapter and select Properties.
- In the Properties window, go to the Internet Protocol Version 4 (TCP/IPv4) option and click Properties.
- Set the IP address, subnet mask, and default gateway for the adapter.
- Click OK to save the changes and close the Properties window.
- Restart the system to complete the installation and configuration of the HPE 4 Port Gigabit Network PCI Express Quad Card.
Detail Description
- Manufacturer: HP
- MPN: 539931-001
- Type: Networking
- NIC -Type: 4 Ports
- SKU: 539931-001
Networking
- Connectivity Technology : Wired
- Cabling Type : Ethernet 10base-T, Ethernet 100base-Tx, Ethernet 1000base-T
- Data Link Protocol : Ethernet, Fast Ethernet, Gigabit Ethernet
- Data Transfer Rate : 1 Gbps
- Features : Flow Control, Vlan Support, Tcp/Ip Offloading, Quality Of Service (Qos), Jumbo Frames Support
- Compliant Standards : Ieee 802.3, Ieee 802.3u, Ieee 802.1q, Ieee 802.3ab, Ieee 802.1p, Ieee 802.3x, Ieee 802.3ad (Lacp)
Expansion / Connectivity
- Interfaces : 4 X Network – Ethernet 10base-T/100base-Tx/1000base-T – Rj-45
- Compatible Slots : 1 X Pci Express 2.0 X4
Dimensions & Weight
- Width: 10.50 inch
- Depth : 8.25 inch
- Height : 1. inch
- Weight : 1 lbs
