Description

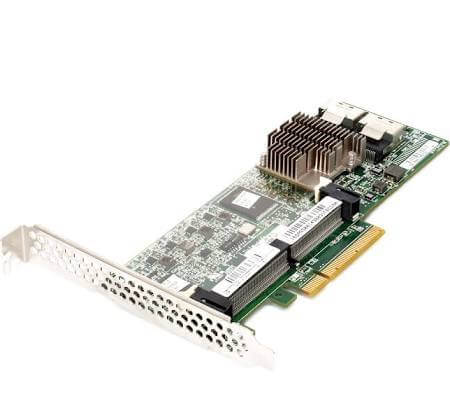

Product Overview of 610670-002 HP P420 6GBPS
The HP 610670-002 P420 6GBPS 2-Port Smart Array Internal PCI-E 3.0 X8 SAS Controller Card is a hardware device that is used to control and manage the data storage of a computer system. This card is designed to provide high-performance data transfer rates and support for multiple RAID levels. In this article, we will explain in detail the features and functions of this SAS controller card.
Overview of SAS Controller Card
The HP 610670-002 P420 SAS Controller Card is a high-performance, 6Gb/s SAS controller card that provides advanced RAID capabilities. It has two internal SAS ports and supports up to 32 SAS or SATA drives. This card is designed to work with PCI-E 3.0 X8 interface, which provides faster data transfer rates than its predecessors. The card can be used in a wide range of server and workstation platforms, including HP ProLiant and HP BladeSystem servers.
RAID Support
The SAS controller card supports various RAID levels, including RAID 0, RAID 1, RAID 5, RAID 6, RAID 10, and RAID 50. These RAID levels provide different levels of data protection, performance, and capacity. RAID 0 is the fastest RAID level, but it offers no data protection. RAID 1 provides data mirroring for protection, but it reduces the usable capacity by half. RAID 5 and RAID 6 provide data protection and offer a balance between performance and capacity. RAID 10 and RAID 50 provide the best performance and data protection but require more disk drives.
Cache Memory
The HP 610670-002 P420 SAS Controller Card has a built-in 1GB flash-backed write cache (FBWC) memory module. This cache memory provides high-speed data transfer rates and improves the overall performance of the system. The FBWC memory module helps to protect data in case of a power failure by providing a temporary storage area for data writes.
Management Software
The HP Smart Array management software is a powerful tool that enables users to manage and monitor the SAS controller card. The software provides features such as online array expansion, logical drive extension, and RAID level migration. The software also provides alerts and notifications for any issues with the SAS controller card. The HP Smart Array management software is available for download from the HP website.
Compatibility
The HP 610670-002 P420 SAS Controller Card is compatible with a wide range of operating systems, including Microsoft Windows, Linux, VMware, and Citrix XenServer. The card supports various server and workstation platforms, including HP ProLiant DL/ML/SL servers, HP BladeSystem servers, and HP Workstations.
Conclusion
The HP 610670-002 P420 SAS Controller Card is a high-performance hardware device that is used to control and manage the data storage of a computer system. It supports various RAID levels and provides advanced features such as cache memory and management software. The card is easy to install and is compatible with a wide range of operating systems and server platforms.
General Information about the Dell 610670-002
- Product Manufacturer : Dell
- Part Number or SKU# 610670-002
- Product Type : SAS Controller
Technical Information
- Smart Array P420 Controller Board
- PCIE X8 Low Profile SAS Controller
- Has Two Internal X8 Wide Mini-SAS Ports
- For Up To 6GB/Sec Transfer Rate For SAS And SATA
- Does Not Include Memory Or Backup Power
Contact us or ask for live chat/help if you have any questions about the compatibility of this item to ensure the model’s matching features with your current system.
