Description
Memory Capacity and Speed

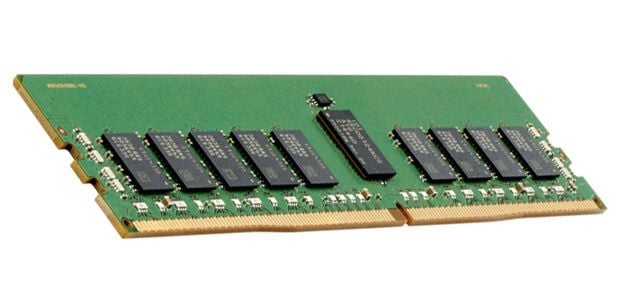

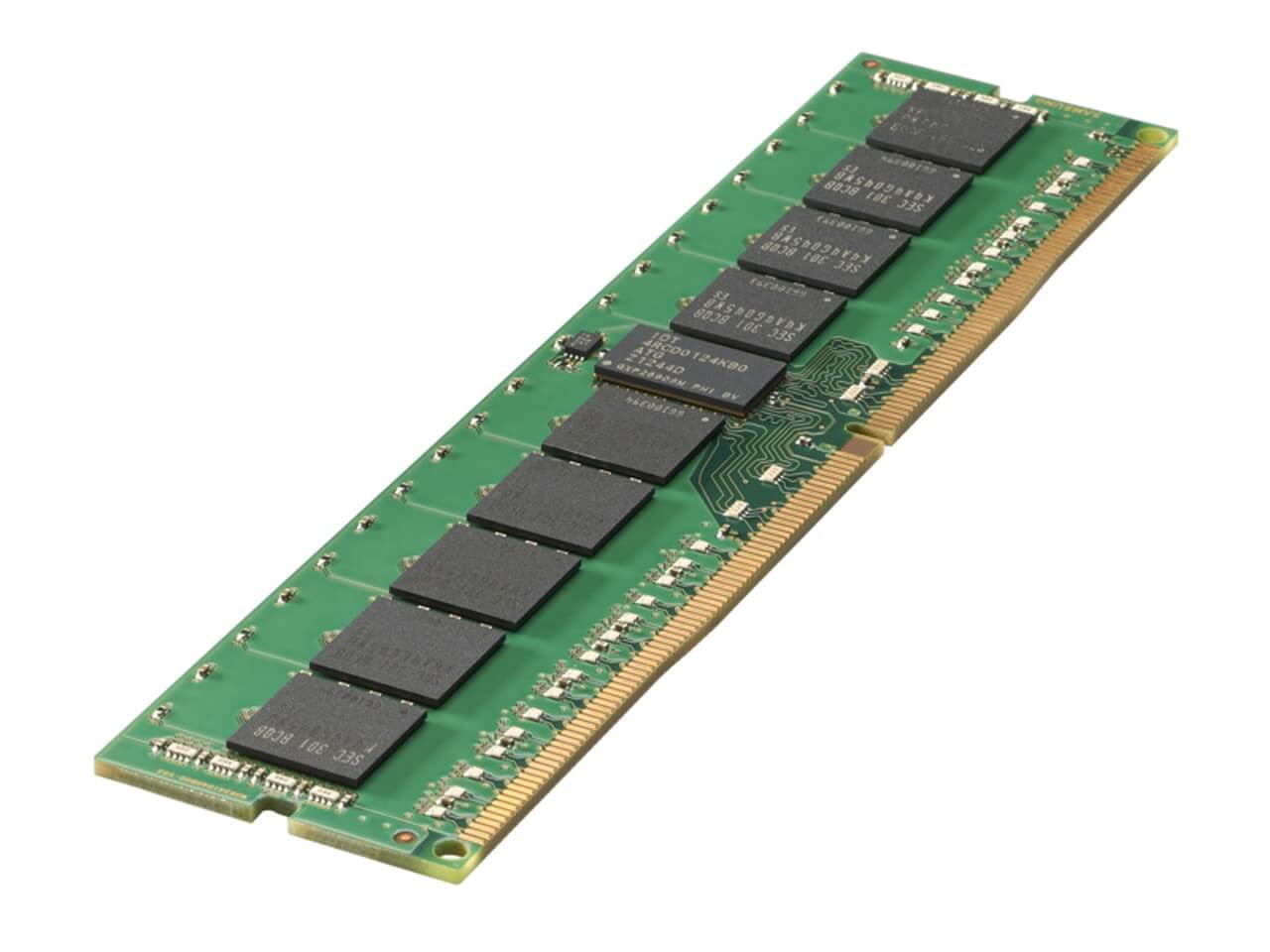

The 627814-S21 HP 32GB 1X32GB 1066MHZ PC3-8500 Cl7 Ecc Registered Quad Rank Low Voltage DDR3 SDRAM 240-Pin Dimm Genuine Memory has a total memory capacity of 32GB. This means that the memory module has 32 billion bytes of storage capacity, which can be used by the computer’s operating system and applications to store data.
The memory speed of this module is 1066MHz. This refers to the speed at which the memory can transfer data between the module and the computer’s central processing unit (CPU). A higher memory speed means that the computer will be able to access data stored in the memory more quickly, which can result in faster performance. This memory module’s speed is PC3-8500, it is a DDR3 SDRAM which is one of the type of memory that have been used in the past, it is not the fastest type of memory but it is still compatible with most of the computers. Additionally, the memory module is rated at CL7, which refers to the CAS Latency of the memory. A lower CAS Latency means that the memory will be able to respond more quickly to requests from the CPU, which can also result in improved performance.
Error Correction and Ranking
The 627814-S21 HP 32GB 1X32GB 1066MHZ PC3-8500 Cl7 Ecc Registered Quad Rank Low Voltage DDR3 SDRAM 240-Pin Dimm Genuine Memory module includes error correction technology, specifically “ECC” (Error Correcting Code). ECC is a method of detecting and correcting errors that may occur during the transfer of data between the memory and the CPU. ECC works by adding extra bits of information to the data being stored in the memory, which can be used to detect and correct errors. This feature is important in systems that require high levels of data accuracy, such as servers and scientific computing applications.
The module is also rated as “Registered Quad Rank” which refers to the way the module is organized internally. Registered memory has a register chip on the module which acts as a buffer for the memory controller, it allows for more memory to be installed on a single memory channel. Quad Rank refers to the number of memory banks or ranks on the module, A Quad Rank module has 4 memory banks. This configuration allows the memory controller to access more memory at once, which can improve performance in certain scenarios.
Voltage and Power Requirements
The 627814-S21 HP 32GB 1X32GB 1066MHZ PC3-8500 Cl7 Ecc Registered Quad Rank Low Voltage DDR3 SDRAM 240-Pin Dimm Genuine Memory module is rated as “Low Voltage.” This refers to the voltage required to operate the memory. A low voltage memory module requires less power to operate than a standard voltage memory module. This can help to reduce power consumption and heat generation in the computer, which can improve overall system performance and stability.
The specific voltage requirement for this module is 1.35V, which is lower than the standard voltage of 1.5V for DDR3 SDRAM. This lower voltage can help to reduce power consumption and heat generation in the computer, which can improve overall system performance and stability.
It is important to note that the power requirement of the memory module also depend on the motherboard and the configuration of the system, and it is recommended to check the specifications of the motherboard to ensure compatibility with this memory module.
General Information
- Brand Name: HP
- MPN: 627814-S21
- Type: Memory (RAM)
- RAM Type: PC3-8500
- Product Name: 32GB DDR3 SDRAM Memory Module
- Product Type: RAM Module
- SKU: 627814-S21
Technical Information
- Storage Capacity: 32GB
- Memory Technology: DDR3 SDRAM
- Number Of Modules: 1 X 32GB
- Memory Speed: 1066MHZ
- Memory Standard: DDR3-1066/PC3-8500
- Error Checking: ECC
- Features: Quad Rank, Low Voltage, Registered
- Chips Organization: X4
- Designed For: Proliant Server
- Form Factor: 240-pin Dimm
Physical Characteristics
- Dimensions (W X D X H) : 8.89 X 19.81 X 1.91 Cm (3.5 X 7.8 X 0.75 In)
- Weight: 0.45 Kg (1 Lb)
Compatibility
- Proprietary HP Proliant Server – X5650 Bl460c G7
- Proprietary HP Proliant Server – Bl460c G7,
- Proprietary HP Proliant Server – Bl490c G7,
- Proprietary HP Proliant Server – Bl620c G7,
- Proprietary HP Proliant Server – Bl680c G7,
- Proprietary HP Proliant Server – Dl360 G7,
- Proprietary HP Proliant Server – Dl370 G6,
- Proprietary HP Proliant Server – Dl380 G7,
- Proprietary HP Proliant Server – Dl580 G7,
- Proprietary HP Proliant Server – Ml370 G6,
- Proprietary HP Proliant Server – Sl390s G7
- HP Dl580r07
- HP Dl585 G7
- HP Proliant Dl980 G7
