Description
More Information on the HPE 665240-B21 Network Adapter

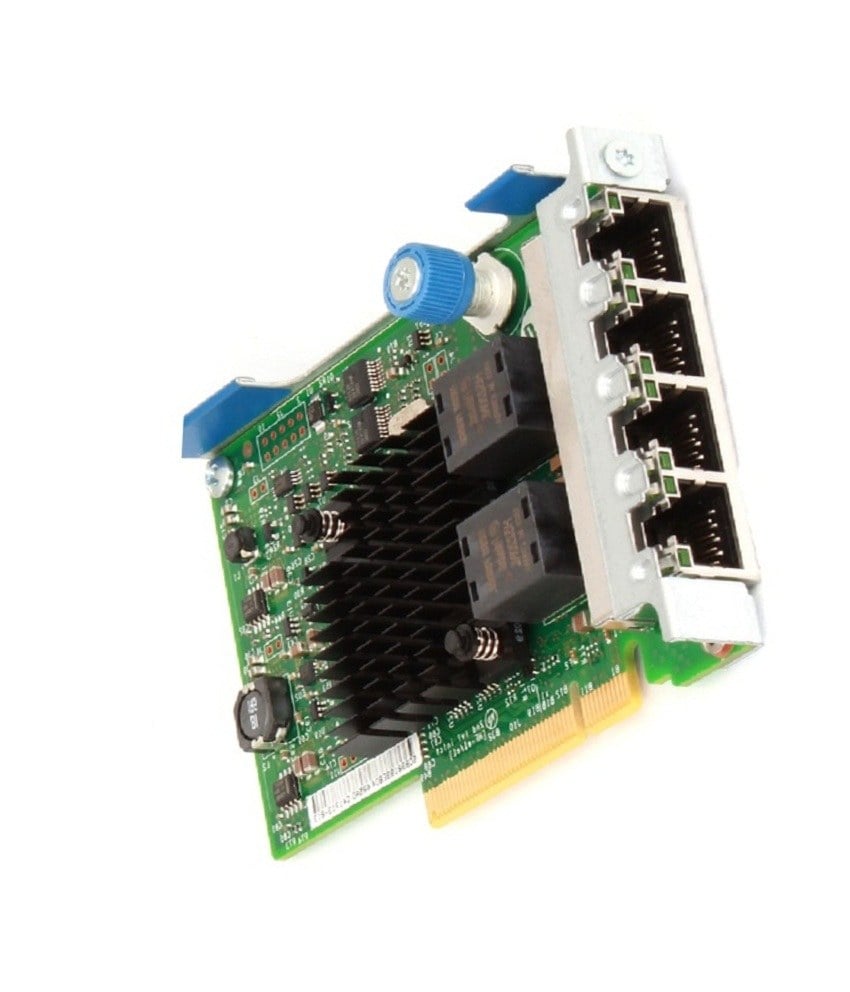

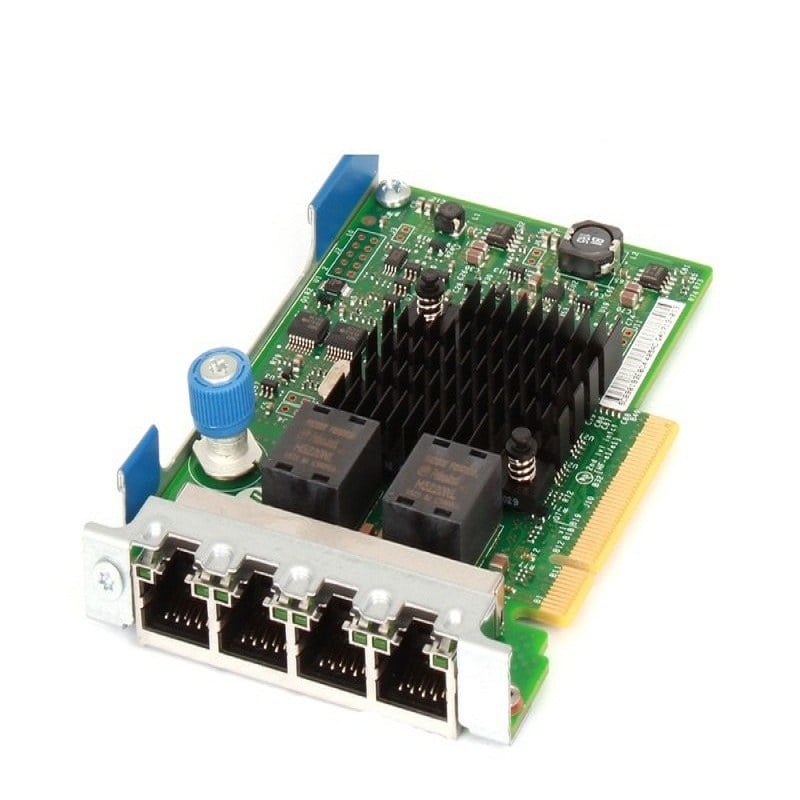

In the world of networking, having a reliable and high-performance network adapter is crucial. The HPE 665240-B21 Quad-Ports RJ-45 Gigabit Ethernet Network Adapter stands out as a powerful solution designed to meet the demands of modern networking environments. This comprehensive guide will delve into the various aspects of this network adapter, from its features to its applications and benefits.
Key Features
- Quad-Ports RJ-45: The HPE 665240-B21 comes equipped with four RJ-45 ports, providing a versatile connectivity solution. These ports support various Ethernet standards, including 10Base-T, 100Base-TX, and 1000Base-T, making them adaptable to different network infrastructures.
- Gigabit Speeds: With Gigabit Ethernet capabilities, this network adapter delivers high-speed data transfer, reaching up to 1 gigabit per second (1Gbps). This is essential for handling bandwidth-intensive tasks, such as large file transfers, video streaming, and data backups.
- PCI-E 2.1 x4 Interface: The Peripheral Component Interconnect Express (PCI-E) 2.1 x4 interface ensures efficient communication between the network adapter and the computer’s motherboard. This interface standard is known for its high-speed data transfer capabilities, reducing latency and optimizing overall network performance.
Compatibility and System Requirements
- Versatility: One of the notable advantages of the HPE 665240-B21 is its compatibility with a wide range of systems. Whether it’s a server, workstation, or a dedicated network appliance, this network adapter seamlessly integrates into various environments.
- System Requirements: To fully leverage the capabilities of this network adapter, it’s important to ensure that your system meets the requirements. This includes having an available PCI-E 2.1 x4 slot on the motherboard and compatible drivers installed.
Performance and Reliability
- Optimal Network Performance: The HPE 665240-B21 excels in providing optimal network performance. Whether you’re running a data center, managing a corporate network, or handling large-scale computing tasks, the quad-ports and Gigabit Ethernet speeds ensure a smooth and responsive networking experience.
- Reliability: HPE is renowned for producing reliable hardware, and this network adapter is no exception. Built with quality components and tested for durability, it offers a stable and dependable networking solution.
Features and Benefits of the HPE 366FLR Adapter
The HPE 366FLR Network Adapter (part number 665240-B21) is a 4-port 1 Gb Ethernet adapter for the HP ProLiant server. Some of its features and benefits include:
- Flexible LOM (LAN on the motherboard) form factor: The adapter can be easily installed or removed from the server without opening the chassis, which makes it suitable for use in data center environments where serviceability is important.
- PCIe 2.1 interface: The adapter uses the PCIe 2.1 interface, which provides higher performance than earlier versions of the PCIe interface.
- Advanced software features: The adapter supports advanced software features such as TCP/IP Offload Engine (TOE), Large Send Offload (LSO) and Receive Side Scaling (RSS) to improve performance and reduce CPU utilization.
- Support for various operating systems: The adapter supports various operating systems such as Windows, Linux, and VMware.
- Low-profile and full-height bracket: The adapter comes with both low-profile and full-height brackets to allow it to be installed in a variety of server form factors.
- Quality of Service (QoS): The adapter supports Quality of Service (QoS) which is used to manage network bandwidth and optimize network performance.
- Energy Efficient Ethernet (EEE): The adapter supports Energy Efficient Ethernet (EEE) which helps to reduce power consumption during periods of low data activity.
Quality of Service Capabilities
Quality of Service (QoS) capabilities refer to the ability of a network adapter, such as the HPE 366FLR 1Gb PCIe 2.1 4 Port for ProLiant Network Adapter (665240-B21), to prioritize and manage network traffic to ensure that important or critical data is transmitted with minimal delay and interruption. This is achieved by assigning different priority levels to different types of traffic and allocating bandwidth accordingly.
The HPE 366FLR 1Gb PCIe 2.1 4 Port for ProLiant Network Adapter has several key QoS features:
- 802.1p Quality of Service (QoS) support: This allows traffic to be tagged with different priority levels so that important traffic can be given priority over less important traffic.
- Flow Control: This feature helps to prevent network congestion by allowing the network adapter to send a signal to other devices on the network to temporarily stop sending data. This allows the network adapter to catch up and prevents the network from becoming overwhelmed.
- Large Send Offload (LSO) and TCP/UDP Checksum Offload: These features help to reduce the workload on the host CPU by offloading some of the processing to the network adapter. This helps to improve overall network performance.
- Virtual Machine Device Queues (VMDq): This feature allows multiple virtual machines to share the same network adapter, while still maintaining separate queues for each VM. This helps to ensure that each VM gets the bandwidth it needs, even in a busy virtualized environment.
General Information about this HPE 665240-B21
- Manufacturer: HPE
- Part Number or SKU# 665240-B21
- Product Type: 4 Ports Adapter
- Product Name: Network Adapter
Networking
- Ports: Gigabit Ethernet x 4
- Connectivity Technology: Wired
- Cabling Type: Ethernet 10Base-T, Ethernet 100Base-TX, Ethernet 1000Base-T
- Data Link Protocol: 10Mb LAN, 100Mb LAN, GigE
- Data Transfer Rate: 1 Gbps
- Remote Management Protocol: SNMP
- Status Indicators: Link activity, port transmission speed
- Features: Jumbo Frames support, PXE support, Large Send Offload (LSO)
- Compliant Standards: IEEE 802.3, IEEE 802.3u, IEEE 802.1Q, IEEE 802.3ab, IEEE 802.3x, IEEE 802.3ad (LACP), IEEE 802.1as, IEEE 802.3az
Processor/Memory
- Processor: 1 x I350 – Intel
Expansion / Connectivity
- Interfaces: 4 x 1000Base-T – RJ-45
- Compatible Slots: 1 x FlexibleLOM
Miscellaneous
- Compliant Standards: UL, EN 61000-3-2, EN 61000-3-3, EN55024, EN55022 Class A, RoHS, FCC Part 15 A, ICES, VCCI V-3 Class A ITE
System Requirements
- OS Required: SuSE Linux Enterprise Server 11, Microsoft Windows Server 2008 R2, Microsoft Windows Storage Server 2008 Embedded, SuSE Linux Enterprise Server 10, Microsoft Windows Server 2008 Enterprise, Microsoft Windows Server 2008 Standard, Microsoft Windows Web Server 2008, Microsoft Windows Server 2008 Enterprise x64 Edition, Microsoft Windows Server 2008 Standard x64 Edition, Microsoft Windows HPC Server 2008, Microsoft Windows Server 2008 (32/64-bits), Microsoft Windows Small Business Server 2011 Essentials, Oracle Solaris 10, Microsoft Windows Small Business Server 2011, Red Hat Enterprise Linux 6.1, Red Hat Enterprise Linux 5.7, Microsoft Windows Server 2012
Environmental Parameters
- Min Operating Temperature: 32 °F
- Max Operating Temperature: 131 °F
- Humidity Range Operating: 10 – 90% (non-condensing)
In general, the HPE 665240-B21 Quad-Ports RJ-45 Gigabit Ethernet Adapter emerges as a robust and versatile networking solution. Its Quad-Ports configuration, compatibility with PCI-E 2.1 x4, and support for Gigabit Ethernet collectively make it a valuable asset for various networking scenarios. Whether deployed in enterprise settings, data centers, or small to medium-sized businesses, this adapter enhances network throughput, connectivity options, and overall reliability. As technology continues to advance, the HPE 665240-B21 stands as a testament to the importance of high-performance networking components in today’s interconnected world.
