Description
Overview of HP 32GB Memory

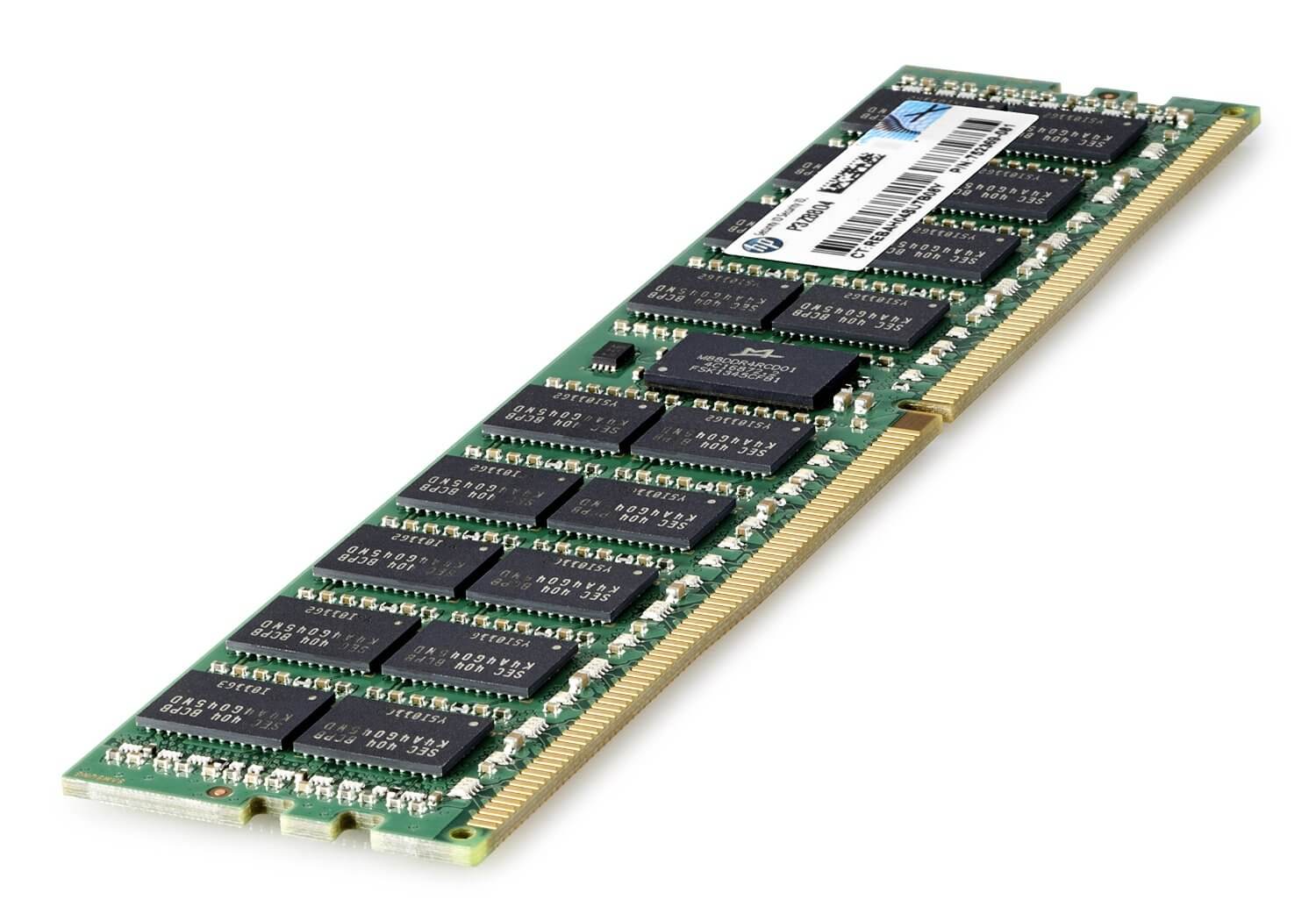

The Product Overview section for the HP 687466-001 memory module would provide a general description of the product and its key features. This memory module is a 32GB DDR3 SDRAM module, designed for use in high-performance computing systems such as servers. It is a Load Reduced DIMM (LRDIMM), which means it has a buffer chip on it that helps increase the memory capacity of a system and improve performance. It runs at a speed of 1333 MHz, with a PC3-10600 rating and a CAS latency of 9, which are standard specifications for DDR3 memory. It is also a quad rank module, which means it has four memory banks on a single module, which can also boost the performance. It has a voltage of 1.35V which is standard for DDR3 memory modules and it is a 240-pin LRDIMM, which is the standard form factor for DDR3 memory modules. This memory module is HP genuine memory, which ensures compatibility and reliability with HP systems. This product is intended for server use and it is a reliable and high-performance upgrade for high-end server systems.
Memory Speed and Timing
Voltage and Power Consumption
The Voltage and Power Consumption section of the HP 687466-001 memory module would provide detailed information about the voltage and power requirements of the module. The voltage required for this module is 1.35V, which is a standard voltage for DDR3 memory modules. This means that the memory module is designed to operate within a specific voltage range and that it will consume less power than a module that requires a higher voltage. Power consumption is an important consideration when choosing a memory upgrade for a high-performance computing system, such as a server, because it can have a significant impact on the overall power consumption and heat dissipation of the system. Lower power consumption can also lead to cost savings in terms of energy consumption and cooling requirements. It also important to note that LRDIMM modules tend to consume more power than standard DIMMs because they have a buffer chip on it that helps increase the memory capacity of a system and improve performance. In general, the HP 687466-001 memory module is designed to operate within a specific voltage range and to consume less power, which makes it a good choice for servers and high-performance computing systems that require high memory capacity and performance.
General Information
- Brand Name: HP
- MPN: 687466-001
- Type: Memory (RAM)
- RAM Type: PC3-10600
- Product Name: 32GB DDR3 SDRAM Memory Module
- SKU: 687466-001
Technical Information
- Storage Capacity: 32GB
- Memory Technology: DDR3 SDRAM
- Number Of Modules: 1 X 32GB
- Bus Speed: 1333mhz DDR3-1333/PC3-10600
- Data Integrity Check: Ecc
- Signal Processing: Buffered
- Cas Latency: Cl9
- Platform Support: Proliant Server
- Number Of Pins: 240-Pin
Physical Characteristics
- Dimensions (W X D X H) : 8.89 X 19.81 X 1.91 Cm (3.5 X 7.8 X 0.75 In)
- Weight: 0.45 Kg (1 Lb)
Compatibility
- Bladesystem Proliant Server Blades:
- HP Proliant Bl465c Gen8 Server Series
- HP Proliant Dl Servers:
- HP Proliant Dl385p Gen8 Server Series
