Description
Product Details

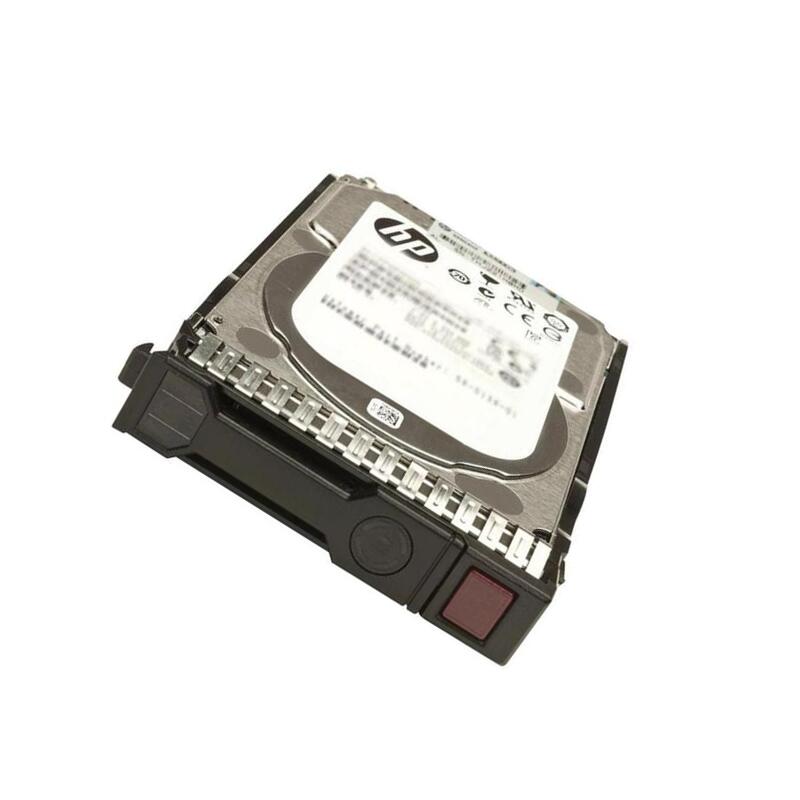

The HP 697631-001 is an internal hard drive that can be used in a desktop or server. It offers a capacity of 1.2TB, which is sufficient for storing large amounts of data. This drive is designed for enterprise-level use and offers a fast speed of 10,000 RPM. It uses a SAS interface and offers a cache size of 64MB.
Capacity
The HP 697631-001 offers a capacity of 1.2TB. This means that it can store a large amount of data, including files, documents, images, videos, and more. This makes it ideal for use in enterprise-level applications where large amounts of data need to be stored.
Speed
The HP 697631-001 offers a fast speed of 10,000 RPM. This means that it can access data quickly, which is important for enterprise-level applications where time is of the essence. The fast speed also means that the drive can handle multiple tasks simultaneously without slowing down.
Interface
The HP 697631-001 uses a SAS interface. SAS stands for Serial Attached SCSI, which is a type of interface used for connecting hard drives to servers and other storage devices. SAS offers a high level of reliability, which is important for enterprise-level applications. It also offers a fast data transfer rate of up to 6Gbps, which ensures that data is transferred quickly and efficiently.
Cache
The HP 697631-001 offers a cache size of 64MB. A cache is a small amount of memory that is used to temporarily store data that is frequently accessed. This helps to speed up the performance of the drive, as the data can be accessed quickly without having to be retrieved from the main storage area. The 64MB cache size of the HP 697631-001 is sufficient for most enterprise-level applications.
Compatibility
The HP 697631-001 is compatible with a range of desktops and servers. However, it is important to ensure that the drive is compatible with the system before purchasing it. Compatibility can be checked by consulting the manufacturer’s specifications or by contacting the manufacturer directly.
Reliability
The HP 697631-001 is designed for enterprise-level use, which means that it offers a high level of reliability. It is built to withstand heavy usage and offers a mean time between failures (MTBF) of up to 1.6 million hours. This means that the drive is unlikely to fail, even with continuous use over an extended period of time.
Finally, the HP 697631-001 is a high-quality internal hard drive that offers a capacity of 1.2TB, a fast speed of 10,000 RPM, a SAS interface, and a cache size of 64MB. It is designed for enterprise-level use and offers a high level of reliability. It is compatible with a range of desktops and servers, but it is important to check compatibility before purchasing. Overall, the HP 697631-001 is an excellent choice for businesses and organizations that require a fast and reliable internal hard drive.
General Information about this HP 697631-001
- Manufacturer: HP
- Part Number or SKU# 697631-001
- Product Type : Hard Disk Drive
- Interface Type: SAS 6GBPS
Technical Information for 1.2TB Hard Disk Drive
- Storage Capacity: 1.2TB
- Maximum External Data Transfer Rate: 768 MBPS (6 GBPS)
- Rotational Speed: 10K RPM
- Drive Interface: SAS
- Drive Interface Standard: 6GB/S SAS
- Seek Time: 4.6 ms (average) / 8.9 ms (max)
- Track-to-Track Seek Time: 0.3 ms
Expansion & Connectivity of SAS 6GBPS Hard Disk
- Interfaces: 1 x Serial Attached SCSI 2
- Compatible Bays: 1 x hot-swap – 2.5inch SFF
Dimension and Weight for 10KRPM Hard Drive
- Width: 2.8 Inch
- Depth: 3.9 Inch
- Height: 0.6 Inch
- Weight: 0.50 Lbs
Environmental Parameters
- Min Operating Temperature: 50 °F
- Max Operating Temperature: 95 °F
Compatibility
- HP ProLiant DL Series: DL320e Gen8 (2.5 inch), DL320e Gen8 Base (2.5 inch), DL320e Gen8 Entry (2.5 inch), DL320e Gen8 Performance (2.5 inch), DL385p Gen8 (2.5 inch), DL385p Gen8 Dedicated Workload (2.5 inch), DL385p Gen8 Entry (2.5 inch), DL385p Gen8 Maximized Consolidation (2.5 inch), DL385p Gen8 Storage (2.5 inch)
- HP ProLiant ML Series:ML310e Gen8 (2.5 inch), ML310e Gen8 Base (2.5 inch), ML310e Gen8 Entry (2.5 inch), ML310e Gen8 Performance (2.5 inch), ML350p Gen8 (2.5 inch)
- HP ProLiant ML Series:SL250s Gen8 Left Tray (2.5 inch), SL250s Gen8 Right Tray (2.5 inch), SL270s Gen8 1U Left Half Width Tray (2.5 inch), SL270s Gen8 1U Right Half Width Tray (2.5 inch)
Contact us or ask for live chat/help if you have any questions about the compatibility of this item to ensure the model’s matching features with your current system.
