Description

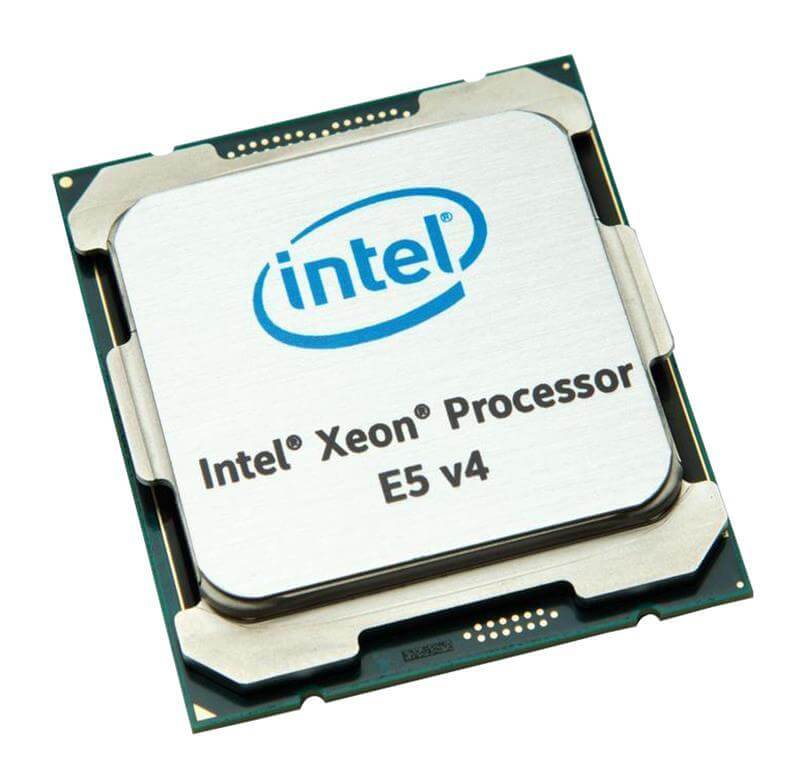

Product overview of the HP 863528-B21
The 863528-B21 HP Intel Xeon E5-2667V4 processor is designed for use in the HPEZ CL G3 server. This processor boasts 8 cores with a clock speed of 3.2GHz and 25MB L3 cache. It also features a high-speed QPI connection and operates at 135 watts. In this article, we will delve deeper into the technical specifications and features of this processor.
Processor Architecture
The Intel Xeon E5-2667V4 processor is based on the Broadwell microarchitecture and is built on a 14nm manufacturing process. This processor has a TDP of 135 watts and features 8 cores with 16 threads, which makes it capable of handling demanding applications such as virtualization, high-performance computing, and database management.
Clock Speed and Cache
The processor has a base clock speed of 3.2GHz, which can be boosted up to 3.6GHz with Intel Turbo Boost Technology 2.0. This boost in clock speed allows the processor to perform at an even higher level when required. The processor also has a large 25MB L3 cache, which is used to store frequently accessed data, improving the overall performance of the system.
QPI Speed and Socket Type
The processor uses a high-speed QPI (Quick Path Interconnect) connection, which allows for faster data transfer between the processor and other components in the system, such as memory and PCIe devices. This QPI connection operates at a speed of 9.6GT/s, which is faster than the previous generation of processors.
The processor uses the FCLGA 2011 socket, which is designed specifically for server systems. This socket type supports dual-channel DDR4 memory and can accommodate up to 768GB of RAM. This makes it possible for the server to handle large amounts of data and run multiple applications simultaneously.
Compatibility
The 863528-B21 HP Intel Xeon E5-2667V4 processor is designed for use in the HPEZ CL G3 server, which is a high-performance server designed for enterprise-level applications. The processor is compatible with other components in the server, such as the motherboard, memory, and storage devices.
Finally, the 863528-B21 HP Intel Xeon E5-2667V4 processor is a high-performance processor designed for use in the HPEZ CL G3 server. It features 8 cores with a clock speed of 3.2GHz, 25MB L3 cache, and a high-speed QPI connection. The processor is compatible with other components in the server and is capable of handling demanding applications such as virtualization, high-performance computing, and database management.
General Information
- Product type : server processor
- Product manufacturer : HP
- Part Number or SKU# 863528-B21
- Product model : E5-2667V4
Technical Information
- Processor core : 8-core
- Clock speed : 3.2GHz
- Max turbo frequency : 3.6GHz
- Quick path interconnect(QPI) speed : 9.6GT/S
- No of QPI links: 2
- Instruction set : 64-bit
- Instruction set extensions : AVX 2.0
- CACHE MEMORY DETAIL :
- • L3 cache : 25MB
- Lithography : 14NM
- Max thermal design power (TDP) : 135W
- Compatible processor socket : FCLGA2011
