Description
Noise and Vibration Levels
Noise and vibration levels refer to the amount of sound and physical movement generated by a hard drive during its operation. When a hard drive spins its disks, it creates vibrations that can be felt and heard. The sound and vibration levels of a hard drive can vary based on several factors, including the rotational speed of the disks, the number of disks, the size and weight of the disks, the amount of data being accessed, and the design of the hard drive.
The noise level of a hard drive is measured in decibels (dB), with lower numbers indicating less noise. In general, hard drives with slower rotational speeds and fewer disks will produce less noise. Noise levels can also vary depending on the location and mounting of the hard drive. For example, hard drives that are mounted in a server rack may be louder due to the increased vibrations from nearby hardware.
Vibration levels are measured in terms of acceleration, usually in units of G (gravity). Hard drives with higher vibration levels may be more prone to failure or errors due to the stresses placed on the drive components. Therefore, hard drive manufacturers often take measures to reduce vibration levels, such as adding shock absorbers or using low-vibration motors.
Understanding the Ultra-320 SCSI Interface
Ultra-320 SCSI (Small Computer System Interface) is a high-speed interface technology used for connecting computer storage devices such as hard drives, tape drives, and optical drives. It is a type of SCSI interface that operates at a maximum data transfer rate of 320 megabytes per second (MB/s), which is significantly faster than earlier SCSI versions.
The Ultra-320 SCSI interface uses an 80-pin connector and supports both single-ended and low-voltage differential (LVD) signaling. LVD signaling is preferred over single-ended signaling as it provides better noise immunity, allowing for longer cable lengths and better data transmission reliability. Additionally, LVD signaling allows for a larger number of devices to be connected to the SCSI bus.
The Ultra-320 SCSI interface also supports multiple commands and data transfers simultaneously, which is known as command queuing. Command queuing enables the hard drive to execute multiple commands in parallel, improving overall performance and reducing latency.
Another important feature of the Ultra-320 SCSI interface is its compatibility with earlier SCSI versions. Devices that use earlier SCSI versions can be connected to an Ultra-320 SCSI interface, although the data transfer rates will be limited to the maximum speed of the slower SCSI interface.
Installation and Configuration Process

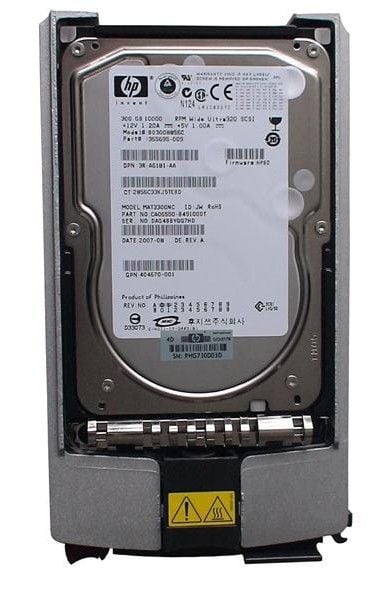

The installation and configuration process for the BD3008856C HP 300GB 10K RPM Ultra-320 SCSI 80-Pin LVD Hot Swap 3.5-inch internal hard drive can vary depending on the system and the operating system being used. However, the following general steps should give you an idea of what to expect:
- Power down the system – Before installing the new hard drive, power down the system and unplug it from the power source.
- Open the system case – Remove the case cover to gain access to the drive bays.
- Locate an available drive bay – Identify an available 3.5-inch drive bay that supports Ultra-320 SCSI and has an available hot-swap tray or carrier.
- Mount the drive – If the drive does not come with a carrier or tray, install the hard drive into the carrier or tray and then slide the carrier into the drive bay. Secure the carrier or tray into place.
- Connect the SCSI interface cable – Connect one end of the Ultra-320 SCSI interface cable to the hard drive and the other end to the SCSI host adapter or the system’s SCSI backplane.
- Power on the system – Power on the system and enter the system BIOS to ensure that the drive is recognized by the system. If the drive is not recognized, you may need to configure the system BIOS or the SCSI host adapter settings to detect the drive.
- Format the drive – Once the system recognizes the drive, format it using the operating system’s disk management utility. Follow the prompts to create partitions and assign drive letters.
- Configure RAID (if applicable) – If the drive is part of a RAID (Redundant Array of Independent Disks) configuration, you may need to configure the RAID using the RAID controller’s utility or the operating system’s disk management utility.
- Test the drive – After the drive is formatted and configured, test it to ensure that it is functioning properly. You can use various disk utility programs to perform read and write tests, check the drive’s SMART status, and monitor its performance.
General Information
- Manufacturer: HP
- MPN : BD3008856C
- Type: Hard Drive(HDD)
- Sub-Type: Ultra-320 SCSI
- SKU : BD3008856C
Performance
- Product Type: Internal Hard Drive
- Form Factor: 3.5-inch
- Capacity: 300 GB
- Spindle Speed: 10K RPM
- Drive Interface Type: Ultra-320 SCSI
- Connector Type: 80-Pin
Dimension and Weight
- Width: 4 Inch
- Depth: 5.8 Inch
- Height: 1 Inch
- Weight: 1.52 LBS
