Description
Key Features of 48 Ports L4 Switch

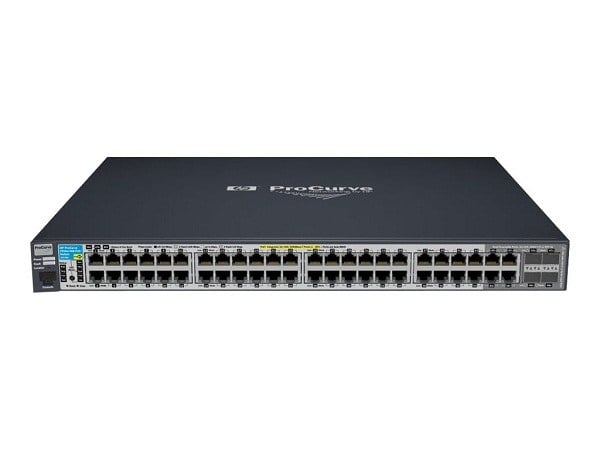

- 48 ports: The J9626-61001 HP 2620 switch offers 48 Gigabit Ethernet ports, providing a high-density solution for connecting multiple devices.
- Layer 4 switching: This switch supports Layer 4 switching, which allows for advanced traffic management based on IP addresses and ports. This enables the switch to prioritize traffic and reduce network congestion.
- Managed switch: The J9626-61001 is a managed switch, which means it can be configured and monitored using a web interface or a command-line interface. This allows for greater control over the network and the ability to troubleshoot issues more easily.
- Quality of Service (QoS): The switch supports Quality of Service (QoS) features, which allow for the prioritization of certain types of traffic, such as voice or video, to ensure smooth and reliable communication.
VLAN support: The switch supports VLANs, which allow for the segmentation of a network into multiple virtual networks. This improves security and helps to reduce network congestion.
- Link aggregation: The switch supports Link Aggregation, which allows multiple ports to be grouped together to form a single, high-bandwidth link. This improves the reliability and performance of the network.
- Energy-efficient: The J9626-61001 is Energy Efficient Ethernet (EEE) compliant, which helps to reduce power consumption and lower operating costs.
- Advanced security: The switch supports advanced security features, such as port security and access control lists, to help protect the network against unauthorized access and malicious attacks.
Performance and Scalability
The HP 2620 48 Ports L4 Managed Switch (J9626-61001) is a high-performance and scalable switch that is designed for use in enterprise networks. It offers 48 ports of Gigabit Ethernet connectivity, with a maximum data rate of 48 Gbps.
In terms of performance, the switch is equipped with advanced features such as Quality of Service (QoS) and traffic management, which allow for efficient and reliable data transfer. It also supports a variety of protocols, including IPv4 and IPv6, as well as VLANs and link aggregation.
The switch also offers scalability, allowing for easy expansion of the network as needed. It supports stacking, which allows for the addition of up to four units to be connected together to create a single, larger switch with increased ports and capacity. Additionally, the switch offers the ability to scale up to 384 ports with the addition of expansion modules.
Troubleshooting and Maintenance
The J9626-61001 HP 2620 48 Ports L4 Managed Switch is a powerful and reliable network switch that is designed for use in enterprise environments. However, like all electronic devices, it may experience issues or require maintenance from time to time.
Troubleshooting:
- Connectivity issues: If users are experiencing connectivity issues, the first step is to check the cable connections and ensure that they are properly plugged in.
- Power issues: If the switch is not powering on, check the power source and ensure that it is providing adequate power.
- Configuration issues: If the switch is not configured properly, it may cause connectivity issues. Check the switch’s configuration settings and ensure that they are correct.
- Software issues: If the switch is experiencing software issues, check for any updates or patches that may be available and apply them.
Maintenance:
- Firmware updates: Regularly check for and apply firmware updates to ensure that the switch is running the latest version and is secure from known vulnerabilities.
- Backups: Regularly backup the switch’s configuration to ensure that it can be easily restored in case of a failure.
- Dust and debris: Regularly clean the switch’s vents to prevent dust and debris from clogging the airflow and causing overheating.
- Physical damage: Regularly inspect the switch for any physical damage and repair or replace any damaged parts as needed.
General Information about the HP J9626-61001
- Manufacturer: HP
- Part Number or SKU# J9626-61001
- Sub-Type: Switch 48 Ports
- Device Type : Switch – 48 Ports – L4 – Managed
Technical Information
- Enclosure Type : Rack-Mountable – 1u
- Ports : 48 X 10/100 + 2 X 10/100/1000 + 2 X Sfp
- Performance : Routing/Switching Capacity : 17.6 Gbps Throughput : Up To 13 Mpps
- Mac Address Table Size : 16000 Entries
- Jumbo Frame Support : 9220
- Routing Protocol : Rip-1, Rip-2, Igmpv3, Mldv2, Mld
- Remote Management Protocol : Snmp 1, Rmon 1, Rmon 2, Rmon 3, Rmon 9, Telnet, Snmp 3, Snmp 2c, Http, Https, Tftp, Smon, Cli
- Encryption Algorithm : Ssl
- Authentication Method : Radius, Tacacs+, Secure Shell V.2 (Ssh2)
Performance
- Features : Flow Control, Auto-Sensing Per Device, Dhcp Support, Arp Support, Vlan Support, Auto-Uplink (Auto Mdi/Mdi-X), Igmp Snooping, Port Mirroring, Ipv6 Support, Half Duplex Mode, Full Duplex Mode, Sflow, Multiple Spanning Tree Protocol (Mstp) Support, Access Control List (Acl) Support, Quality Of Service (Qos), Jumbo Frames Support, Mld Snooping, Stp Root Guard, Lldp Support, Mac Address Lockout, Dynamic Arp Protection, Dhcp Protection, Per-Port Broadcast Throttling
- Compliant Standards : Ieee 802.3u, Ieee 802.1d, Ieee 802.1q, Ieee 802.3ab, Ieee 802.1p, Ieee 802.3x, Ieee 802.3ad (Lacp), Ieee 802.1w, Ieee 802.1x, Ieee 802.1s, Ieee 802.1v, Ieee 802.1ab (Lldp)
- Processor : 1 X Freescale Mpc8313 : 400 Mhz
- Ram : 512 Mb – Sdram
- Flash Memory : 512 Mb
