Description
Features and Specifications

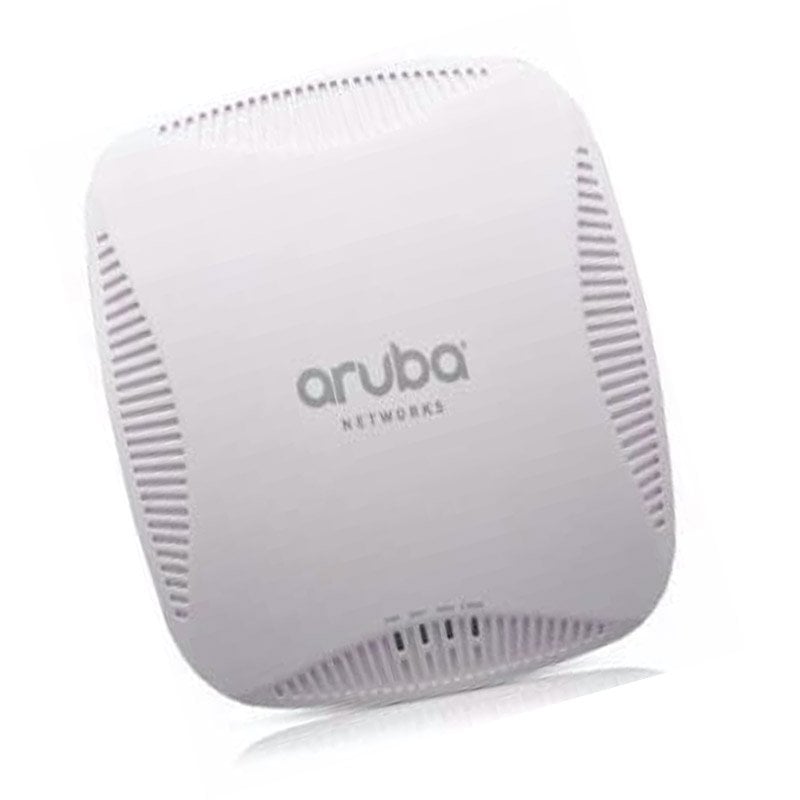

JL191A HP 225 Instant 802.11AC Access Point is a wireless access point designed for small and medium-sized businesses. It offers a range of features and specifications that make it an ideal choice for businesses looking for a high-performance, reliable wireless solution.
Features:
- Dual-band operation: The access point supports both 2.4GHz and 5GHz bands, providing maximum flexibility and performance for different devices and applications.
- High-speed data transfer: The access point supports the 802.11ac standard, which allows for data transfer speeds of up to 1.3 Gbps.
- Easy setup and management: The access point can be easily set up and managed through a web-based interface or a mobile app.
- PoE support: The access point can be powered using Power over Ethernet (PoE), making it easy to install and power without the need for additional power cables.
- Advanced security: The access point supports a range of security features, including WPA2-Enterprise, 802.1X authentication, and guest networking.
Specifications:
- Wireless Standards: 802.11ac/a/n/g/b
- Frequency Bands: 2.4GHz and 5GHz
- Data Transfer Rates: Up to 1.3 Gbps
- Antennas: 2 internal dual-band antennas
- PoE Support: 802.3af PoE
- Management: Web-based interface, mobile app
- Dimensions: 8.2 x 4.8 x 1.4 inches
- Weight: 0.66 lbs
- Operating Temperature: 32°F to 104°F (0°C to 40°C)
- Operating Humidity: 10% to 90% (non-condensing)
- Certifications: CE, FCC, RoHS, WEEE, IC
Easy setup and Deployment
The JL191A HP 225 Instant 802.11AC Access Point is a wireless network device designed for easy setup and deployment. It is a plug-and-play device that does not require any complex configuration or installation procedures.
The device comes with a built-in web interface that allows users to easily configure and manage the access point. Users can access the web interface by connecting to the access point’s default wireless network and entering the default login credentials.
The HP 225 Instant Access Point also supports different deployment modes, such as Instant mode, which allows users to quickly set up and deploy the access point without any prior configuration. Users can also use the FlexConnect mode, which allows for more advanced configuration options, such as setting up multiple SSIDs and VLANs.
The device also supports PoE (Power over Ethernet) which means it can be powered by a PoE switch, eliminating the need for a separate power supply. This makes it easy to deploy in areas where power outlets may not be readily available.
Advanced security and Management Options
The JL191A HP 225 Instant 802.11AC Access Point is a wireless networking device that allows users to connect to a wired network through wireless connections. This access point is designed for advanced security and management options, providing businesses with a secure and reliable wireless network.
Advanced Security: The JL191A includes features such as WPA2-Enterprise, which provides enhanced security for wireless connections through the use of a RADIUS server. Additionally, the access point includes a built-in firewall that can be configured to block unwanted traffic and prevent unauthorized access to the network.
Advanced Management: The JL191A also includes advanced management options, such as the ability to manage multiple access points through a single interface. This allows network administrators to easily monitor and configure the access points from a central location. Additionally, the access point includes a built-in web interface that allows for easy configuration and monitoring of the network.
General Information about the HP JL191A
- Manufacturer: HP
- Part Number or SKU# JL191A
- Product Type : Networking
- Product Name : 1.3GBPS Wireless Access Point
Networking
- Form Factor : External
- Connectivity Technology : Wireless
- Data Transfer Rate : 1.3 GBPS
- Line Coding Format : Cck, 64 Qam, 256 Qam, Bpsk, Qpsk, 16 Qam, Ofdm
- Data Link Protocol : IEEE 802.11b, IEEE 802.11a, IEEE 802.11g, IEEE 802.11n, IEEE 802.11ac
- Spread Spectrum Method : Ofdm, Dsss
- Frequency Band : 2.4 GHz, 5 GHz
- Status Indicators : Power, System, Wireless, Link/Activity
- Features : Auto-Sensing Per Device, Auto-Uplink (Auto Mdi/Mdi-X), Dfs Support, Wall Mountable, Trusted Platform Module (Tpm), Reset Button, Adaptive Radio Management (Arm), Maximum Ratio Combining (Mrc), Dual-Band 802.11n, 3t3r Mimo Technology, Low Density Parity Check (Ldpc), Transmit Beam-Forming (Txbf) Ready, Energy Efficient Ethernet, Cyclic Delay Diversity (Cdd), Space Time Blocking Code (Stbc), Security Lock Slot (Cable Lock Sold Separately), Advanced Cellular Coexistence (Acc), Clientmatch, Broadcom Turboqam Technology
- Compliant Standards : Ieee 802.11b, Ieee 802.11a, Ieee 802.3af, Ieee 802.11g, Wi-Fi Certified, Ieee 802.11n, Ieee 802.3at, Ieee 802.3az, Ieee 802.11ac
Antenna
- Antenna : Internal Integrated
- Antenna Qty : 6
- Directivity : Omni-Directional
Expansions And Connectivity
- Interfaces : 2 X 1000base-T (Poe+) – Rj-45 ¦ 1 X Management – Rj-45 ¦ 1 X Usb 2.0 – Type A
