Description
Graphics Performance and Memory

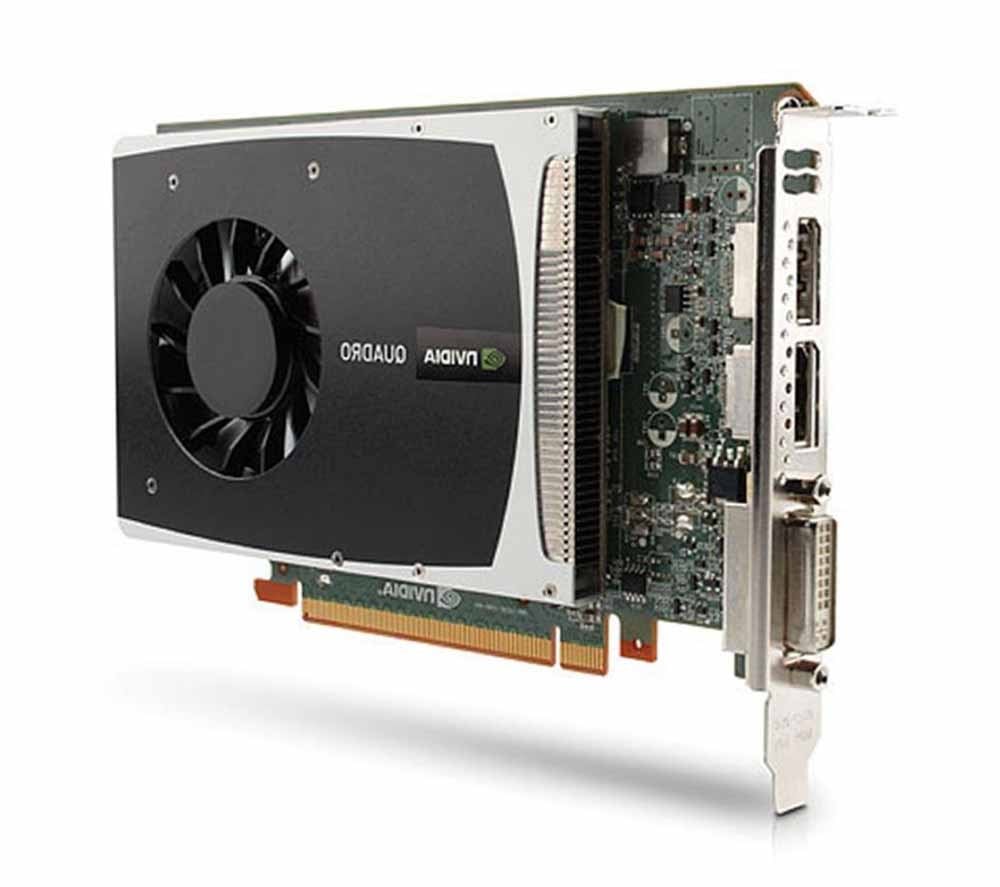

The HP WS094AA Quadro 2000 1GB Graphics PCI-E is designed to deliver high-performance graphics and memory capabilities.
The Quadro 2000 is equipped with a powerful NVIDIA Quadro 2000 GPU that provides the ability to drive up to two displays simultaneously and it also provides high-performance and energy-efficient solution for professional graphics and video applications.
The Quadro 2000 also comes with 1GB of GDDR5 memory, which provides fast and efficient memory bandwidth for demanding applications such as video editing, 3D rendering, and scientific simulations. The memory is also enough to handle multiple high-resolution displays.
The Quadro 2000 supports a wide range of display resolutions, including up to 2560×1600 per display, which allows you to create high-resolution visual workspaces.
Additionally, the Quadro 2000 is designed to offer a high level of graphics performance and memory capabilities. The card can handle large data sets, complex models, and demanding applications such as 3D animation, video editing, and scientific visualization. It also can offer advanced features such as Shader Model 5.0 and DirectX 11, which makes it suitable for a wide range of professional applications.
Installation and Setup Guide
Installing and setting up the HP WS094AA Quadro 2000 1GB Graphics PCI-E is a relatively straightforward process, but it’s important to make sure that your computer meets the minimum system requirements and that you have the necessary equipment and software before proceeding.
Before installing the Quadro 2000, make sure that your computer meets the following requirements:
- A PCI Express x16 slot
- Compatible power supply
- Windows or Linux operating system
- Latest display driver
To install the Quadro 2000:
- Turn off your computer and unplug the power cord.
- Open the computer case and locate an available PCI Express x16 slot.
- Carefully insert the Quadro 2000 into the slot, making sure that it is fully seated and securely connected.
- Close the computer case and reconnect the power cord.
- Turn on your computer and wait for it to boot up.
- Once your computer has booted up, install the appropriate drivers for the Quadro 2000 by visiting the NVIDIA website and downloading the latest version of the driver for your operating system.
- Once the driver is installed, you should be able to start using the Quadro 2000 and configure the multiple displays.
- It is also important to check the user manual and the HP website for any additional instructions or information that might be specific to your computer or operating system.
Energy-efficient solution
Display connectivity refers to the various methods and technologies used to connect a computer or other device to a display, such as a monitor or projector. Display support refers to the capability of a device to work with a specific type of display or display technology.
Some common methods of display connectivity include:
- HDMI (High-Definition Multimedia Interface): This is a digital interface that supports high-definition video and audio and is commonly used for connecting computers to televisions and other displays.
- DVI (Digital Visual Interface): This is a digital interface that supports high-definition video and is commonly used for connecting computers to monitors and other displays.
- VGA (Video Graphics Array): This is an analog interface that supports lower resolution video and is commonly used for connecting older computers and displays.
- DisplayPort: This is a digital interface that supports high-definition video and audio and is commonly used for connecting computers to monitors and other displays.
- USB Type-C: This is a newer interface that supports high-definition video, audio and data transfer, and is commonly used for connecting computers to monitors and other displays.
The HP WS094AA Quadro 2000 1GB Graphics PCI-E 2X DP/1X DVI-I/1X DP To DVI Adaptor, supports dual-display ports and DVI-I port and can connect to 2 display at a time. The card also supports NVIDIA CUDA technology which allows for energy-efficient solution.
General Information
- Manufacturer: HP
- MPN: WS094AA
- Type: Video Cards
- Sub-Type: Quadro 2000
- SKU: WS094AA
Technical Information
- API Supported
- OpenGL 4.0
- DirectX 11.0
- DirectCompute 5.0
- OpenCL
Processor & Chipset
- Chipset Manufacturer: NVIDIA
- Chipset Line: Quadro
- Chipset Model: 2000
Memory
- Standard Memory: 1 GB
- Memory Technology: GDDR5
- Bus Width: 128 bit
Interfaces/Ports
- Display Port: Yes
- Number of Display Port Outputs: 2
- DVI: Yes
- Total Number of DVI Outputs: 1
- Dual Link DVI Supported: Yes
Miscellaneous
- Platform Supported: PC
