Description
Power and Cooling Features

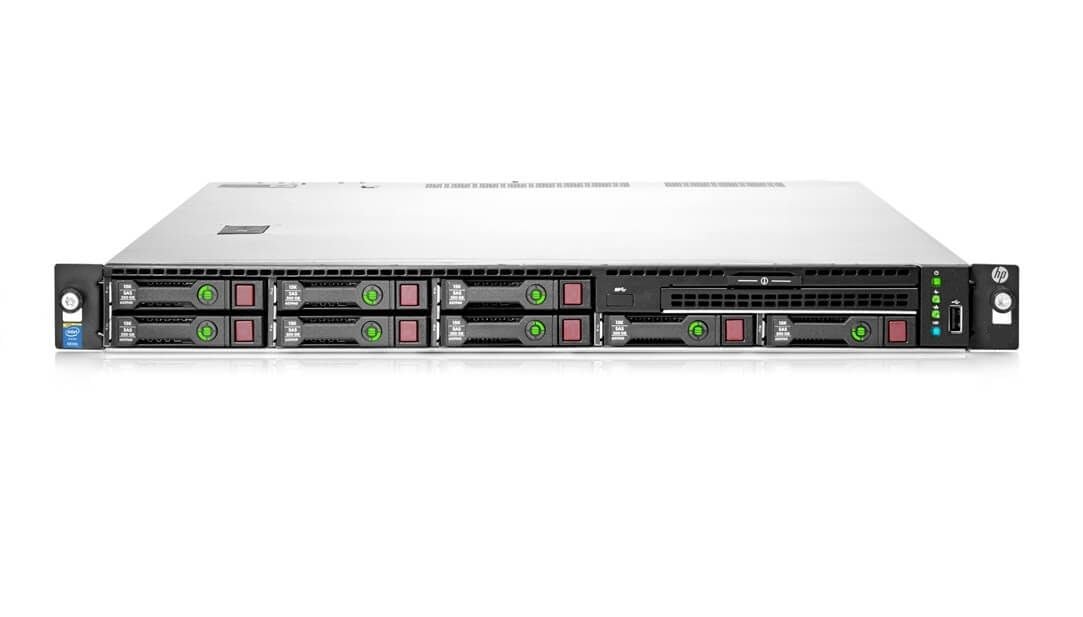

The HPE ProLiant DL360p G8 server is designed with advanced power and cooling features to ensure efficient operation and optimal performance.
One key feature is the redundant power supply options. The server supports either one or two hot-plug power supplies, providing redundancy and ensuring continuous operation in case of a power supply failure.
The server also features HP’s Dynamic Power Capping technology, which allows administrators to set limits on power consumption to help prevent over-utilization of power resources.
Another feature is the hot-plug fans, which allow for easy replacement of fans without having to shut down the server. This helps to ensure that the server’s cooling system is always operating at peak efficiency.
Additionally, the DL360p G8 has an ambient temperature range of 10 to 35°C, which means it can operate in a range of temperatures, which means it can operate in a range of temperatures.
SAS Storage Capabilities
The HPE ProLiant DL360p G8 server, model 646902-001, has the capability to use SAS (Serial Attached SCSI) storage. SAS is a high-speed data storage interface that allows for faster data transfer rates and improved data integrity compared to traditional SATA storage. The DL360p G8 supports SAS hard drives, solid-state drives (SSDs), and hybrid drives (a combination of both SAS and SSDs) for increased performance and storage capacity. It also supports for the HPE Smart Array P420i Controller, which is a SAS RAID controller that provides data protection and performance enhancements. The P420i controller supports RAID levels 0,1,5,6,10,50,60 and also supports for the HPE SmartCache which is a read-only caching feature that boosts the performance of the server by caching frequently accessed data.
Gigabit Ethernet Connectivity
Gigabit Ethernet connectivity refers to the use of the Ethernet networking standard with a data transfer rate of 1 gigabit per second (Gbps). The HPE ProLiant DL360p G8 server model 646902-001 offers Gigabit Ethernet connectivity options, which means that the server can be connected to a network using Ethernet cables and can achieve high-speed data transfer rates of up to 1 Gbps. This allows for faster data transfer and improved network performance, making the server well suited for use in demanding network environments such as data centers and enterprise networks. Additionally, Gigabit Ethernet connectivity options allow for the use of advanced network features such as Quality of Service (QoS) and link aggregation, which can further improve network performance and availability.
General Information
- Manufacturer: Hewlett Packard Enterprise(HPE)
- MPN: 646902-001
- Type: Server
- Sub-Type: ProLiant DL360P
- SKU: 646902-001
- Product Name: Proliant Dl360p G8 – 2-Way 1u Rack Server (Base Model)
Processor & Chipset
- Processor Type: Intel Xeon E5-2640/ 2.50 Ghz
- Multi-Core Technology: Hexa-Core (6 Core)
- 64 Bit Computing: Yes
- Installed Qty: 1
- Max Supported Qty: 2
- Upgradability: Upgradable
- Chipset Model: Intel C600
Cache Memory
- Cache Memory Type : L3 Cache
- Installed Size : 15 Mb
- Cache Per Processor : 15 Mb
Memory
- Installed Ram Size: 16 Gb / 384 Gb (Max)
- Technology: Ddr3 Sdram
- Form Factor: Dimm 240-Pin
- Configuration Features: 4 X 4 Gb
RAM Supported
- Pc3-12800 – 384 Gb – Registered
- Pc3-10600 – 768 Gb – Load-Reduced
- Pc3-12800 – 128 Gb – Unbuffered – Advanced Ecc
- Pc3-10600 – 384 Gb – Hypercloud
Storage & Storage Controllers
- Hard Drive: None
- Optical Storage Type: None
- Storage Controller Type: 1 X Raid – Integrated – Pci Express 3.0 X8
- Controller Interface Type : Sata-600 / Sas 2.0
- Storage Controller Name : Smart Array P420i With 1gb Fbwc
- Raid Levels: Raid 0, Raid 1, Raid 5, Raid 10, Raid 50
- Buffer Size : 1 Gb
Display & Graphics
- Graphics Controller Type : Integrated
- Graphics Processor : Matrox G200
Network & Communication
- Networking Type : Pci Express X4
- Ethernet Ports : 4 X Gigabit Ethernet
- Ethernet Controller : Hp 331flr
- Data Link Protocol : Ethernet, Fast Ethernet, Gigabit Ethernet
- Remote Management Protocol : Snmp, Ipmi 2.0, Smash Clp
- Remote Management Controller : Integrated Lights-Out 4
- Features : Wake On Lan (Wol), Pxe Support
- Compliant Standards : Ieee 802.3, Ieee 802.3u, Ieee 802.1q, Ieee 802.3ab, Ieee 802.1p, Ieee 802.3ad (Lacp)
Dimensions & Weight
- Width : 17.1 Inch
- Depth : 27.5 Inch
- Height : 1.7 Inch
- Weight : 31.99 Lbs
