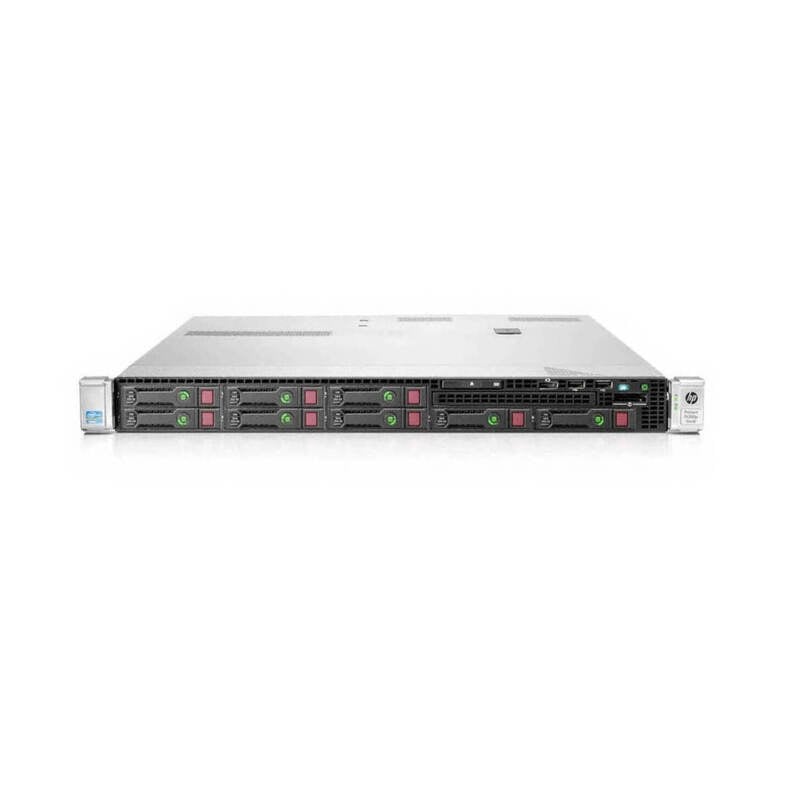

Introduction to HPE Proliant DL360p G8 Server
The HPE Proliant DL360p G8 Server is a powerful and reliable server designed for businesses that require high-performance computing power. It is designed to support a wide range of applications, from basic office productivity software to complex database applications.
In this article, we will be providing a detailed explanation of the various features and specifications of the HPE Proliant DL360p G8 Server. We will also explain what each of the components of the server does and how they work together to provide the best possible performance for your business.
Features and Specifications
The HPE Proliant DL360p G8 Server is a 5U rack server that is powered by 2 X Xeon E5-2650 2 GHz processors. It comes with 32 GB DDR3 SDRAM, which provides fast and reliable memory for your applications. The server has a 0 HDD RAID Array P420i/2GB, which allows you to store large amounts of data and ensures that your data is safe and secure.
The server comes with a Hot Plug 8 SFF 1GB, 4-Port 331flr Ethernet Adapter, which provides fast and reliable connectivity to your network. It also comes with a Hot Plug 2 X 460w Ps power supply, which ensures that your server has enough power to run all of your applications.
Ethernet Adapter
The server comes with a Hot Plug 8 SFF 1GB, 4-Port 331flr Ethernet Adapter, which provides fast and reliable connectivity to your network. This adapter is designed to provide high-performance networking, which is essential for running applications that require a lot of data transfer.
Power Supply
The HPE Proliant DL360p G8 Server comes with a Hot Plug 2 X 460w Ps power supply, which ensures that your server has enough power to run all of your applications. The Hot Plug power supply is designed to be easily replaceable, which reduces downtime in the event of a power supply failure.
Finally, the HPE Proliant DL360p G8 Server is a powerful and reliable server that is designed to provide high-performance computing power for businesses. It is packed with features and specifications that make it an ideal choice for businesses that require fast and reliable computing power. The server is easy to set up and maintain, and its Hot Plug components make it easy to upgrade and replace components as needed. If you are looking for a reliable and powerful server for your business, the HPE Proliant DL360p G8 Server is an excellent choice.
General Information
- Manufacturer : Hewlett Packard Enterprise
- Manufacturer Part Number : 646904-001
- Type: Server
- Sub-Type: Proliant Dl360P
- Product Name : Proliant Dl360p G8 – 2-way 1u Rack Server ( Performance Model)
Processor & Chipset
- CPU : Intel Xeon E5-2650 / 2 GHz
- Max Turbo Speed : 2.8 GHz
- Number Of Cores : 8-core
- CPU Qty : 2
- Max CPU Qty : 2
- 64-bit Computing : Yes
- Cpu Upgradability : Upgradable
- Processor Main Features : Hyper-threading Technology, Intel Quickpath Interconnect, Intel Turbo Boost Technology 2
Cache Memory
- Cache Memory Type : L3 Cache
- Installed Size : 40 Mb
- Cache Per Processor : 20 Mb
Memory
- Installed Size : 32 Gb / 384 Gb (max)
- Technology : Ddr3 Sdram
- Effective Memory Speed : 1600 Mhz
- Rated Memory Speed : 1600 Mhz
- Memory Specification Compliance : Pc3-12800
- Form Factor : Dimm 240-pin
- Slots : 24 (total) / 20 (empty)
- Features : Registered, Online Spare Memory, Quad Channel Memory Architecture, Hp Smartmemory
- Configuration Features : 4 X 8 Gb
- Ram Supported : Pc3-12800 – 384 Gb Registered Pc3-10600 – 768 Gb Load-reduced Pc3-10600 – 128 Gb Unbuffered – Advanced Ecc Pc3-10600 – 384 Gb
Storage & Optical Storage
- Hard Drive : None
- Optical Drive Type : None
Storage Controller
- Type : 1 X Raid – Integrated – Pcie 3.0 X8
- Controller Interface Type : Sata 6gb/s / Sas 6gb/s
- Storage Controller Name : Smart Array P420i With 2gb Fbwc
- Raid Level : Raid 0, Raid 1, Raid 5, Raid 6, Raid 10, Raid 50, Raid 60
- Buffer Size : 2 GB
Display & Graphics Controllers
- Graphics Controller Type : Integrated
- Graphics Processor : Matrox G200
- Video Interfaces : Vga
Network & Communication
- Type : Plug-in Card
- Interface (bus) Type : Pci Express X4
- Ethernet Ports : 4 X Gigabit Ethernet
- Ethernet Controller : Hp 331flr
- Data Link Protocol : Ethernet, Fast Ethernet, Gigabit Ethernet
- Remote Management Protocol : Ipmi 2.0, Smash Clp
- Remote Management Controller : Integrated Lights-out 4
- Features : Wake On Lan (wol), Pxe Support
- Compliant Standards : Ieee 802.3, Ieee 802.3u, Ieee 802.1q, Ieee 802.3ab, Ieee 802.1p, Ieee 802.3ad (lacp)
Expansions & Connectivity
- Expansion Bays Total (free) :
- 1 (total) / 1 (free) X External 5.25inch
- 8 (total) / 8 (free) X Hot-swap 2.5inch Sff
- Expansion Slots Total (free) :
- 24 (total) / 20 (free) X Dimm 240-pin
- 2 (total) / 0 (free) X Cpu
- 1 (total) / 1 (free) X Pcie 3.0 X16 – Half-length, Full-height
- 1 (total) / 1 (free) X Pcie 3.0 X8 – Low-profile
- 1 (total) / 0 (free) X Flexiblelom (x4 Mode)
- 1 (total) / 1 (free) X Sd Card (internal)
- Interfaces & Ports :
- 1 X Serial
- 1 X Vga
- 2 X Lan (10gigabit Ethernet)
- 1 X Hp Ilo
- 7 X Usb 2.0 ( 2 Front, 4 Rear, 1 Internal )
Power Device
- Device Type : Power Supply – Hot-plug
- Power Redundancy : Yes
- Power Redundancy Scheme : 1+1
- Installed Qty : 2
- Max Supported Qty : 2
- Nominal Voltage : Ac 120/230 V (50/60 Hz)
- Power Provided : 460 Watt
- 80 Plus Certification : 80 Plus Platinum
- Efficiency : 94%
