Introduction and Overview
Hardware Components

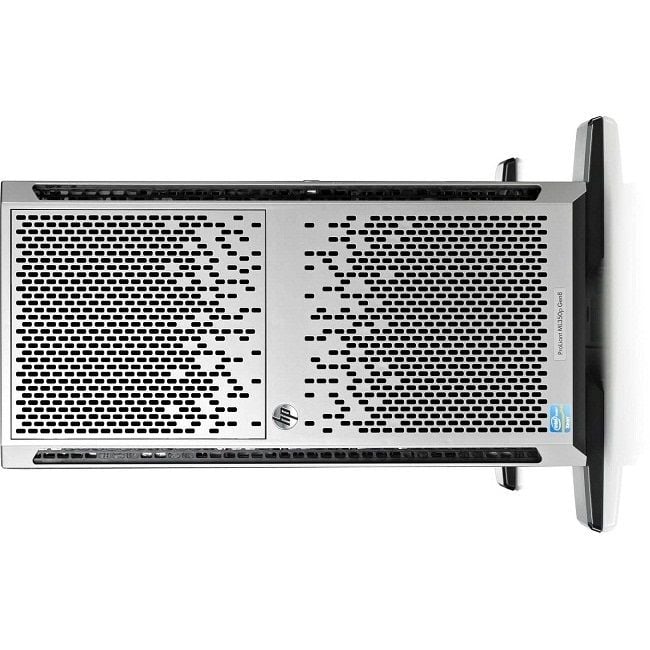

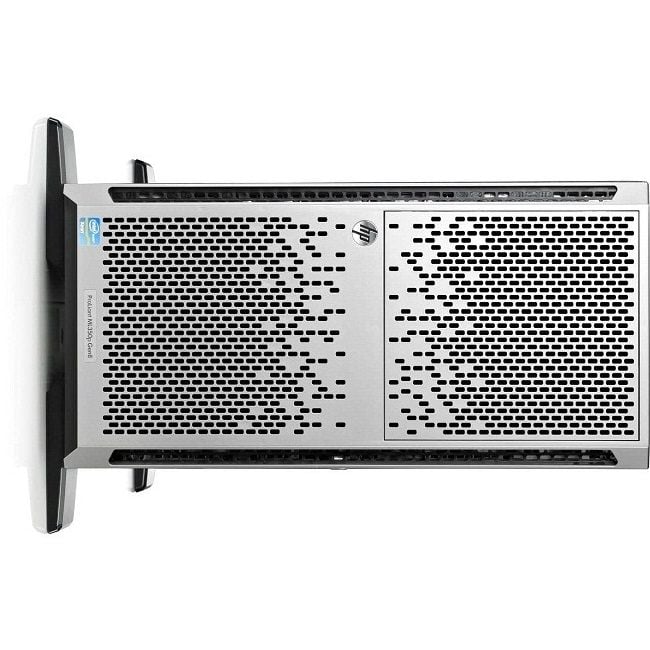

The HPE Proliant ML350e Gen8 server is powered by a single Intel Xeon E5-2407 v2 2.2GHz processor. It supports up to 4GB of RAM, which can be upgraded to a maximum of 768GB with the use of DDR3 memory modules. The server has room for up to 8 small form factor (SFF) or 4 large form factor (LFF) hard disk drives with a maximum storage capacity of 40TB.
Storage controller options include Smart Array P420i or P220i with RAID 0, 1, 5, and 10 support. The server also has an integrated HPE FlexibleLOM slot for adding additional NICs. Other connectivity options include four USB ports, one serial port, and one VGA port.
The server also includes a redundant power supply and advanced thermal control features to help ensure optimal performance and reliability. Additionally, it supports the HPE iLO Management Engine, which allows for remote management and monitoring of the server.
Expandability and Upgrade Options
The HPE Proliant ML350e Gen8 server offers a number of expandability and upgrade options to help meet the evolving needs of small and medium-sized businesses.
In terms of storage, the server supports up to 8 SFF or 4 LFF hard disk drives, providing a maximum storage capacity of 40TB. Additionally, it has an integrated HPE FlexibleLOM slot for adding additional NICs, and four USB ports, one serial port, and one VGA port for external connectivity.
For memory, the server supports up to 4GB of RAM, which can be upgraded to a maximum of 768GB with the use of DDR3 memory modules. The server also has multiple expansion slots, including PCI Express 3.0 slots, which can be used to add additional hardware such as a graphics card or additional NICs.
The server also supports the HPE iLO Management Engine, which allows for remote management and monitoring of the server, and making it easy to upgrade the firmware and drivers.
In conclusion, the HPE Proliant ML350e Gen8 offers excellent expandability and upgrade options, allowing businesses to easily add storage, memory, and additional hardware as their needs evolve over time.
General Information
- Manufacturer : Hewlett Packard Enterprise(HPE)
- MPN: 648376-001
- Type: Server
- Sub-Type: Proliant Ml350E
- SKU: 648376-001
- Product Name : Proliant Ml350e G8 2-Way 5u Tower Server Base Model
Processore & Chipset
- Processor Type : Intel Xeon E5-2407/2.2GHz
- Number Of Cores : Quad-Core
- 64-Bit Computing : Yes
- Installed Qty : 1
- Max Supported Qty : 2
- Upgradability : Upgradable
- Chipset Type : Intel C600
Cache Memory
- Cache Memory Type : L3 Cache
- Installed Size : 10 Mb
- Cache Per Processor : 10 Mb
Memory
- Installed Size : 4 Gb
- Maximum Size : 192 Gb
- Technology : Ddr3 Sdram
- Form Factor : Dimm 240-Pin
- Memory Speed : 1333 Mhz
- Memory Specification Compliance : Pc3-10600
- Features : Unbuffered, Hp Smartmemory
- Configuration Features : 1 X 4 Gb
Storage & Storage Controller
- Hard Drive : No Hdd
- Optical Drive Type : Dvd-Rom – Serial Ata
- Card Reader Type : Card Reader
- Supported Flash Memory Cards : Sd Memory Card
- Storage Controller Type : 1 X Raid – Plug-In Card – Pci Express 2.0
- Controller Interface Type : Serial Ata-600
- Storage Controller Name : Hp Dynamic Smart Array B120i With 512mb Fbwc
- Raid Level : Raid 0, Raid 1, Raid 5, Raid 10, Raid 50
- Channel Qty : 6
- Buffer Size : 512 Mb
Display & Graphics Controllers
- Graphics Controller Type : Integrated
- Graphics Processor : Matrox G200
Network & Communication
- Networking : Network Adapter – Integrated
- Ethernet Ports : 2 X Gigabit Ethernet
- Ethernet Controller : Hp Nc361i
- Data Link Protocol : Ethernet, Fast Ethernet, Gigabit Ethernet
- Remote Management Protocol : Ipmi 2.0, Smash Clp
- Remote Management Controller : Integrated Lights-Out 4
- Features : Wake On Lan (Wol), Pxe Support
- Compliant Standards : Ieee 802.3, Ieee 802.3u, Ieee 802.3ab, Ieee 802.1s, Ieee 802.3az
Power Device
- Device Type : Power Supply – Hot-Plug
- Power Redundancy : Optional
- Power Redundancy Scheme : 1+1 (With Optional Power Supply)
- Installed Qty : 1
- Max Supported Qty : 2
- Voltage Required : Ac 120/230 V ( 50/60 Hz )
- Power Provided : 460 Watt
Dimensions & Weight
- Width : 8.6 Inch
- Depth : 29.1 Inch
- Height : 18.2 Inch
- Weight : 57.2 Lbs
