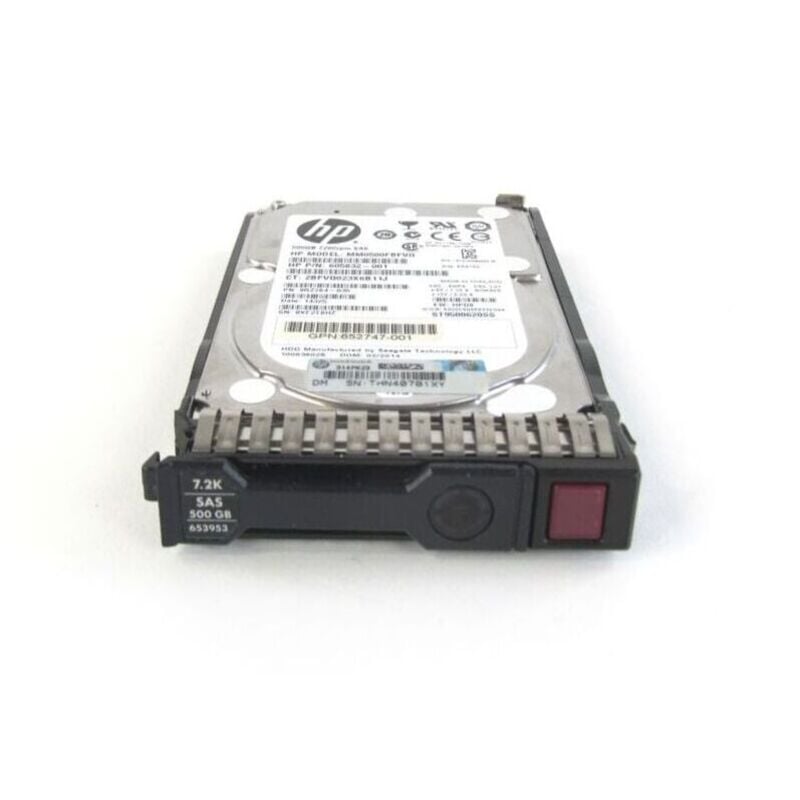

The 652745-B21 is a 500GB Hard Disk Drive produced by HPE (Hewlett Packard Enterprise). It has a spindle speed of 7200 RPM and uses the SAS (Serial Attached SCSI) 6 Gbps interface. It is a midline hard drive, which means it is designed for use in applications that require a balance of performance and cost-effectiveness. This hard drive is typically used for storing and accessing large amounts of data, such as video and audio files or backups of important documents. The hard drive has a relatively large capacity and good performance compared to other hard drives in its class, making it a popular choice for many users. It comes in a tray, which is a type of mounting frame used to hold the hard drive in place inside a computer or server.
High Performance
The performance of the 652745-B21 Hard Disk Drive will depend on a variety of factors, including the specific hardware and software it is used with, the workload being placed on the drive, and the overall system configuration. In general, hard drives with higher spindle speeds and larger buffers tend to have better performance than those with lower spindle speeds and smaller buffers. The hard drive has a spindle speed of 7200 RPM and a relatively small buffer size, which may impact its performance compared to other hard drives on the market. However, as a midline hard drive, it is designed to provide a balance of performance and cost-effectiveness, and may be suitable for many applications.
General Compatibility
The 652745-B21 Hard Disk Drive is compatible with any device that supports the SAS-6 Gbps interface and has sufficient physical space to accommodate a 2.5-inch hard drive. This includes servers, storage systems, and some high-end desktop computers. It is important to check the compatibility of the hard drive with your specific device before attempting to install it. You should also ensure that your device has enough available power and data connectors to support the hard drive. In general, the hard drive should be compatible with most devices that support SAS hard drives.
Product Information:
Manufacturer Name: HPE
MPN: 652745-B21
Type: Hard Drive – Hot-Swap
HDD Type: SAS 6GBPS
Spare Part Number: 653953-001
Model Number: MM0500FBFVQ
Assembly Number: 605832-001
Technical Information
Capacity: 500 GB
Form Factor: 2.5 inch SFF
Interface: SAS 6BPS
Bytes per Sector: 512
Drive Technology (Fill): Air
Carrier Type: Smart Carrier
Workload: Midline
Bundled with: HPE Smart Drive Carrier
Performance
Drive Transfer Rate: 600 MBPS (External)
Seek Time: 8.7 MS (Average) / 17.16 MS (Max)
Track-to-Track Seek Time: 0.7 MS
Spindle Speed: 7200 RPM
Expansion & Connectivity
Interfaces: 1 x SAS 6GB/S
Compatible Bay: 2.5 Inch SFF
Miscellaneous
Compliant Standards: WEEE
Dimension and Weight
Width: 2.8 Inch
Depth: 3.9 Inch
Height: 0.6 Inch
Weight: 0.50 LBS
Environmental Parameters
Min Operating Temperature: 50 °F
Max Operating Temperature: 95 °F
Compatibility
HPE ProLiant BL Series: BL460c Gen8 (2.5 inch), BL660c Gen9 (2.5 inch)
HPE ProLiant DL Series: DL180 Gen9 (2.5 inch), DL180 Gen9 Base (2.5 inch), DL180 Gen9 Entry (2.5 inch), DL180 Gen9 Storage (2.5 inch), DL20 Gen9 (2.5 inch), DL20 Gen9 Entry (2.5 inch), DL20 Gen9 Performance (2.5 inch), DL320e Gen8 (2.5 inch), DL320e Gen8 Base (2.5 inch), DL320e Gen8 Entry (2.5 inch), DL320e Gen8 Performance (2.5 inch), DL360 Gen9 CMS (2.5 inch), DL360e Gen8 Special Server (2.5 inch), DL360p Gen8 (2.5 inch), DL360p Gen8 CMS (2.5 inch), DL360p Gen8 Special Server (2.5 inch), DL380 Gen9 (2.5 inch), DL380 Gen9 Base (2.5 inch), DL380 Gen9 Entry (2.5 inch), DL380 Gen9 Performance (2.5 inch), DL385p Gen8 Entry (2.5 inch), DL560 Gen8 Entry (2.5 inch), DL560 Gen8 Performance (2.5 inch), DL560 Gen9 (2.5 inch), DL560 Gen9 Base (2.5 inch), DL560 Gen9 Entry (2.5 inch), DL560 Gen9 Performance (2.5 inch), DL580 Gen9 (2.5 inch), DL580 Gen9 Database (2.5 inch), DL580 Gen9 SAP HANA Scale-up Base Configuration (2.5 inch)
HPE ProLiant ML Series: ML110 Gen9 (2.5 inch), ML110 Gen9 Base (2.5 inch), ML110 Gen9 Entry (2.5 inch), ML30 Gen9 (2.5 inch), ML30 Gen9 Base (2.5 inch), ML30 Gen9 Performance (2.5 inch), ML310e Gen8 (2.5 inch), ML310e Gen8 Base (2.5 inch), ML310e Gen8 Entry (2.5 inch), ML310e Gen8 Performance (2.5 inch), ML310e Gen8 v2 Base (2.5 inch), ML350 Gen9 (2.5 inch), ML350 Gen9 Base (2.5 inch), ML350 Gen9 Entry (2.5 inch), ML350 Gen9 Performance (2.5 inch), ML350e Gen8 v2 (2.5 inch), ML350p Gen8 (2.5 inch)
HPE ProLiant SL Series: SL250s Gen8 2U PCIe Gen3 Left Tray (2.5 inch), SL250s Gen8 2U PCIe Gen3 Right Tray (2.5 inch), SL250s Gen8 Left Tray (2.5 inch), SL250s Gen8 Right Tray (2.5 inch), SL270s Gen8 1U Left Half Width Tray (2.5 inch), SL270s Gen8 1U Right Half Width Tray (2.5 inch), SL270s Gen8 Base 4U Left Half Width Tray (2.5 inch), SL270s Gen8 Base 4U Right Half Width Tray (2.5 inch), SL270s Gen8 SE 4U Left Tray (2.5 inch), SL270s Gen8 SE 4U Right Tray (2.5 inch)
HPE ProLiant WS Series: WS460c Gen9 Graphics (2.5 inch), WS460c Gen9 Graphics Expansion (2.5 inch)
HPE ProLiant XL Series: XL170r Gen9 (2.5 inch), XL190r Gen9 (2.5 inch), XL220a Gen8 v2 (2.5 inch), XL230a Gen9 Compute Tray (2.5 inch), XL230a Gen9 Compute Tray (12G) (2.5 inch), XL230a Gen9 Compute Tray (6G) (2.5 inch), XL250a Gen9 Accelerator Tray (2.5 inch)
