Description
Main Information

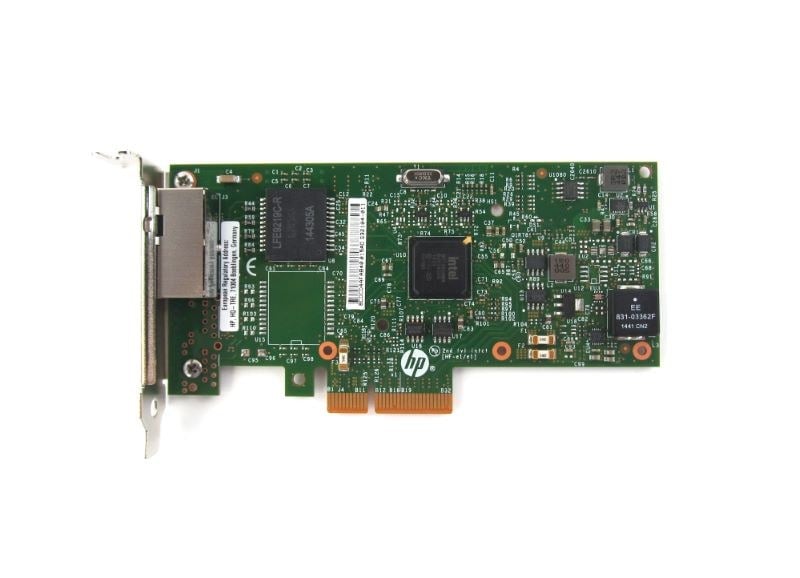

The 656241-001 HPE 361T 1Gb 2 Port PCIe 2.0×4 10MB Network Adapter is a network card designed for use with Hewlett Packard Enterprise (HPE) servers. It is a PCIe 2.0×4 card, meaning it uses the PCIe 2.0 interface and has a width of 4 lanes.
The card has two ports, allowing for the connection of two separate network cables. Each port supports 1 Gigabit per second (1Gb) speeds, providing high-speed data transfer over the network.
The adapter also has a 10MB buffer, which is a temporary storage area for data being transmitted or received over the network. This buffer helps to ensure smooth data transfer and can help prevent data loss in case of network congestion.
General Compatibility
The HPE 361T 1Gb 2 Port PCIe 2.0×4 10MB Network Adapter (part number 656241-001) is a network adapter that is compatible with a wide range of devices and systems. It is designed to work with servers and workstations that have a PCIe 2.0×4 slot available, which is a common expansion slot found on many modern computers.
This adapter provides two 1 Gigabit Ethernet ports, which means that it can connect to two separate network connections at the same time. This allows for increased network bandwidth and redundancy, as well as the ability to connect to multiple networks or VLANs.
The adapter also supports a maximum data transfer rate of 10MB, which is more than enough for most general networking tasks. This allows for fast and efficient data transfer, making it ideal for use in environments where large amounts of data need to be transferred quickly.
In terms of compatibility, the HPE 361T 1Gb 2 Port PCIe 2.0×4 10MB Network Adapter is generally compatible with a wide range of operating systems, including Windows, Linux, and VMware. It also supports a wide range of network protocols, including TCP/IP, IPv4, IPv6, and more.
Interfaces of 2 Ports Network Adapter
The 656241-001 HPE 361T 1Gb 2 Port PCIe Network Adapter is a hardware component that provides connectivity for computer systems to a network. It is designed for use with HPE servers and workstations and uses the PCIe interface to connect to the system’s motherboard.
The adapter has two ports, which allows for connection to two separate network devices or networks. The ports are capable of transferring data at a rate of 1 Gbps (gigabit per second), which is a high-speed data transfer rate that allows for fast and efficient data transfer.
The adapter is compatible with various network protocols such as TCP/IP, TCP, and UDP, and it also supports advanced features such as VLAN tagging, Jumbo frames, and PXE boot. This allows for a wide range of network configurations and options, making it a versatile and flexible networking solution.
Main Specifications:
Manufacturer: HPE
MPN: 656241-001
Type: Networking
Adapter Type: 2-Port Adapter
Form Factor: Plug-in card-low profile
Interface (Bus) Type: PCI Express 2.0 x4
PCI Specification Revision: PCIe 2.0
SKU: 656241-001
Dimensions & Weight
Depth: 5.3 in
Height: 2.5 in
Networking:
Ports: Gigabit Ethernet x 2
Connectivity Technology: Wired
Cabling Type: Ethernet 10Base-T, Ethernet 100Base-TX, Ethernet 1000Base-T
Data Link Protocol: 10Mb LAN, 100Mb LAN, GigE
Data Transfer Rate: 1 Gbps
Remote Management Protocol: SNMP
Status Indicators: Link activity, port transmission speed
Features: Auto-negotiation, wake on LAN (WOL), network fault tolerance (NFT), Jumbo Frames support, PXE support, Large Send Offload (LSO), Energy Efficient Ethernet
Compliant Standards: IEEE 802.3, IEEE 802.3u, IEEE 802.1Q, IEEE 802.3ab, IEEE 802.3x, IEEE 802.3ad (LACP), IEEE 802.1as, IEEE 802.3az
Processor/Memory:
Processor: 1 x I350-Intel
Expansion / Connectivity
Interfaces: 2 x 1000Base-T – RJ-45
Compatible Slots: 1 x PCI Express 2.0 x4 – low-profile
Miscellaneous
Included Accessories: Low-profile bracket
Compliant Standards: FCC Class B certified, UL, VCCI Class B ITE, CISPR 22 Class B, DOC-B, EN 60950, UL 1950, VCCI-II, WHQL, EN55022 Class B, ICES-003 Class B, MIC Class B, WEEE, RoHS, BSMI Class A
System Requirements:
OS Required: SuSE Linux Enterprise Server, Microsoft Windows Server 2008, Microsoft Windows HPC Server 2008, Oracle Solaris 10, Red Hat Enterprise Linux 6.1, VMware ESX 4.1, VMware ESXi 4.1, VMware ESXi 5, Red Hat Enterprise Linux 5.7, Citrix XenServer 6.0
Environmental Parameters
Min Operating Temperature: 32 °F
Max Operating Temperature: 131 °F
Humidity Range Operating: 10 – 90% (non-condensing)
Compatibility:
ProLiant DL Series: DL165 G7 DL580 G7 DL585 G7 DL980 G7 DL160 G8 G9 (Gen8 Gen9) DL320e G8 G9 (Gen8 Gen9) DL360 G10 (Gen10) DL360e G8 G9 (Gen8 Gen9) DL360p G8 G9 (Gen8 Gen9) DL380 G10 (Gen10) DL380e G8 G9 (Gen8 Gen9) DL380p G8 G9 (Gen8 Gen9) DL385 G10 (Gen10) DL385p G8 G9 (Gen8 Gen9) DL560 G8 G9 (Gen8 Gen9) DL560 G10 (Gen10) DL580 G10 (Gen10)
ProLiant ML Series: ML110 G10 (Gen10) ML310e G8 G9 (Gen8 Gen9) ML350 G10 (Gen10) ML350e G8 G9 (Gen8 Gen9) ML350p G8 G9 (Gen8 Gen9)
ProLiant SL Series: SL230s G8 G9 (Gen8 Gen9) SL250s G8 G9 (Gen8 Gen9) SL270s G8 G9 (Gen8 Gen9)
