Description
Details Information

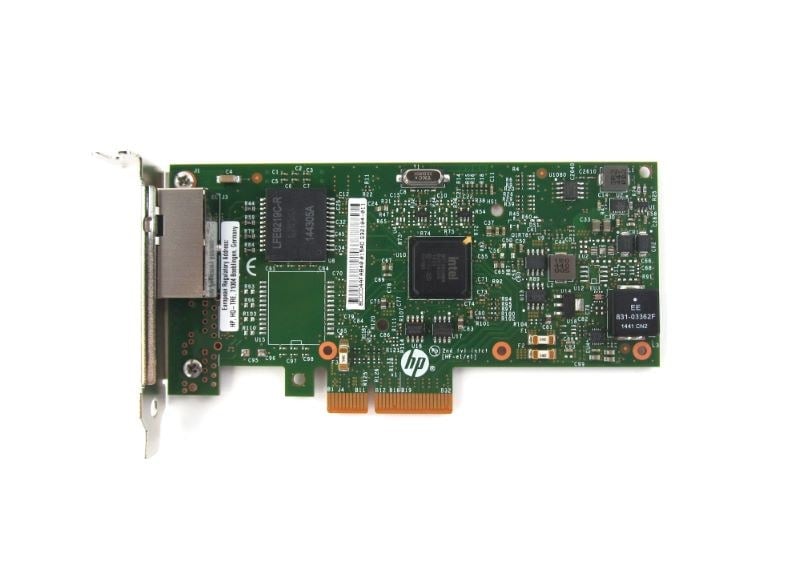

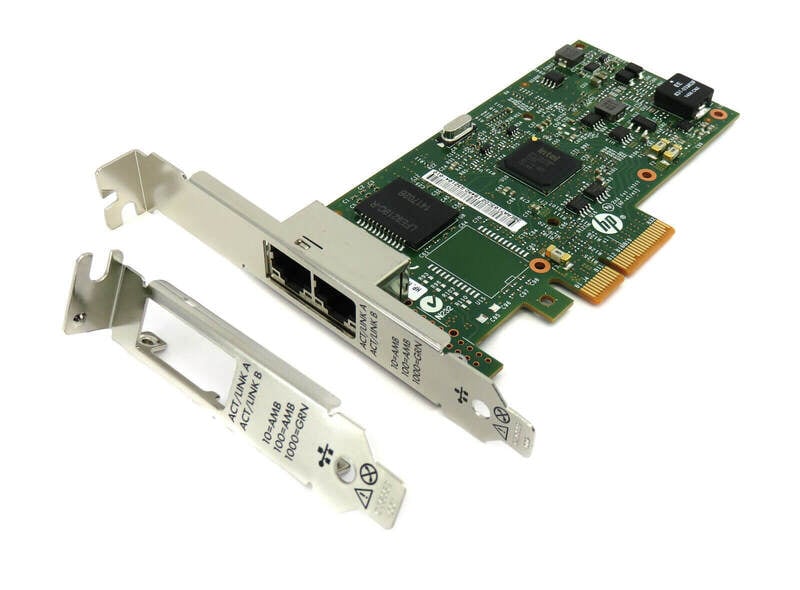

The 656241-001 HPE 361T 1Gb 2 Port PCIe 2.0×4 10MB Network Adapter is a network card designed for use in HPE servers and workstations. It is a PCIe 2.0×4 card, meaning it uses the PCIe 2.0 interface with a 4 lane configuration. It has two ports, allowing for connections to multiple networks or devices. The card is capable of 1 Gb/s data transfer speeds, and also has a 10MB buffer memory. This adapter is designed to provide high-speed network connectivity and improved performance for the host server or workstation.
High Performance
The 656241-001 HPE 361T 1Gb 2 Port PCIe 2.0×4 10MB Network Adapter is a high-performance network adapter designed for use with HPE servers and other systems. It features two 1 Gb Ethernet ports that provide fast and reliable network connectivity, and uses the PCIe 2.0×4 interface for maximum performance and bandwidth. The adapter also has a 10MB buffer size, which helps to ensure smooth and efficient data transfer. Overall, this network adapter is a powerful and reliable solution for businesses and organizations that require high-speed network connectivity for their servers and other systems.
Data Protection and Security
The HPE 361T 1Gb 2 Port PCIe 2.0×4 10MB Network Adapter is a network adapter designed for use in HPE servers and workstations. It features two ports, each capable of providing a maximum data transfer rate of 1 Gbps. It is designed to be used with the PCIe 2.0×4 interface, which provides a high-speed data transfer rate of up to 10MB per second.
The adapter is designed with data protection and security features to ensure that your data is safe and secure. These features include Advanced Encryption Standard (AES) encryption, which encrypts data as it is transmitted over the network. This ensures that any data that is intercepted by an unauthorized party will be unreadable.
Another feature is the Secure Boot feature, which prevents unauthorized software from being loaded onto the adapter. This ensures that only authorized software is running on the adapter, which helps to prevent malware and other malicious software from being installed on your system.
The HPE 361T also includes a variety of other security features, such as support for network protocols like IPv6 and VLAN, as well as support for advanced network features like Quality of Service (QoS) and load balancing. These features allow you to optimize your network performance and ensure that your data is transmitted securely and efficiently.
Main Specifications:
Manufacturer: HPE
MPN: 656241-001
Type: Networking
Adapter Type: 2-Port Adapter
Form Factor: Plug-in card-low profile
Interface (Bus) Type: PCI Express 2.0 x4
PCI Specification Revision: PCIe 2.0
SKU: 656241-001
Dimensions & Weight
Depth: 5.3 in
Height: 2.5 in
Networking:
Ports: Gigabit Ethernet x 2
Connectivity Technology: Wired
Cabling Type: Ethernet 10Base-T, Ethernet 100Base-TX, Ethernet 1000Base-T
Data Link Protocol: 10Mb LAN, 100Mb LAN, GigE
Data Transfer Rate: 1 Gbps
Remote Management Protocol: SNMP
Status Indicators: Link activity, port transmission speed
Features: Auto-negotiation, wake on LAN (WOL), network fault tolerance (NFT), Jumbo Frames support, PXE support, Large Send Offload (LSO), Energy Efficient Ethernet
Compliant Standards: IEEE 802.3, IEEE 802.3u, IEEE 802.1Q, IEEE 802.3ab, IEEE 802.3x, IEEE 802.3ad (LACP), IEEE 802.1as, IEEE 802.3az
Processor/Memory:
Processor: 1 x I350-Intel
Expansion / Connectivity
Interfaces: 2 x 1000Base-T – RJ-45
Compatible Slots: 1 x PCI Express 2.0 x4 – low-profile
Miscellaneous
Included Accessories: Low-profile bracket
Compliant Standards: FCC Class B certified, UL, VCCI Class B ITE, CISPR 22 Class B, DOC-B, EN 60950, UL 1950, VCCI-II, WHQL, EN55022 Class B, ICES-003 Class B, MIC Class B, WEEE, RoHS, BSMI Class A
System Requirements:
OS Required: SuSE Linux Enterprise Server, Microsoft Windows Server 2008, Microsoft Windows HPC Server 2008, Oracle Solaris 10, Red Hat Enterprise Linux 6.1, VMware ESX 4.1, VMware ESXi 4.1, VMware ESXi 5, Red Hat Enterprise Linux 5.7, Citrix XenServer 6.0
Environmental Parameters
Min Operating Temperature: 32 °F
Max Operating Temperature: 131 °F
Humidity Range Operating: 10 – 90% (non-condensing)
Compatibility:
ProLiant DL Series: DL165 G7 DL580 G7 DL585 G7 DL980 G7 DL160 G8 G9 (Gen8 Gen9) DL320e G8 G9 (Gen8 Gen9) DL360 G10 (Gen10) DL360e G8 G9 (Gen8 Gen9) DL360p G8 G9 (Gen8 Gen9) DL380 G10 (Gen10) DL380e G8 G9 (Gen8 Gen9) DL380p G8 G9 (Gen8 Gen9) DL385 G10 (Gen10) DL385p G8 G9 (Gen8 Gen9) DL560 G8 G9 (Gen8 Gen9) DL560 G10 (Gen10) DL580 G10 (Gen10)
ProLiant ML Series: ML110 G10 (Gen10) ML310e G8 G9 (Gen8 Gen9) ML350 G10 (Gen10) ML350e G8 G9 (Gen8 Gen9) ML350p G8 G9 (Gen8 Gen9)
ProLiant SL Series: SL230s G8 G9 (Gen8 Gen9) SL250s G8 G9 (Gen8 Gen9) SL270s G8 G9 (Gen8 Gen9)
