Description
Unmatched Performance
A 2TB 7.2K RPM SATA 6Gbps hard drive is a high-capacity storage device that uses the SATA (Serial Advanced Technology Attachment) interface for connectivity. It has a storage capacity of 2 terabytes (TB) and rotates at 7200 revolutions per minute (RPM). The drive is designed for consumer-level storage applications, such as personal computers, home servers, and other non-enterprise use cases.
In comparison to 10TB 7.2K RPM SAS 12Gbps hard drive, a 2TB 7.2K RPM SATA 6Gbps hard drive will generally have a lower storage capacity and lower data transfer rates. However, it may be less expensive and easier to use.
Key specifications of a 2TB 7.2K RPM SATA 6Gbps hard drive include:
- Interface: SATA (Serial Advanced Technology Attachment) with a data transfer rate of 6 Gbps
- Capacity: 2 terabytes (TB)
- Rotational Speed: 7200 RPM
- Form Factor: 3.5-inch
- Sequential Read and Write Speeds: Around 150 MB/s
- Random Read and Write Speeds: Around 70-80 IOPS
- Latency: 4-5 ms
While a 10TB 7.2K RPM SAS 12Gbps hard drive is designed for enterprise-level storage applications, a 2TB 7.2K RPM SATA 6Gbps hard drive is designed for consumer-level storage applications and is typically less expensive and easier to use.
Experience lightning data transfer
A 2TB 7.2K RPM SATA 6Gbps hard drive uses the SATA (Serial Advanced Technology Attachment) interface to connect to a computer or other device. It has a maximum data transfer rate of 6 Gbps which is faster than the previous generation of 3 Gbps SATA. This means that the drive can transfer data at a rate of 6 billion bits per second, providing fast data transfer speeds.
While this drive is not as fast as the SAS drive with 12Gbps, it’s still able to deliver fast data transfer performance, especially when compared to older hard drives with slower interfaces. The sequential read and write speeds of around 150MB/s is capable of handling most of the everyday use cases, such as booting the operating system, launching programs and loading files.
Additionally, the drive’s random read and write speeds of around 70-80 IOPS, allow for fast access to small, randomly scattered pieces of data, which is useful for applications such as gaming, multimedia, and other demanding tasks.
Energy Efficient
A 2TB 7.2K RPM SATA 6Gbps hard drive can be energy efficient depending on the design and features of the drive. Many hard drives include power-saving modes and spin-down features that can help to reduce energy consumption.
Power-saving modes allow the drive to enter a low-power state when it is not in use, which can help to reduce energy consumption. Spin-down features allow the drive to stop spinning when it is not in use, which can also help to reduce energy consumption.
Additionally, some hard drives may include advanced power management features, such as Adaptive Power Management, which allows the drive to adjust its power consumption based on the workload, further reducing power usage.

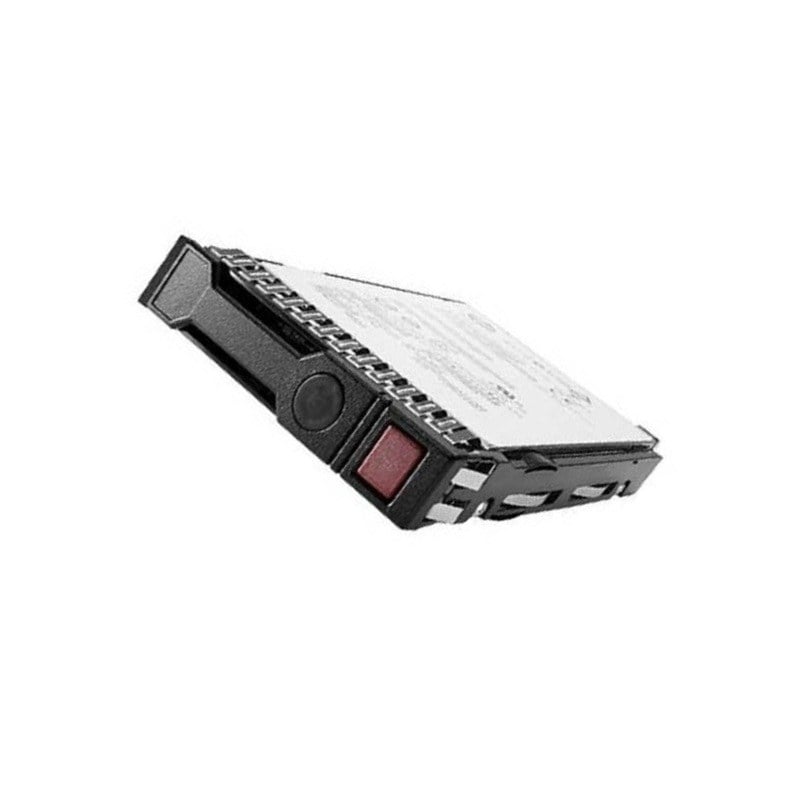

Product Information:
Manufacturer Name: HPE
MPN: 658102-001
Type: Hard Drive – Hot-Swap
HDD Type: SATA-6GBPS
SKU: 658102-001
Model Number: MB2000GBUPB
Model Number: MB2000GCEHK
Model Number: MB2000GCQDD
Model Number: MB2000GCQXQ
Seagate Model Number: ST2000NM0011
Assembly Part Number: 614827-002
Assembly Part Number: 638519-002
Assembly Part Number: 658084-003
Assembly Part Number: 682155-001
Technical Information
Capacity: 500 GB
Form Factor: 3.5 Inch x 1/3H
Interface: SATA 6GBPS
Features: Native Command Queuing (NCQ)
Performance
Drive Transfer Rate: 300 MBPS (External)
Seek Time: 8.5 ms (Average) / 17 MS (Max)
Track-to-Track Seek Time: 1 MS
Spindle Speed: 7200 RPM
Dimension and Weight
Width: 4 Inch
Depth: 5.8 Inch
Height: 1 Inch
Weight: 1.52 LBS
Expansion & Connectivity
Interfaces: 1 x SATA 6 GB/S
Compatible Bay: 3.5 Inch x 1/3H
Environmental Parameters
Min Operating Temperature: 41 °F
Max Operating Temperature: 131 °F
Compatibility
ProLiant BL Series: ProLiant BL420c (G8 G9) BL460c (G8 G9) BL465c (G8 G9)
ProLiant DL Series: DL20 (G9) DL60 (G9) DL80 (G9)
ProLiant DL Series: DL120 (G8 G9) DL160 (G8 G9) DL180 (G8 G9) DL320e (G8 G9) DL360e (G8 G9)
ProLiant DL Series: DL360p (G8 G9) DL380e (G8 G9) DL380p (G8 G9) DL388 (G9)
ProLiant ML Series: ML110 (G8 G9) ;ML150 (G8 G9) ML310e (G8 G9) ML350 (G8 G9) ML350e (G8 G9)
ProLiant SL Series: SL200t (G8 G9) SL230s (G8 G9) SL250s (G8 G9) SL2500 SL4550 (G8 G9) SL4545 (G8 G9) SL454x
HPE Storage arrays: D3600 D3700
HPE StoreEasy: 1430 1440 1530 1540 1630 1640
