Description
Performance and throughput

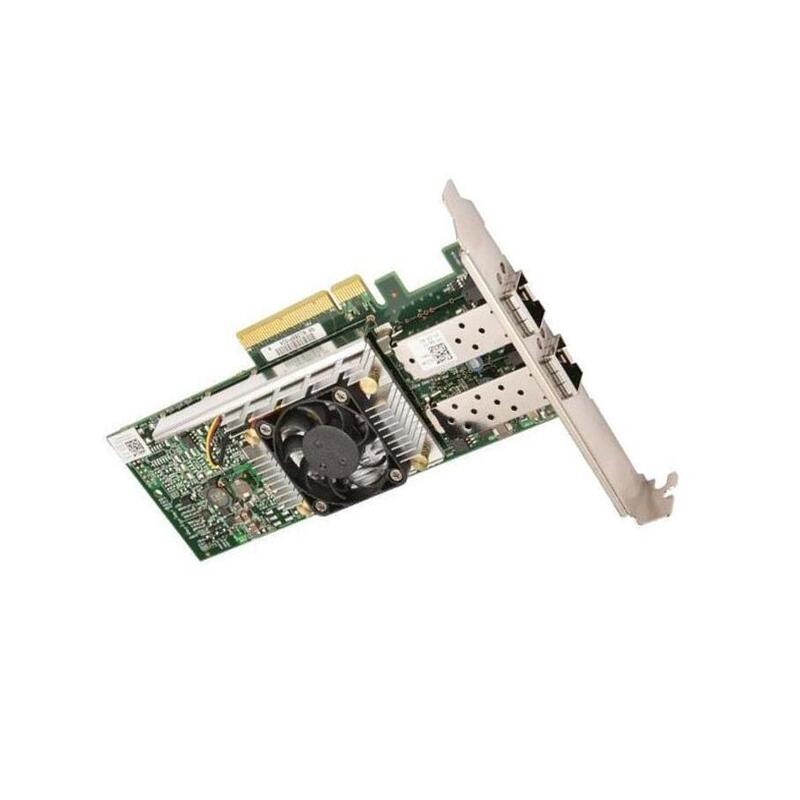

The HPE Ethernet 10GBPS PCI-E 10GB 2-Ports 560SFP+ Network Adapter (part number 669279-001) is a high-performance network adapter designed for use in enterprise environments. It provides two 10 Gbps Ethernet ports, which support SFP+ transceivers for fiber optic connectivity.
In terms of performance, the adapter is capable of delivering high throughput, with a maximum data transfer rate of 20 Gbps. This is achieved through the use of PCI Express 3.0 technology, which provides high-speed data transfer between the adapter and the host system.
In terms of throughput, the adapter can handle large amounts of data, with a maximum packet size of 9.5 KB. This allows for efficient handling of large data packets, such as those used in video streaming or file transfers.
Additionally, the adapter supports advanced features such as hardware offloads and hardware-based packet filtering, which can help to improve performance and reduce the load on the host system.
Installation and setup
- Begin by removing the HPE Ethernet 10GBPS PCI-E 10GB 2-Ports 560SFP+ Network Adapter from its packaging and inspecting it for any damage or defects.
- Next, locate an available PCI-E slot on your computer’s motherboard. This is typically located near the rear of the case and is usually labeled as “PCI-E” or “PCI Express.”
- Carefully insert the network adapter into the PCI-E slot, ensuring that it is securely seated and locked into place.
- Connect the two SFP+ transceivers to the ports on the network adapter. These transceivers will typically be labeled as “Port 1” and “Port 2.”
- Power on your computer and wait for it to fully boot up.
- Open the Device Manager on your computer and locate the new network adapter in the list of devices. Right-click on the adapter and select “Update Driver.”
- Follow the on-screen instructions to install the latest driver for the adapter.
- Once the driver is installed, you should see the adapter listed in the Network Connections section of the Control Panel.
- Configure the adapter’s settings as needed, such as IP address, subnet mask, and gateway.
- Test the connection to ensure that the adapter is working properly and that you are able to connect to the network.
Advanced technologies
- PCI Express (PCI-E) interface: This technology allows for high-speed data transfer between the adapter and the computer’s motherboard.
- 10 Gigabit Ethernet: This technology provides a data transfer rate of 10 gigabits per second, allowing for faster data transfer and improved network performance.
- SFP+ (Small Form-factor Pluggable+) interface: This technology allows for the use of small, hot-pluggable transceiver modules for optical or copper connectivity.
- Dual-port design: This adapter has two ports, allowing for the connection of multiple devices to the network.
- Advanced Error Correction: This technology helps to ensure accurate data transfer by detecting and correcting errors in the transmission.
- Virtualization support: This adapter is optimized for use in virtualized environments, providing improved performance and scalability.
- Energy Efficient Ethernet (EEE): This technology reduces power consumption by automatically adjusting the speed of the adapter based on network traffic.
- Advanced Quality of Service (QoS): This technology allows for the prioritization of network traffic, ensuring that important data is transmitted first and reducing congestion on the network.
Main Specifications:
Manufacturer: HPE
MPN: 669279-001
Option Part Number: 665249-B21
Type: Networking
Adapter Type: Network Adapter (HPE Ethernet 10Gb 2-port 560SFP+ Adapter)
Form Factor: Stand Up – Plug-in Card
Interface (Bus) Type: PCI Express 2.0 x8
SKU: 669279-001
PCI Specification Revision: PCI 2.0
Bundled with: Low Profile Bracket
Networking:
Connectivity Technology: Wired
Data Link Protocol: 10 Gigabit Ethernet
Data Rate: 2 port, each at 10Gbps
Features: VLAN support, IPv6 support, Jumbo Frames support, IPv4 support, PXE support, TCP Segmentation Offload (TSO)
Network / Transport Protocol: TCP/IP, UDP/IP
Ports: 10Gb Ethernet x 2
Status Indicators: Port status, link/activity
IEEE Compliance: 802.3, 802.1ab, 802.3x, 802.3ad, 802.1p/ 802.1q, 802.3ae, 802.1Qau, 1588
Expansion / Connectivity
Compatible Slots: 1 x PCI Express 2.0 x8
Interfaces: 2 x 10Gb Ethernet – SFP+
Processor / Memory:
Network Processor: Intel® 82599 Controller (Intel® Ethernet Converged Network Adapter X520-DA2)
RAM: 256 MB
Power:
Power Consumption Operational: 10 Watt
Miscellaneous
Compliant Standards: FCC Class A certified, UL, BSMI, VCCI Class B ITE, BSMI CNS 13438 Class B, ICES-003, EN55024, CISPR 22, EN55022 Class B, FCC Part 15, WEEE, RoHS, EN 61000-3-2:2006, EN 61000-3-3:2008
Environmental Parameters
Operating Temperature: 0° to 55°C (32° to 131°F)
Non-Operating Temperature: -65° to 85° C (-85° to 185° F)
Operating Humidity: 10% to 90% non-condensing
Non-operating Humidity: 5% to 95% non-condensing
Compatibility:
HPE ProLiant DL Series: DL160 Gen8, DL160 Gen8 Base, DL180 Gen9, DL180 Gen9 Base, DL180 Gen9 Entry, DL180 Gen9 Storage, DL20 Gen9, DL20 Gen9 Entry, DL20 Gen9 Performance, DL20 Gen9 Solution, DL320e Gen8, DL320e Gen8 Base, DL320e Gen8 Entry, DL320e Gen8 Performance, DL360e Gen8, DL360e Gen8 Base, DL360e Gen8 Entry, DL360e Gen8 Performance, DL360e Gen8 Special Server, DL360p Gen8, DL360p Gen8 CMS, DL360p Gen8 Special Server, DL380 Gen9 High Performance, DL380e Gen8, DL380e Gen8 Base, DL380e Gen8 Entry, DL380e Gen8 High Performance, DL380e Gen8 Storage, DL380p Gen8 Special, DL385p Gen8, DL385p Gen8 Dedicated Workload, DL385p Gen8 Entry, DL385p Gen8 Maximized Consolidation, DL385p Gen8 Storage, DL560 Gen8, DL560 Gen8 Base, DL560 Gen8 Entry, DL560 Gen8 Performance, DL560 Gen9, DL560 Gen9 Base, DL560 Gen9 Entry, DL560 Gen9 Performance, DL80 Gen9 Entry
HPE ProLiant ML Series: ML110 Gen9, ML110 Gen9 Base, ML110 Gen9 Entry, ML30 Gen9, ML30 Gen9 Base, ML30 Gen9 Entry, ML30 Gen9 Performance, ML30 Gen9 Solution, ML310e Gen8, ML310e Gen8 Base, ML310e Gen8 Entry, ML310e Gen8 Performance, ML310e Gen8 v2, ML350 Gen9, ML350 Gen9 Base, ML350 Gen9 Entry, ML350 Gen9 Performance, ML350e Gen8, ML350e Gen8 Base, ML350e Gen8 Entry, ML350e Gen8 Performance, ML350e Gen8 v2, ML350e Gen8 v2 Base, ML350p Gen8, ML350p Gen8 Special Server
HPE ProLiant XL Series: XL170r Gen9, XL190r Gen9, XL270d Gen9
HPE SimpliVity 380 Gen9 Node
HPE StoreEasy 1450, 1850, 3850 Gateway Single Node
