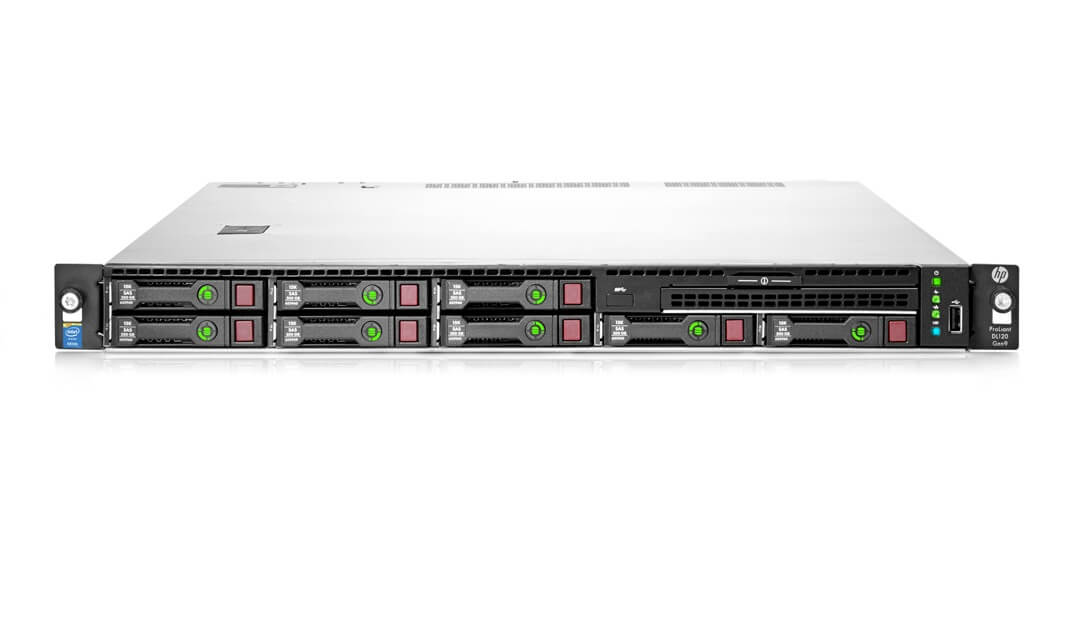

Product Overview of 670633-S01 HPE Rack Server
The HPE ProLiant DL360p G8 is a 1U rack server designed to meet the demands of modern data centers. It is equipped with an Intel Xeon E5-2620 2GHz processor, making it capable of handling a wide range of applications and workloads. In this article, we will take a closer look at the key features and specifications of this server.
Processor
The HPE ProLiant DL360p G8 is powered by an Intel Xeon E5-2620 2GHz processor. This processor is part of the Intel Xeon E5-2600 family of processors, which are designed for use in high-performance computing environments. It has six cores and 12 threads, making it capable of handling demanding workloads.
Memory
The server supports a maximum of 768GB of memory, which is divided into 24 memory slots. It uses DDR3 Registered (RDIMM) memory, which is designed for high-performance computing environments. The server supports memory speeds of up to 1866MHz, which allows for fast data transfer rates.
Storage
The HPE ProLiant DL360p G8 supports up to eight SFF (small form factor) hot-plug SAS/SATA drives. It also has a Smart Array P420i RAID controller, which provides RAID levels 0, 1, 10, 5, and 50. The server also supports up to two optional PCIe 3.0 I/O slots.
Network
The server has four embedded Gigabit Ethernet ports, which provide high-speed connectivity. It also has an optional FlexibleLOM (Flexible LAN on Motherboard) card, which allows for additional network connectivity options. The server also supports HP iLO (Integrated Lights-Out) management, which allows for remote management of the server.
Power Supply
The HPE ProLiant DL360p G8 comes with two hot-plug power supplies, which provide redundant power to the server. Each power supply has a capacity of 460W, which provides sufficient power to run the server and its components.
Operating System
The server supports a wide range of operating systems, including Windows Server, Red Hat Enterprise Linux, SUSE Linux Enterprise Server, and VMware ESXi. This makes it a versatile server that can be used in a variety of environments.
Management
The server comes with HP iLO management software, which provides remote management capabilities. It also has a dedicated iLO port, which allows for secure remote access to the server. The server also supports HP Insight Control, which provides a centralized management console for managing multiple servers.
Summary, the HPE ProLiant DL360p G8 is a powerful and versatile server that is designed for use in high-performance computing environments. It is equipped with an Intel Xeon E5-2620 2GHz processor, which provides sufficient power to run demanding workloads. The server also supports a wide range of memory, storage, and network options, which allows for customization to meet specific requirements. With its remote management capabilities and support for a wide range of operating systems, the HPE ProLiant DL360p G8 is an excellent choice for modern data centers.
General Information about the 670633-S01
- Manufacturer: Hewlett Packard Enterprise(HPE)
- Part Number or SKU# 670633-S01
- Type: Server
- Sub-Type: ProLiant DL360P
- Product Name: Proliant Ml360p G8 1u-Rack Server (S-Buy)
Processor & Chip-set
- Processor Type: Intel Xeon E5-2620 / 2 GHz
- Compatible Slots: Lga2011 Socket
- Multi-Core Technology: Hexa-Core (6-Core)
- Quickpath Interconnect: 7.2 Gt/S
- 64 Bit Computing: Yes
- Installed Qty: 1
- Max Supported Qty: 2
- Upgradability: Upgradable
- Chipset Model: Intel C600
- Data Bus Speed: 1333 Mhz
Cache Memory
- Type: L3 Cache
- Installed Size: 15 Mb
- Cache Per Processor: 15 Mb
Memory
- Installed Ram Size: 16 Gb / 384 Gb (Max)
- Technology: Ddr3 Sdram
- Memory Speed: 1333 Mhz
- Memory Specifications Compliance: Pc-3 10600
- Form Factor: Dimm 240-Pin
- Number Of Total Memory Slots: 24
- Features: Registered, Quad Channel Memory Architecture, Hp Smartmemory
- Configuration Features: 2 X 8 Gb
- Ram Supported
- PC3-12800 – 384 GB – Registered
- PC3-10600 – 768 GB
- PC3-10600 – 128 GB – Unbuffered – Advanced Ecc
Storage
- Hard Drive: None
- Maximum Internal Storage Support:
- Hot Plug Sff Sas 8.0tb 8 X 1tb
- Hot Plug Sff Sata 8.0tb 8 X 1tb
- Hot Plug Lff Sas 12.0tb 4 X 3tb (With Optional Lff Drive Cage)
- Hot Plug Lff Sata 12.0tb 4 X 3tb (With Optional Lff Drive Cage)
- Hot Plug Sff Sas Ssd 6.4tb 8 X 800gb
- Hot Plug Sff Sata Ssd 3.2tb 8 X 400gb
- Hot Plug Lff Sata Ssd 1.6tb 4 X 400gb (With Optional Lff Drive Cage)
- Optical Storage Type: Dvd-Writer
Storage Controller
- Storage Controller Type: 1 X Raid – Plug-In Card – Pci Express 3.0 X8
- Controller Interface Type: Serial Ata-600 / Sas 2.0
- Storage Controller Name: Smart Array P420i
- Raid Levels: 0, 1, 1+0
Card Reader
- Memory Card Reader: Yes
- Supported Flash Memory Cards: Secure Digital (Sd) Card
Display & Graphics
- Graphics Controller Manufacturer: Matrox
- Graphics Controller Model: G200
Network & Communication
- Networking: Network Adapter – Integrated
- Ethernet Ports: 4 X Gigabit Ethernet
- Ethernet Controller(S): Hpe 331flr
- Data Link Protocol: Ethernet, Fast Ethernet, Gigabit Ethernet
- Remote Management Protocol: Ipmi 2.0, Smash Clp
- Remote Management Controller: Integrated Lights-Out 4
- Features: Wake On Lan (Wol), Pxe Support
- Compliant Standards: Ieee 802.3, Ieee 802.3u, Ieee 802.1q, Ieee 802.3ab, Ieee 802.1p, Ieee 802.3ad (LACP)
Power Description
- Device Type: Power Supply – Hot-Plug
- Power Redundancy: Optional
- Power Redundancy Scheme: 1+1 (With Optional Power Supply)
- Installed Qty: 2
- Max Supported Qty: 2
- Voltage Required: Ac 120/230 V ( 50/60 Hz )
- Power Provided: 460 Watt
