Description
Product overview for the HPE 670852-S01

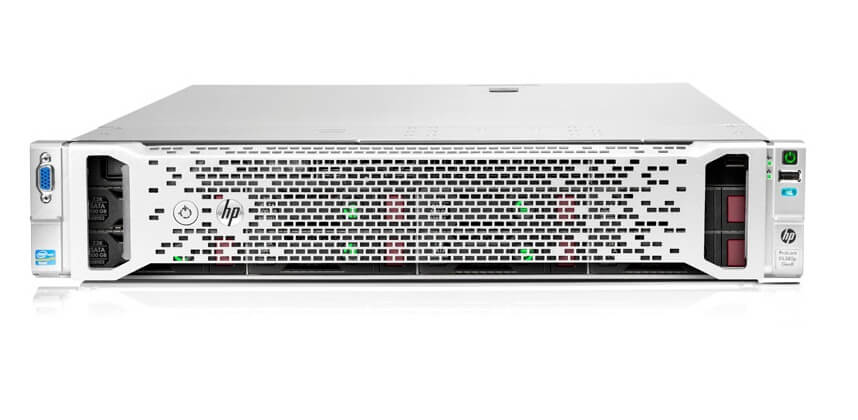

The HPE 670852-S011 Proliant DL380p Gen8 (Smart Buy Model) is a robust 2U rack server designed to meet the demanding requirements of modern business environments. Packed with powerful features, this server offers enhanced performance, reliability, and scalability. In this detailed overview, we will delve into the key specifications and features that make the HPE Proliant DL380p Gen8 a smart choice for businesses seeking a versatile and high-performance server solution.
Form Factor and Design
The Proliant DL380p Gen8 comes in a 2U rack form factor, making it ideal for data center deployment. Its sleek design and compact size allow for efficient use of rack space while providing easy accessibility for maintenance and upgrades.
Processor Power
At the heart of this server are two Intel Xeon 8-core E5-2670 processors, each running at a base clock speed of 2.6 GHz. This formidable processing power ensures smooth multitasking, efficient data processing, and optimal performance for a wide range of applications.
Memory
The Proliant DL380p Gen8 is equipped with 32GB of DDR3 SDRAM, organized into 4x8GB modules. This memory configuration not only supports the server’s processing capabilities but also enhances overall system responsiveness, ensuring quick access to frequently used data.
Network Connectivity
For seamless network connectivity, the server features an Ethernet 1GB 4P 331FLR adapter. This adapter allows for high-speed data transfers and reliable network connections, making the DL380p Gen8 suitable for a variety of networking scenarios.
Storage Capabilities
The Smart Array P420i with 1GB FBWC (Flash Backed Write Cache) is a key component of the DL380p Gen8’s storage subsystem. This controller enhances data protection and accelerates write performance, ensuring data integrity and reliability. The server supports up to 8 Small Form Factor (SFF) drives, providing ample storage capacity for diverse applications.
Power Supply and Efficiency
The Proliant DL380p Gen8 is equipped with dual 750W power supplies, offering redundancy to minimize downtime in case of a power supply failure. The server’s energy-efficient design ensures optimal power usage, contributing to cost savings and environmental sustainability.
Versatility and Scalability
One of the standout features of the DL380p Gen8 is its scalability. The server is designed to accommodate evolving business needs by supporting additional hardware components and upgrades. This scalability ensures that the server can adapt to increasing workloads and demands over time, making it a future-proof investment.
Security Features
Security is a top priority in enterprise environments, and the DL380p Gen8 includes features to safeguard critical data. These may include hardware-based encryption, secure boot options, and other security protocols that protect against unauthorized access and potential data breaches.
Operating System Support
The Proliant DL380p Gen8 is compatible with a variety of operating systems, providing flexibility for businesses with specific software requirements. Whether running Windows Server, Linux distributions, or other supported operating systems, this server can seamlessly integrate into existing IT infrastructures.
Use Cases and Industries
The versatility of the Proliant DL380p Gen8 makes it suitable for a wide range of applications and industries. From virtualization and database management to file serving and cloud computing, this server is well-suited for businesses of varying sizes and IT needs.
General Information about the HPE 670852-S01
- Manufacturer: HPE
- Model Number or SKU# 670852-S01
- Product Type: Server
- Server Type: ProLiant DL380P
Processor and Chipset for the Xeon 2.60GHz Server
- Processor Type: Intel Xeon E5-2670 / 2.6 GHz
- Max Turbo Speed: 3.3 GHz
- Number Of Cores: 8 Cores
- Installed Qty: 2
- Max Supported Qty: 2
- 64-bit Computing: Yes
- Upgradability: Upgradable
- Chipset Type: Intel C600
- Processor Main Features: Hyper-threading Technology, Intel QuickPath Interconnect, Intel Turbo Boost Technology
Cache Memory:
- Cache Memory Type: L3 Cache
- Installed Size: 40 MB
- Cache Per Processor: 20 MB
RAM
- Installed Size: 32 GB / 384 GB (max)
- Technology: DDR3 SDRAM
- Effective Memory Speed: 1333 MHz
- Rated Memory Speed: 1333 MHz
- Memory Specification Compliance: PC3-10600
- Form Factor: DIMM 240-pin
- Slots: 24 (total) / 20 (empty)
- Features: Registered, Dual Rank, Quad Channel Memory Architecture, HP SmartMemory
- Configuration Features: 4 x 8 GB
- RAM Supported:
- PC3-12800 – 384 GB Registered
- PC3-10600 – 768 GB Load-reduced
- PC3-12800 – 128 GB Unbuffered – Advanced ECC
- PC3-10600 – 384 GB Hypercloud
Storage & Optical Storage
- Hard Drive: None
- Optical Drive Type: None
Storage Controller
- Type: 1 x RAID – Integrated – PCIe 3.0 x8
- Controller Interface Type: SATA 6Gb/s / SAS 6Gb/s
- Storage Controller Name: Smart Array P420i with 1GB FBWC
- Channel Qty: 8
- RAID Level: RAID 0, RAID 1, RAID 5, RAID 6, RAID 10
- Buffer Size: 1 GB
Display & Graphics Controllers
- Type: Integrated
- Graphics Processor: Matrox G200
- Video Interfaces: VGA
Network & Communication
- Type: Plug-in Card
- Interface (bus) Type: PCIe x4
- Ethernet Ports: 4 x Gigabit Ethernet
- Ethernet Controller: HP 331FLR
- Data Link Protocol: Ethernet, Fast Ethernet, Gigabit Ethernet
- Remote Management Controller: Integrated Lights-out 4
- Features: Wake On LAN (WOL), PXE Support
- Compliant Standards: IEEE 802.3, IEEE 802.3u, IEEE 802.1q, IEEE 802.3ab, IEEE 802.3ad (LACP)
Expansions & Connectivity
- Expansion Bays Total (Free):
- 1 (total) / 1 (free) x External 5.25 Slim Line
- 8 (total) / 8 (free) x Hot-swap 2.5-inch SFF
- Expansion Slots Total (Free):
- 24 (total) / 20 (free) x DIMM 240-pin
- 2 (total) / 0 (free) x CPU
- 1 (total) / 1 (free) x PCIe 3.0 x16 – Full-length, Full-height
- 1 (total) / 1 (free) x PCIe 3.0 x8 – Half-length, Full-height
- 1 (total) / 1 (free) x PCIe 2.0 x8 – Half-length, Full-height (x4 Mode)
- 1 (total) / 1 (free) x SD Card (internal)
Interfaces & Ports
- 1 x Serial
- 2 x VGA (1 front, 1 rear)
- 4 x LAN (Gigabit Ethernet)
- 1 x HP iLO
- 7 x USB 2.0 (2 front, 4 rear, 1 internal)
Miscellaneous
- Included Accessories:
- HP Ball Bearing Rail Kit
- Cable Management Arm
- Features:
- Administrator Password
- Power-on Password
- Serial Port I/O Control
- Compliant Standards:
- ACPI 2.0b, FCC Class A Certified, EN 61000-3-2, EN55022, ICES-003, EN 61000-3-3, EN55024, CISPR 22, FCC CFR47 Part 15, IEC 60950-1, EN 60950-1, WEEE, BSMI CNS 13438, GB 9254
- Manufacturer Selling Program:
- HP Smart Buy
Power Device
- Device Type: Power Supply – Hot-plug
- Power Redundancy: Yes
- Power Redundancy Scheme: 1+1
- Installed Qty: 2
- Max Supported Qty: 2
- Nominal Voltage: AC 120/230 V (50/60 Hz)
- Power Provided: 750 Watt
- 80 Plus Certification: 80 Plus Platinum
- Efficiency: 94%
In summary, the HPE 670852-S011 Proliant DL380p Gen8 (Smart Buy Model) is a powerful and versatile server solution designed to meet the evolving needs of modern businesses. With its robust hardware configuration, scalability, and advanced management features, the DL380p Gen8 provides a reliable foundation for diverse IT environments. Whether you are a small business looking to expand your IT infrastructure or a large enterprise in need of a high-performance server, the Proliant DL380p Gen8 is a compelling choice that combines performance, efficiency, and scalability.
