Description
Product Overview

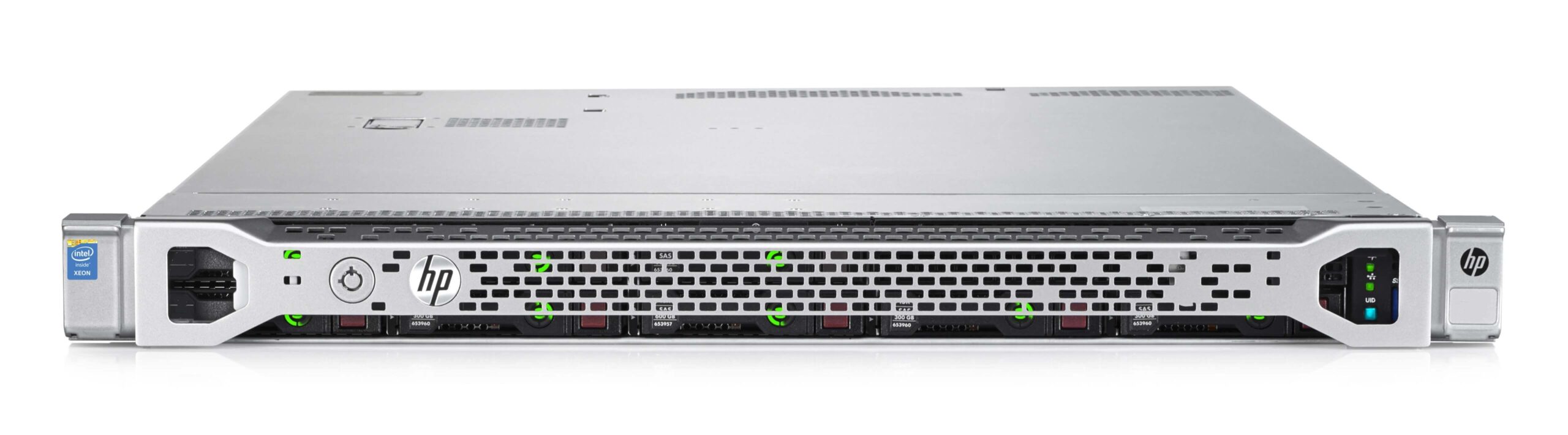

The 677198-001 HPE Proliant DL360p G8 Rack Server is a powerful computing device designed for enterprise-level applications. It features 2 Intel Xeon E5-2603 processors with a clock speed of 1.8GHz, making it capable of handling demanding workloads.
Hardware Specifications
The HPE Proliant DL360p G8 Rack Server is equipped with two Intel Xeon E5-2603 processors, which feature 4 cores and 8 threads each. These processors have a base clock speed of 1.8GHz and can boost up to 2.5GHz. Additionally, the server has 16GB of DDR3 RAM, which can be upgraded to a maximum of 768GB.
Storage and Connectivity
The server has a storage capacity of up to 8 SFF (small form factor) drives or 4 LFF (large form factor) drives. It also has a Smart Array P420i RAID controller, which supports RAID 0, 1, 10, 5, 50, 6, and 60 configurations. The server also has 4x Gigabit Ethernet ports, which provide fast and reliable network connectivity.
Management and Security
The HPE Proliant DL360p G8 Rack Server comes with HPE iLO 4 (Integrated Lights-Out 4) management technology, which allows for remote management and monitoring of the server. The iLO 4 technology also provides advanced security features, such as secure boot, secure erase, and encryption.
Power Efficiency
The server has a 460W power supply, which is designed to be highly efficient, helping to reduce energy costs. Additionally, the server has a design that allows for easy maintenance and serviceability, which can further reduce downtime and improve efficiency.
Use Cases
The HPE Proliant DL360p G8 Rack Server is a versatile computing device that can be used for a variety of enterprise-level applications. Some common use cases include:
- Virtualization: The server can be used to host virtual machines, allowing for greater efficiency and flexibility in managing computing resources.
- Database Management: The server’s powerful processors and high RAM capacity make it well-suited for database management applications, such as SQL Server or Oracle.
- High-Performance Computing: The server’s powerful processors and fast network connectivity make it ideal for running high-performance computing applications, such as scientific simulations or financial modeling.
Summary
The 677198-001 HPE Proliant DL360p G8 Rack Server is a powerful computing device that is well-suited for a variety of enterprise-level applications. Its powerful processors, high RAM capacity, and fast network connectivity make it a versatile device that can be used for virtualization, database management, and high-performance computing. Additionally, the server’s efficient design and advanced security features make it a reliable and secure choice for businesses of all sizes.
General Information
- Manufacturer: Hewlett Packard Enterprise(HPE)
- Manufacturer Part Number: 677198-001
- Type: Server
- Sub-Type: Proliant Dl360P
- Product Name: Proliant Ml360p G8- 2-Way 1u Rack Server
Processor & Chipset
- Processor Type: Intel Xeon E5-2603 / 1.80 GHz
- Multi-Core Technology: Quad-Core (4-Core)
- 64 Bit Computing: Yes
- Installed Qty: 2
- Max Supported Qty: 2
- Upgradability: Upgradable
- Chipset Model: Intel C600
Cache Memory
- Installed Size : L3 Cache 20 Mb
- Cache Per Processor : 10 Mb
Memory
- Installed Ram Size: 8 Gb / 384 Gb (Max)
- Technology: Ddr3 Sdram
- Form Factor: Dimm 240-Pin
- Number Of Total Memory Slots: 24
- Configuration Features: 2 X 4 Gb
Ram Supported
- Pc3-12800 – 384 Gb – Registered
- Pc3-10600 – 768 Gb
- Pc3-10600 – 128 Gb – Unbuffered – Advanced Ecc
Storage Controllers
- Hard Drive: None
- Optical Drive Type: None
- Type : Card Reader
- Supported Flash Memory Cards : Sd Memory Card
- Storage Controller Type: 1 X Raid – Plug-In Card – Pci Express 3.0 X8
- Storage Controller: Smart Array P420i
- Raid Supported: Yes
- Raid Levels: Raid 0, Raid 1, Raid 10
Display & Graphics
- Graphics Controller Manufacturer: Matrox
- Graphics Controller Model: G200
- Video Interfaces : Vga
Network & Communication
- Type : Integrated
- Ethernet Ports : 4 X Gigabit Ethernet
- Ethernet Controller : Hpe 331flr
- Data Link Protocol : Ethernet, Fast Ethernet, Gigabit Ethernet
- Remote Management Protocol : Ipmi 2.0, Smash Clp
- Remote Management Controller : Integrated Lights-Out 4
- Features : Wake On Lan (Wol), Pxe Support
- Compliant Standards : Ieee 802.3, Ieee 802.3u, Ieee 802.1q, Ieee 802.3ab, Ieee 802.1p, Ieee 802.3ad
