Description
Hardware Specifications

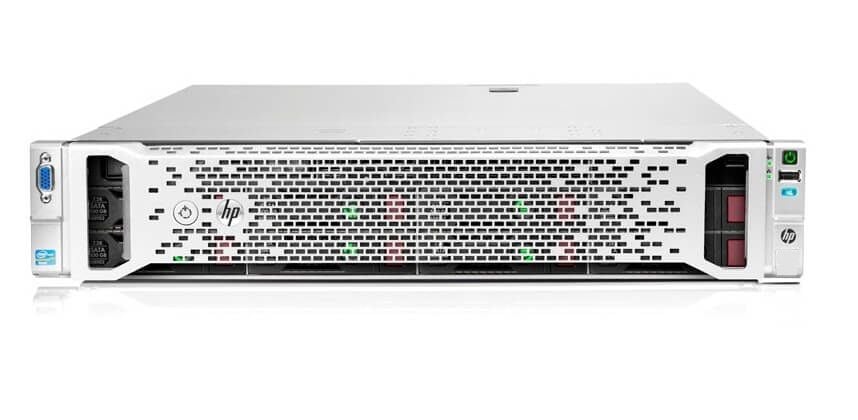

The HPE Proliant DL560 G8 Performance Model is equipped with four Intel Xeon E5-4600 v2 series processors with a maximum clock speed of 2.9GHz. The server has 48 memory slots and can support up to 1.5TB of DDR3 memory. The server has eight drive bays that can accommodate 2.5-inch SAS or SATA hard drives or solid-state drives (SSDs). The server also has two PCIe 3.0 expansion slots that can be used to add additional storage, networking, or other peripherals.
Management and Security
The HPE Proliant DL560 G8 Performance Model comes with an integrated Lights-Out 4 (iLO4) management controller that provides remote management capabilities for the server. The iLO4 controller allows administrators to remotely monitor, manage, and troubleshoot the server from anywhere in the world. The server also comes with HPE Insight Control, a suite of management tools that provides comprehensive monitoring, management, and control of the server infrastructure.
The server also comes with a variety of security features to protect against unauthorized access and data theft. The server has an embedded Trusted Platform Module (TPM) that provides hardware-based encryption for sensitive data. The server also has a secure boot feature that ensures the server boots only from trusted firmware and software.
Performance and Scalability
The HPE Proliant DL560 G8 Performance Model is designed to deliver high-performance computing for demanding workloads. The server supports up to four Intel Xeon E5-4600 v2 series processors, which provide up to 48 cores of processing power. The server also supports up to 1.5TB of DDR3 memory, which provides high-speed data access and processing.
The server is also highly scalable, making it ideal for businesses that require expansion capabilities. The server has two PCIe 3.0 expansion slots that can be used to add additional storage, networking, or other peripherals. The server can also be configured with multiple servers in a cluster to provide even greater scalability.
Reliability and Availability
The HPE Proliant DL560 G8 Performance Model is designed for mission-critical applications that require continuous availability and reliability. The server comes with redundant power supplies and cooling fans, which provide backup in the event of a failure. The server also has hot-swappable components, which allow administrators to replace failed components without shutting down the server.
The server also comes with HPE Advanced ECC memory, which provides advanced error correction capabilities to detect and correct errors in memory. The server also has HPE SmartMemory, which is a proprietary technology that improves memory reliability and performance.
General Information
- Manufacturer: Hewlett Packard Enterprise(HPE)
- Manufacturer Part Number: 686784-001
- Type: Server
- Sub-Type: Proliant Dl560
- Product Name: Proliant Dl560 G8 2u-Rack Server Performance Model
Processor & Chipset
- Processor Type : Intel Xeon E5-4640 / 2.4GHz
- Processor Slots : Fclga2011
- Multi-Core Technology : 8-Core
- 64 Bit Computing : Yes
- Installed Qty : 4
- Max Supported Qty: 4
- Upgradability : Upgradable
- Processor Main Features : Intel Quickpath Interconnect
- Chipset Model : Intel C600
- Data Bus Speed : 1333 Mhz
- Cache Memory:
- Cache Memory Type : L3 Cache
- Installed Size : 80 Mb
- Cache Per Processor : 20 Mb
Memory
- Installed Ram Size: 64GB (8x8gb)
- Maximum Size: 1.5tb (48x 32gb Rdimm @1600mhz)
- Technology: Ddr3 Sdram- Advanced Ecc
- Memory Speed: 1333 Mhz
- Memory Specifications Compliance: Pc-3 12800
- Form Factor: Dimm 240-Pin
- Number Of Total Memory Slots: 48
- Features: Registered, Quad Channel Memory Architecture, Hp Smartmemory
Ram Supported
- 64GB (8X 8GB)
- 752GB (46X16GB, 1X4GB)
- 1.5TB (48 X 32GB)
Storage & Storage Controllers
- Hard Drives : None Ship Standard
- Internal Storage Standard : 5 Sff Sas Hdd Bays, Includes 3 Sff Hard Drive Blanks
- Optical Drive Bay : Optional External Usb Optical Drive
- (Mobile Usb Dvdrw Optical Drive)
- Controller Interface Type : Sata-600 / Sas 2.0
- Storage Controller Name: Hp Smart Array P420i/2gb Fbwc (Raid 0/1/1+0/5/5+0)
Card Reader
- Memory Card Reader: Yes
- Supported Flash Memory Cards: Secure Digital (Sd) Card
Display & Graphics
- Integrated Matrox G200 Video Standard
- 1280 X 1024 (32 Bpp)
- 1920 X 1200 (16 Bpp)
- HPE Ilo 4 On System Management Memory
- 16 Mb Flash
- 256 Mb Ddr 3 With Ecc (112 Mb After Ecc And Video)
Network & Communication
- Ethernet Ports: 2 X 10 Gigabit Ethernet
- Ethernet Controller(S): Hpe Ethernet 10gb 2-Port 530flr-Sfp+ Adapter
- Data Link Protocol: Ethernet, Fast Ethernet, Gigabit Ethernet
- Remote Management Protocol: Snmp, Ipmi 2.0, Smash Clp
- Remote Management Controller: Integrated Lights-Out 4
- Features: Wake On Lan (Wol), Acpi Support, Pxe Support
- Compliant Standards: Ieee 802.3, Ieee 802.3u, Ieee 802.1q, Ieee 802.3ab, Ieee 802.1p, Ieee 802.3ad (Lacp)
