Description

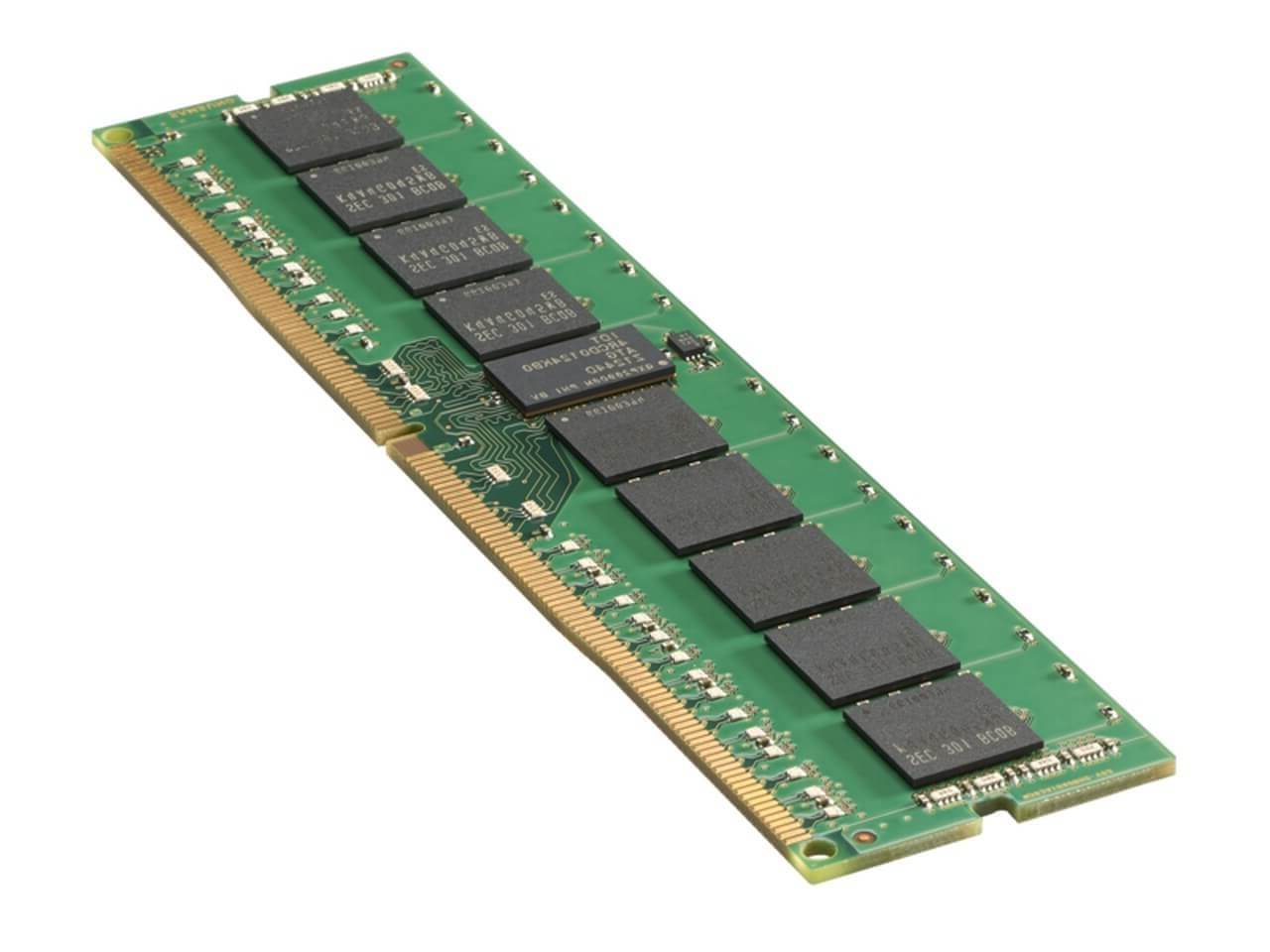

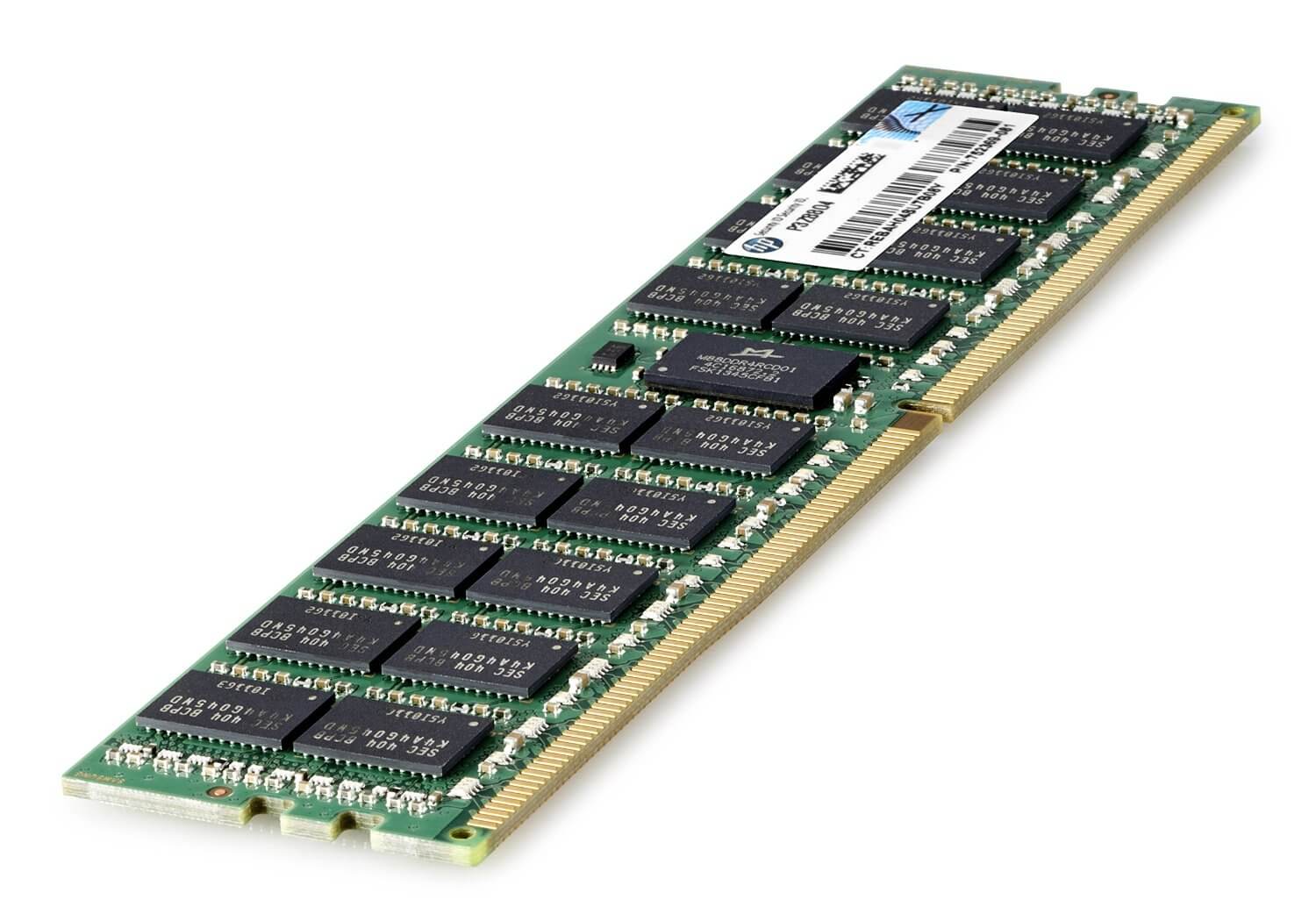

Overview of the HPE 32GB RAM
The HPE 708643R-B21 is a memory module that is designed to increase the performance of a server or workstation by providing additional memory capacity. This specific module is 32GB, which means it provides 32 gigabytes of memory. The memory technology used is DDR3 SDRAM (double data rate type 3 synchronous dynamic random-access memory) which is a type of memory that is widely used in servers and workstations.
The memory operates at a clock speed of 1866 MHz (Megahertz), which means it can process data at a rate of 1866 million cycles per second. CAS Latency (CL) is the delay time between the memory controller sending a command to the memory module and the memory module responding. The CL13 indicates that the delay time for this memory is 13 cycles.
It’s ECC (Error-Correcting Code) memory, which means it is able to detect and correct errors in the data it stores. This is important for servers and workstations where data integrity is critical.
The module has a 240-pin form factor which is the number of pins that connects the module to the motherboard. This module is intended for use in systems that use DDR3 memory, which means it is compatible with motherboards that support DDR3 memory.
Memory Speed and Pin Configuration
The HPE 708643R-B21 is a 32GB memory module that uses DDR3 SDRAM technology. The memory speed of the module is 1866 MHz (Megahertz). This refers to the rate at which the memory can process data and is measured in cycles per second. A higher memory speed means that the memory can access and process data more quickly, which can result in better performance for the server or workstation.
The module also has a 240-pin configuration, which refers to the number of pins that connect the module to the motherboard. The pin configuration is standard for DDR3 memory and is what allows the module to be compatible with motherboards that support DDR3 memory. The memory module slot and the memory module itself have to match in order to be compatible.
The module is also compliant with the PC3-14900 standard, which is a JEDEC standard that defines the specifications and features of DDR3 memory. This standard ensures that the module meets certain performance and compatibility requirements and can be used in systems that support the standard.
The module also has a CAS Latency (CL) of 13 cycles, which indicates the delay time between the memory controller sending a command to the memory module and the memory module responding.
Power Consumption and Heat Dissipation
Power consumption and heat dissipation are important factors to consider when using the HPE 708643R-B21 memory module, as they can affect the overall performance and stability of the server or workstation.
Power consumption refers to the amount of electrical power that the memory module requires to operate. DDR3 SDRAM memory typically has a low power consumption compared to other types of memory. However, as the memory speed and capacity increases, so does the power consumption. The 708643R-B21 memory module is a high-speed, high-capacity module, so it may consume more power than a lower-speed or lower-capacity module.
Heat dissipation refers to the ability of the memory module to dissipate or release the heat generated during operation. As the memory module consumes power, it generates heat, which can cause the temperature inside the server or workstation to rise. If the temperature gets too high, it can cause the system to become unstable or even shut down. The module itself does not have any cooling mechanism, but the server or workstation it’s installed in should have a cooling system in place to dissipate the heat generated by the memory.
It’s important to check the specifications of the server or workstation to ensure that it can handle the power consumption and heat dissipation of the 708643R-B21 memory module, and to make sure the memory is properly installed to ensure the best performance.
General Information
- Brand Name: HPE
- MPN: 708643R-B21
- Type: Memory (RAM)
- RAM Type: PC3-14900
- Product Name: 32GB (1X32GB) Quad Rank X4 PC3-14900l (DDR3-1866) Load Reduced Cas-13 Memory Kit
- SKU: 708643R-B21
Technical Information
- Storage Capacity: 32GB
- Memory Technology: DDR3 SDRAM
- Number Of Modules: 1 X 32GB
- Bus Speed: 1866MHZ DDR3-1866/PC3-14900
- Data Integrity Check: Ecc
- Ram Features: Quad Rank Low Voltage
- Cas Latency Timings: Cl13
- Platform Support: Proliant Server
- Form Factor: 240-Pin Dimm
Physical Characteristics
- Dimensions (W X D X H) : 8.89 X 19.81 X 1.91 Cm (3.5 X 7.8 X 0.75 In)
- Weight: 0.45 Kg (1 Lb)
Compatibility
- HPE Proliant Bl460c Gen8, Dl360p Gen8, Dl380p Gen8, Dl560 Gen8, Ml350p Gen8, Sl230s Gen8, Sl250s Gen8, Sl270s Gen8
