Description
SFP+ Transceiver Module
SFP+ (Small Form-factor Pluggable Plus) transceiver module is a type of hot-swappable, compact, and versatile component that is used in data communication and networking equipment. It is designed to transmit and receive data over optical fiber cables and copper cables.
The SFP+ transceiver module is an upgrade of the SFP transceiver module with a higher data rate, up to 16 Gbps, and supports both Fibre Channel and Ethernet protocols. It uses LC fiber optic connectors for fiber cabling and RJ-45 connectors for copper cabling.
SFP+ transceiver modules come in various types, such as Short-Reach (SR), Long-Reach (LR), Extended-Reach (ER), and Direct-Attach Copper (DAC), each designed to operate over different distances and environments.
One of the significant advantages of using SFP+ transceiver modules is their hot-swappable feature. This means that they can be replaced or removed from the equipment without shutting down the system. This feature reduces downtime, increases reliability, and simplifies maintenance.
SFP+ transceiver modules are widely used in networking applications such as switches, routers, network interface cards, and storage devices. They are highly flexible and cost-effective, making them a popular choice for building high-speed and reliable networks.
Maintenance Guidelines
Maintaining the HPE 16GB Short Wave FC SFP+ Transceiver Module is essential to ensure its optimal performance and longevity. Here are some maintenance guidelines for the HPE 16GB Short Wave FC SFP+ Transceiver Module:
- Keep the transceiver module clean: Dust and dirt can accumulate on the transceiver module, which can affect its performance. Use a soft, dry cloth to wipe the module’s surface regularly.
- Avoid exposing the transceiver module to extreme temperatures: High temperatures can cause the transceiver module to malfunction, and low temperatures can cause condensation to form, which can damage the module. Store the module in a cool, dry place.
- Do not disconnect or connect the transceiver module while the system is powered on: Doing so can damage the module or the system. Always power off the system before removing or installing the module.
- Use only compatible cables and accessories: Ensure that the cables and accessories used with the transceiver module are compatible with the system and meet the manufacturer’s specifications.
- Periodically check the transceiver module’s performance: Monitor the module’s performance regularly to ensure that it is functioning correctly. If you notice any issues, contact the manufacturer or a qualified technician for assistance.
- Follow the manufacturer’s instructions for upgrading or replacing the transceiver module: If you need to upgrade or replace the module, follow the manufacturer’s instructions carefully to avoid damaging the module or the system.
By following these maintenance guidelines, you can help ensure that the HPE 16GB Short Wave FC SFP+ Transceiver Module operates efficiently and effectively for an extended period of time.
Compatible Systems and Platforms
The HPE 16GB Short Wave FC SFP+ Transceiver Module is compatible with a range of systems and platforms that support Fibre Channel technology. Here are some examples of compatible systems and platforms:
- HPE Storage Systems: The HPE 16GB Short Wave FC SFP+ Transceiver Module is compatible with a range of HPE storage systems, including HPE 3PAR StoreServ, HPE MSA Storage, and HPE Nimble Storage.
- Dell EMC Storage Systems: The transceiver module is also compatible with Dell EMC storage systems, such as Dell EMC Unity, Dell EMC PowerMax, and Dell EMC VMAX.
- IBM Storage Systems: The module is compatible with IBM storage systems, including IBM FlashSystem, IBM Spectrum Virtualize, and IBM Storwize.
- Cisco Storage Systems: The module is compatible with Cisco storage systems, such as Cisco MDS 9000 Series Multilayer Switches and Cisco Nexus switches.
- Brocade Storage Systems: The module is also compatible with Brocade storage systems, such as Brocade 6505 and Brocade 6520 Fibre Channel switches.
It is important to note that while the HPE 16GB Short Wave FC SFP+ Transceiver Module is compatible with a wide range of systems and platforms, it is essential to ensure that the system meets the manufacturer’s specifications and requirements. It is recommended to check the system documentation or consult with the manufacturer to confirm compatibility before purchasing or installing the transceiver module.

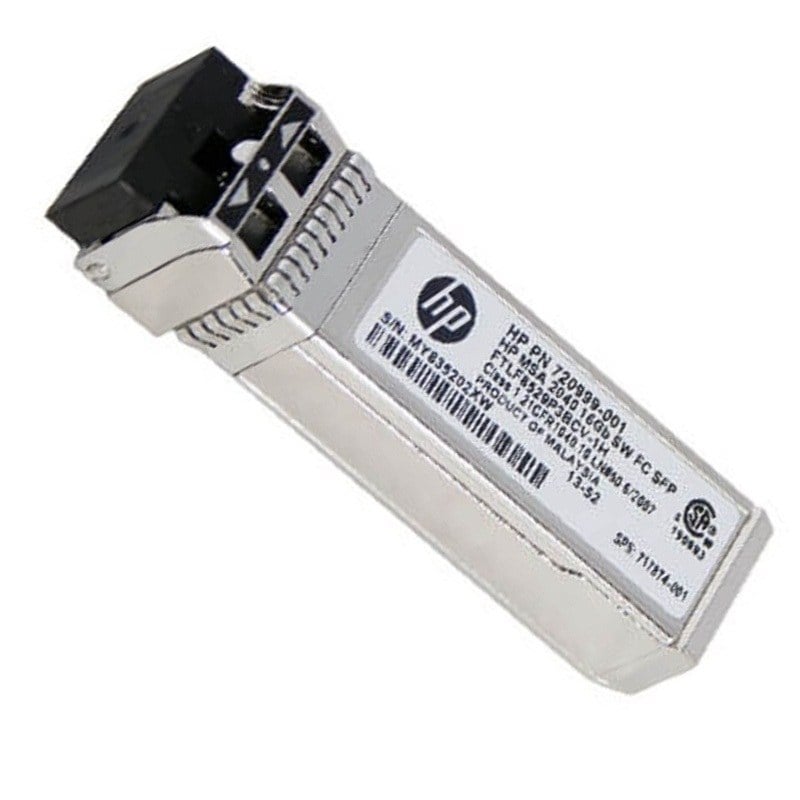

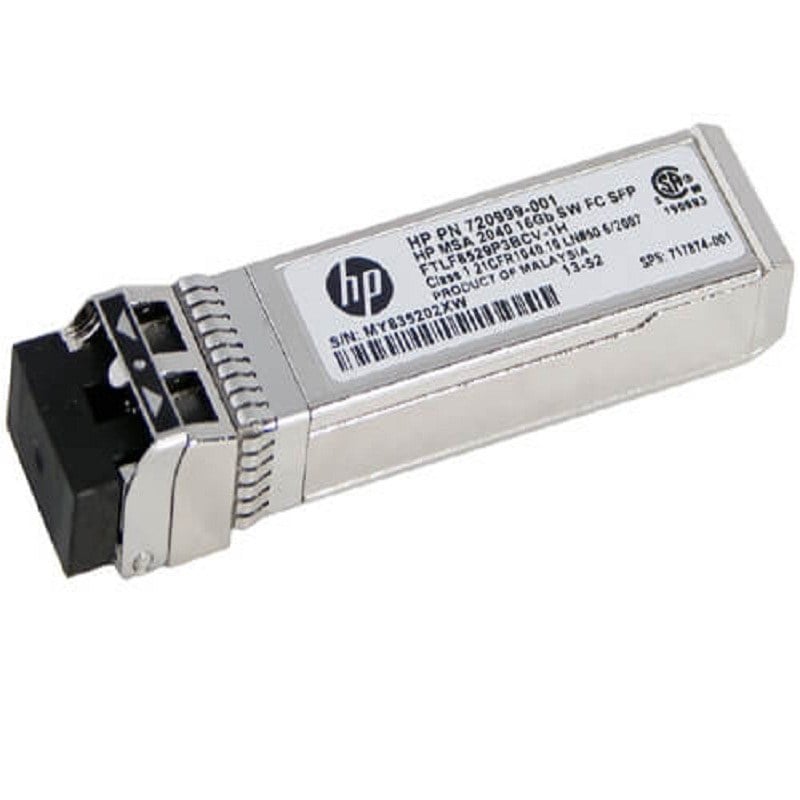

General Information about this HPE 720999-001
- Manufacturer: HPE
- Model Number or SKU# 720999-001
- Product Type: SFP+ Transceiver Module
- Form Factor: Plug-in Module
Networking for SFP+ Transceiver Module
- Data Transfer Rate: 16 GBPS
- Cabling Type: Fibre Channel
- Connectivity Technology: Wired
- Data Link Protocol: 16GB Fibre Channel (Short Wave)
Dimensions of 16GBPS Transceiver
- Height: 3.00 Inch
- Width: 5.00 Inch
- Depth: 8.00 Inch
Compatibility
- HPE Modular Smart Array 2040 10Gb iSCSI Dual Controller SFF Bundle, 2040 Dual Controller SFF Bundle, 2040 FC Dual Controller SFF Bundle, 2040 LFF Disk Enclosure, 2040 SAN Dual Controller LFF Storage, 2040 SAN Dual Controller SFF Bundle, 2040 SAN Dual Controller SFF Storage, 2040 SAS Dual Controller SFF Bundle, 2040 SFF Chassis, 2040 SFF DC-power Chassis
