Description
Product Overview of the PCI-E 3.0 X8 SAS Smart Host Bus Adapter

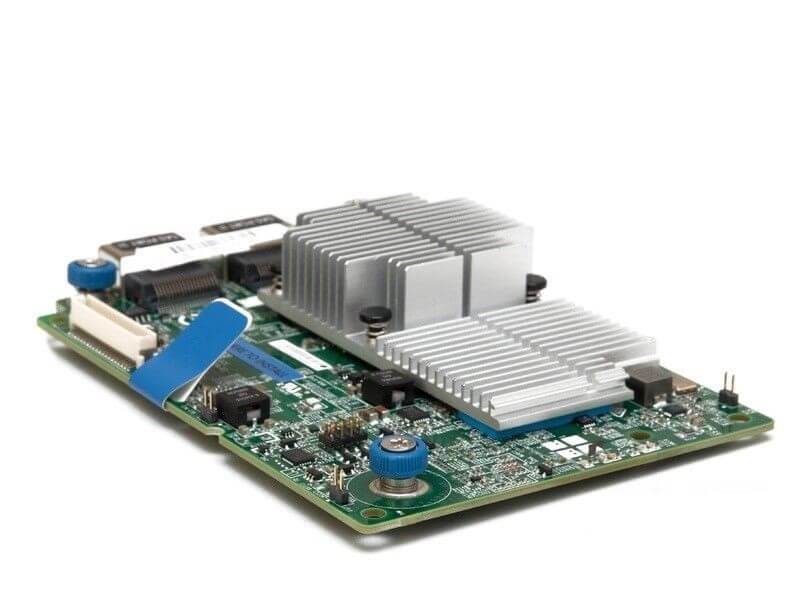

The HPE 726759-001 Smart Array H240AR is a high-performance host bus adapter designed to connect server storage devices to a computer system. It is a PCIe 3.0 x8 SAS smart host bus adapter that supports up to 12 Gb/s data transfer rates. In this article, we will discuss the features, benefits, and technical specifications of the HPE Smart Array H240AR.
Features and Benefits
The HPE Smart Array H240AR offers a wide range of features that make it an excellent choice for businesses that require high-performance storage solutions. Here are some of the key features and benefits of the HPE Smart Array H240AR:
- Dual-port SAS connectivity: The HPE Smart Array H240AR provides dual-port SAS connectivity, which allows for redundant connections to storage devices, ensuring high availability and data protection.
- PCIe 3.0 x8 interface: The PCIe 3.0 x8 interface provides high-speed connectivity between the host system and the adapter, allowing for faster data transfer rates and better performance.
- 12 Gb/s data transfer rate: The HPE Smart Array H240AR supports up to 12 Gb/s data transfer rates, which is faster than previous SAS interfaces, allowing for faster data access and retrieval.
- Smart Storage: The HPE Smart Array H240AR comes with advanced features like smart storage, which allows for easy management and configuration of storage devices.
- RAID support: The HPE Smart Array H240AR supports RAID levels 0, 1, 5, 10, 50, and 60, providing data protection and redundancy.
Technical Specifications
The HPE Smart Array H240AR has the following technical specifications:
- Interface: PCIe 3.0 x8
- Data transfer rate: Up to 12 Gb/s
- RAID support: RAID 0, 1, 5, 10, 50, and 60
- SAS ports: Dual-port SAS connectivity
- Compatibility: HPE ProLiant Gen9 servers
- Dimensions (W x D x H): 6.875 x 2.75 x 0.5 in
- Weight: 0.35 lbs
Compatibility
The HPE Smart Array H240AR is compatible with HPE ProLiant Gen9 servers, making it an ideal solution for businesses that use these servers. It is designed to work seamlessly with HPE ProLiant Gen9 servers, ensuring high performance and reliability.
Installation
The HPE Smart Array H240AR is easy to install and configure. It comes with all the necessary hardware and software for installation, and the process can be completed in a few simple steps. The installation process involves the following steps:
- Unpack the HPE Smart Array H240AR and ensure that all the components are present.
- Install the HPE Smart Array H240AR into the PCIe slot on the server.
- Connect the SAS cables from the storage devices to the HPE Smart Array H240AR.
- Install the necessary drivers and software for the HPE Smart Array H240AR.
- Configure the HPE Smart Array H240AR using the software provided.
Once the installation process is complete, the HPE Smart Array H240AR is ready to use.
In Summary, the HPE Smart Array H240AR is a high-performance host bus adapter that offers advanced features like dual-port SAS connectivity, PCIe 3.0 x8 interface, 12 Gb/s data transfer rates, and RAID support. It is easy to install and configure, making it an excellent choice for businesses that require high-performance storage solutions.
General Information about the HPE 726759-001
- Manufacturer: HPE
- Part Number or SKU# 726759-001
- Type: Controller
Specifications
- Device Type : Storage Controller – Plug-In Module
- Bus Type : PCIE 3.0 X8
- Interface : SATA 6GB/S / SAS 12GB/S
- Channel Qty : 8
- Data Transfer Rate : 1.2 GBPS
- Supported Devices : Hard Drive, Solid State Drive
- Raid Level : Raid 0, Raid 1, Raid 5
- Designed For : Modular Smart Array 2040, 2040 10GB
Expansion / Connectivity
- Interfaces : 2 X SATA 6GB/S / SAS 12GB/S – 36 Pin 4i Mini Multilane SAS (Sff-8087) (Internal)
Compatibility Information
- Designed For Hpe Proliant Dl360 Gen9, Dl360 Gen9 Base, Dl360 Gen9 Cms, Dl360 Gen9 Entry, Dl360 Gen9 Performance,
- Dl380 Gen9, Dl380 Gen9 Base, Dl380 Gen9 Entry, Dl380 Gen9 High Performance, Dl380 Gen9 Performance, Dl560 Gen9 Entry,
- Ml350 Gen9, Ml350 Gen9 Base, Ml350 Gen9 Entry, Ml350 Gen9 Performance
Contact us or ask for live chat/help if you have any questions about the compatibility of this item to ensure the model’s matching features with your current system.
