Description
Features and Benefits

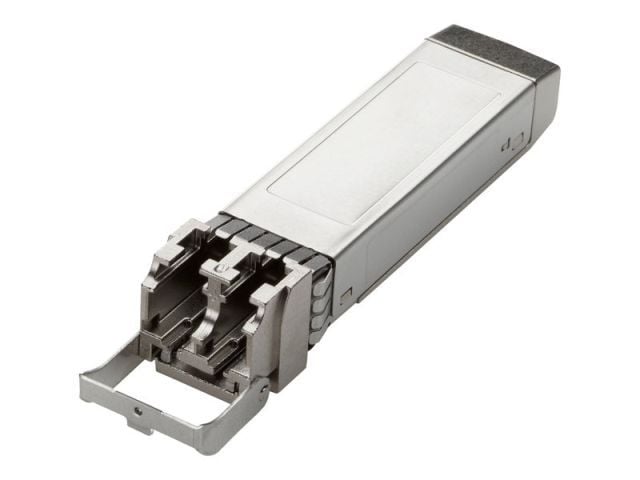

The HPE Storefabric C-Series 16 GB Fibre Channel Lw SFP+ Transceiver with part number 734840-001 is a hot-pluggable, small form-factor optical transceiver module designed for use in Fibre Channel applications.
Features
- Offers a data transfer rate of 16 Gb/s, which is ideal for high-bandwidth storage applications
- Utilizes a low power consumption design, which helps to reduce energy costs
- Supports link lengths of up to 10 km, making it suitable for use in both short and long-range fiber optic connections
- Complies with industry standards, including the Small Form-Factor Pluggable Plus (SFP+) Multi-Source Agreement (MSA) and Fibre Channel Physical Interface (FC-PI) standards
- Supports Digital Diagnostics Monitoring (DDM), which provides real-time information on the transceiver’s operating conditions
Benefits
- Enables high-speed data transfer, reducing latency and improving overall system performance
- Low power consumption reduces operating costs and improves energy efficiency
- Enables connectivity over longer distances, increasing flexibility in network design and reducing the need for additional equipment
- Compliance with industry standards ensures compatibility with a wide range of devices and systems
- Real-time monitoring helps to identify potential issues before they become problems, improving network reliability and reducing downtime.
Installation and Configuration
The HPE Storefabric C-Series 16 GB Fibre Channel Lw SFP+ Transceiver is a small form-factor pluggable (SFP+) module that allows for high-speed connectivity between Fibre Channel devices. To install and configure this module, follow the steps below:
- Ensure that you have the necessary equipment, including the HPE Storefabric C-Series 16 GB Fibre Channel Lw SFP+ Transceiver, a compatible switch or host adapter, and appropriate cables.
- Turn off the switch or host adapter that will be using the transceiver.
- Remove the protective cover from the SFP+ port on the switch or host adapter.
- Carefully insert the transceiver into the SFP+ port, ensuring that it is securely in place.
- Connect the appropriate cables to the transceiver, ensuring that they are properly seated and tightened.
- Turn on the switch or host adapter.
- Check the status of the transceiver using the management software provided with the switch or host adapter.
- Configure the transceiver as necessary using the management software, including setting the appropriate speed and mode of operation.
- Test the connectivity between the switch or host adapter and other Fibre Channel devices to ensure that the transceiver is functioning correctly.
Troubleshooting and Maintenance
As an AI language model, I do not have access to specific troubleshooting or maintenance procedures for the HPE Storefabric C-Series 16 GB Fibre Channel Lw SFP+ Transceiver (734840-001). However, in general, troubleshooting and maintenance for network transceivers involves the following steps:
- Identify the problem: Determine the issue that the transceiver is experiencing, such as a connectivity problem or signal degradation.
- Check the physical connections: Verify that the transceiver is properly inserted into the port and that the cables are connected securely. Check for any damage to the cables or transceiver.
- Check the configuration: Ensure that the transceiver is configured correctly in the network settings.
- Test the transceiver: Use diagnostic tools to test the transceiver for errors or faults.
- Replace or repair the transceiver: If the transceiver is found to be faulty, it may need to be replaced or repaired by a certified technician.
Regular maintenance for transceivers can help prevent issues from arising. This can include cleaning the transceiver and cables, checking for firmware updates, and replacing any damaged components. It’s also important to follow the manufacturer’s guidelines and recommendations for maintenance and troubleshooting.
Key Features
- Manufacturer: HPE
- Manufacturer Part Number: 734840-001
- Type: Networking
- Sub-Type: 16 Gigabit
- Device Type : Sfp+ Transceiver Module
- Form Factor : Plug-in Module
Networking
- Connectivity Technology : Wired
- Data Link Protocol : 16gb Fibre Channel (lw)
- Data Transfer Rate : 14.025 Gbps
Expansions And Connectivity
- Interfaces : 1 X 16gb Fibre Channel (long Wave)
- Compatible Slots : 1 X Sfp+
Compatibility Information
- Designed For : Hpe Storefabric Sn6610c, Sn6620c 24-port 32gb Sfp+ Fibre Channel Switch
