Description
Product Overview of 749797-001 HPE Smart Array

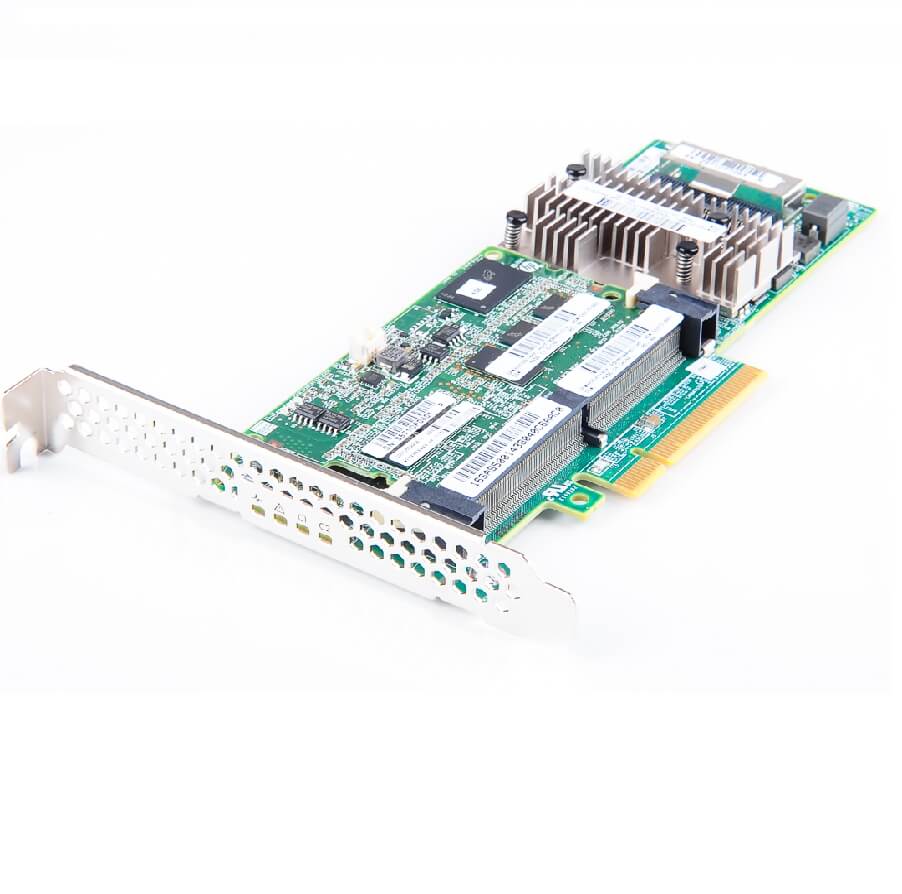

HPE 749797-001 Smart Array P440/4GB FBWC is a storage controller manufactured by Hewlett Packard Enterprise (HPE). It is a hardware device that enables the management and control of data storage for servers and other computing devices. The controller is designed to support enterprise-level storage requirements and comes with a range of advanced features, such as RAID support, caching, and data protection. In this article, we will discuss in detail the features and capabilities of the HPE 749797-001 Smart Array P440/4GB FBWC.
PCI Express 3.0 x8 Interface
The HPE 749797-001 Smart Array P440/4GB FBWC is designed to interface with a server or other computing device through the PCI Express 3.0 x8 interface. This interface provides a high-speed, low-latency connection between the controller and the host device. The PCI Express 3.0 x8 interface is backward compatible with earlier versions of the PCI Express interface, which ensures compatibility with a wide range of computing devices.
Internal SAS Connectivity
The HPE 749797-001 Smart Array P440/4GB FBWC supports internal SAS connectivity, which enables it to connect to and manage SAS hard drives and other storage devices. SAS (Serial Attached SCSI) is a high-speed, high-bandwidth storage protocol that is widely used in enterprise-level storage systems. The controller supports SAS data transfer rates of up to 12 Gbps, which enables it to deliver high-performance storage management.
RAID Support
The HPE 749797-001 Smart Array P440/4GB FBWC supports RAID (Redundant Array of Independent Disks) configurations, which enable data to be stored across multiple hard drives for improved performance and data redundancy. The controller supports a wide range of RAID levels, including RAID 0, RAID 1, RAID 5, RAID 6, RAID 10, and RAID 50. RAID configurations can be managed using the HPE Smart Storage Administrator software, which provides an intuitive graphical user interface for RAID configuration and management.
4GB Flash-Backed Write Cache (FBWC)
The HPE 749797-001 Smart Array P440/4GB FBWC comes with 4GB of Flash-Backed Write Cache (FBWC), which provides high-speed write performance and data protection. The FBWC uses flash memory to provide fast write performance, while also protecting data in the event of a power failure or other system failure. The FBWC ensures that data is safely stored in the cache until it can be written to disk, which helps to prevent data loss or corruption.
12Gbps SAS Data Transfer Rate
The HPE 749797-001 Smart Array P440/4GB FBWC supports SAS data transfer rates of up to 12 Gbps, which enables it to deliver high-performance storage management. This high-speed data transfer rate ensures that data can be quickly and efficiently transferred between the controller and storage devices, which improves system performance and responsiveness.
One-Port Design
The HPE 749797-001 Smart Array P440/4GB FBWC features a one-port design, which enables it to connect to a single SAS storage device. This design is ideal for smaller storage systems or configurations that do not require multiple storage devices. However, it can also be used in larger storage systems with multiple controllers and storage devices.
General Information about the HPE 749797-001
- Manufacturer Name: HPE
- Part Number or SKU# 749797-001
- Option Part Number: 726821-B21
- Product Type : Controller
Technical Information
- Device Type: Storage controller (RAID) – Plug-in Card – Low Profile
- Host Bus: PCIe 3.0 x8
- Form Factor: Standard PCIe Plug-in Card
Storage Controllers
- Cache (Buffer Size): 4GB Flash-Backed Write Cache
- Ports (Channel Qty): 8 Physical Links Across 1 x8 Ports (Internal)
- Data Transfer Rate: 12Gb/sec SAS per Physical Link 6Gb/sec SATA per Physical Link PCI Express Gen3 x8 Link Width
- Interface: SATA 6Gbps / SAS 12Gbps
- RAID Level: RAID 0, RAID 1, RAID 5, RAID 6, RAID 10, RAID 50, RAID 60, RAID 1 ADM, RAID 10 ADM
- Supported Devices: Hard Drive, Disk Array (RAID)
- Additional features: HPE SmartCache (Optional License) HPE Secure Encryption (Optional License)
Expansions And Connectivity
- Interfaces: 1 x SATA 6Gb/s / SAS 12Gb/s (internal)
Software / System Requirements
- OS Required: Microsoft Windows Server 2008 R2, Microsoft Windows Server 2008, VMware ESXi 5, Ubuntu 12.04, Microsoft Windows Server 2012, Oracle Solaris 11.1, Microsoft Windows Server 2012 R2, VMware vSphere 5.5, SuSE Linux Enterprise Server 11 SP3, VMware ESXi 5.5, Ubuntu 14.04, Red Hat Enterprise Linux 7
Miscellaneous
- Compliant Standards: WEEE
Dimensions & Weight
- Height: 4.09 inch
- Width: 5.30 inch
- Depth: 1.23 inch
- Weight: 1.00 lbs
Compatibility Information
- HPE Apollo 4200 Gen9, 4500 Gen9, 4510 Gen9, 4530 Gen9, 6000 Gen9
- HPE ProLiant DL Series: DL20 Gen9, DL20 Gen9 Solution, DL80 Gen9, DL120 Gen9, DL180 Gen9, DL360 Gen9, DL380 Gen9, DL380 Gen9 High Performance, DL560 Gen9, DL560 Gen9 Entry
- HPE ProLiant ML Series: ML30 Gen9, ML30 Gen9 Entry, ML30 Gen9 Solution, ML110 Gen9, ML150 Gen9, ML350 Gen9
- HPE ProLiant XL Series: XL170r Gen9, XL230a Gen9 Compute Tray, XL230a Gen9 Compute Tray (12G), XL230a Gen9 Compute Tray (6G), XL230a Gen9 NHP Compute Tray (12G), XL270d Gen9
Contact us or ask for live chat/help if you have any questions about the compatibility of this item to ensure the model’s matching features with your current system.
