Description

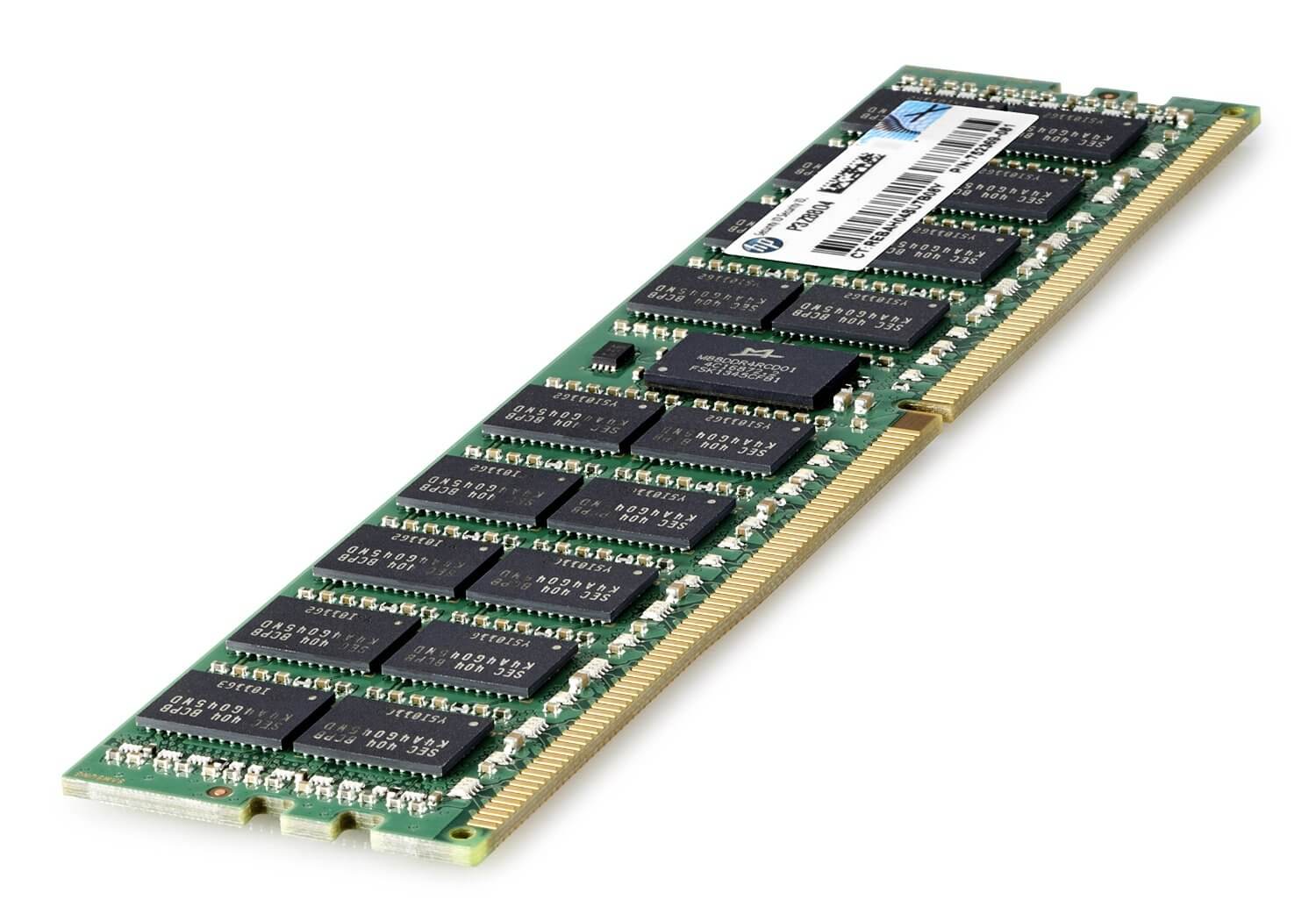

Introduction to HPE 32GB 2133Mhz RAM
Introduction to HPE 32GB 2133Mhz PC4-17000 RAM is a subheading that would provide an overview of the product, including its main features and specifications. It would introduce the HPE 32GB 2133Mhz RAM to the reader and give them a general understanding of what it is and what it does.
The HPE 32GB 2133Mhz PC4-17000 RAM is a type of computer memory that is used to temporarily store data that the computer’s central processing unit (CPU) needs to access quickly. It is designed to work with DDR4 SDRAM (double data rate fourth generation synchronous dynamic random-access memory) and has a memory speed of 2133 MHz. The PC4-17000 indicates that the RAM has a transfer rate of 17000 MB/s. It also has a capacity of 32GB, which means that it can store 32 gigabytes of data. Additionally, the RAM is equipped with ECC (Error Correction Code) which helps to detect and correct errors in the data being stored in the RAM. It is also 288-pin which means it is designed to fit in 288-pin slot of the motherboard.
Features and Specifications
“Features and specifications of 752372-581 HPE 32GB 2133Mhz PC4-17000 CL15 ECC REG DDR4 SDRAM 288-Pin RAM” would detail the specific technical aspects of the RAM and how they contribute to its performance and functionality.
- Capacity: The RAM has a capacity of 32GB, which means it can store 32 gigabytes of data.
- Memory Speed: The RAM has a memory speed of 2133 MHz, which means that it can transfer data at a rate of 2133 million times per second.
- Transfer Rate: The PC4-17000 indicates that the RAM has a transfer rate of 17000 MB/s.
- Error Correction Code (ECC): The RAM is equipped with ECC, which helps to detect and correct errors in the data being stored in the RAM.
- CAS Latency: The RAM has a CAS latency of 15, which refers to the delay time between sending a request for data to the RAM and the RAM beginning to send that data.
- 288-pin: The RAM is 288-pin, which means it is designed to fit in 288-pin slot of the motherboard.
- DDR4 SDRAM: The RAM is designed to work with DDR4 SDRAM (double data rate fourth generation synchronous dynamic random-access memory)
Error Correction Code and Importance in RAM
Error Correction Code (ECC) is a method of detecting and correcting errors in data storage and transmission. In the context of the 752372-581 HPE 32GB 2133Mhz PC4-17000 CL15 ECC REG DDR4 SDRAM 288-Pin RAM, ECC is used to detect and correct errors that may occur in the data stored in the RAM.
ECC works by adding extra bits of data, called “check bits,” to the data that is stored in the RAM. These check bits are used to create a code that can detect and correct errors in the data. When data is read from the RAM, the ECC circuit compares the check bits to the data bits to ensure that the data has not been corrupted. If the ECC circuit detects an error, it will attempt to correct it using the check bits.
The importance of ECC in RAM is that it helps to ensure the integrity of the data stored in the RAM. In systems that rely on accurate and consistent data, such as servers and high-performance workstations, ECC can help to prevent errors that could lead to system crashes or data corruption. This can help to improve the stability and reliability of the system, and can be especially important in environments where data loss or corruption could have serious consequences.
General Information
- Manufacturer: HPE
- Manufacturer Part Number: 752372-581
- Type: Memory (RAM)
- Sub-Type: PC4-17000
- Product Name: 32GB DDR4 SDRAM Memory Module
Technical Information
- Memory Size: 32GB
- Memory Technology: DDR4 SDRAM
- Number Of Modules: 1 X 32GB
- Chip Organization: X4
- Memory Speed: 2133 MHZ
- Memory Standard: DDR4-2133/PC4-17000
- Signal Processing: Registered
- Error Checking: Ecc
- Cas Latency: Cl15
- Pin Count: 288-Pin
- Voltage: 1.2v
- Form Factor: Lrdimm
Compatibility
- HPE Proliant Bl460c Gen9
- HPE Proliant Bl660c Gen9
- HPE Proliant Dl180 Gen9
- HPE Proliant Dl360 Gen9
- HPE Proliant Dl380 Gen9
- HPE Proliant Dl388 Gen9
- HPE Proliant Dl560 Gen9
- HPE Proliant Dl580 Gen9
- HPE Proliant Dl60 Gen9
- HPE Proliant Dl80 Gen9
- HPE Proliant Ml110 Gen9
- HPE Proliant Ml150 Gen9
- HPE Proliant Ml350 Gen9
- HPE Proliant Dl120 Gen9
- HPE Proliant Dl160 Gen9
- HPE Proliant Xl170r Gen9
- HPE Proliant Xl190r Gen9
- HPE Proliant Xl230a Gen9
- HPE Proliant Xl250a Gen9
- HPE Proliant 4xxl170r Gen9
- HPE Proliant Xl230b Gen9
- HPE Proliant Ws460c Gen9
- HPE Apollo 4200
