Description
Product Specification of HPE SAS 12GBPS SC Enterprise Hard Drive

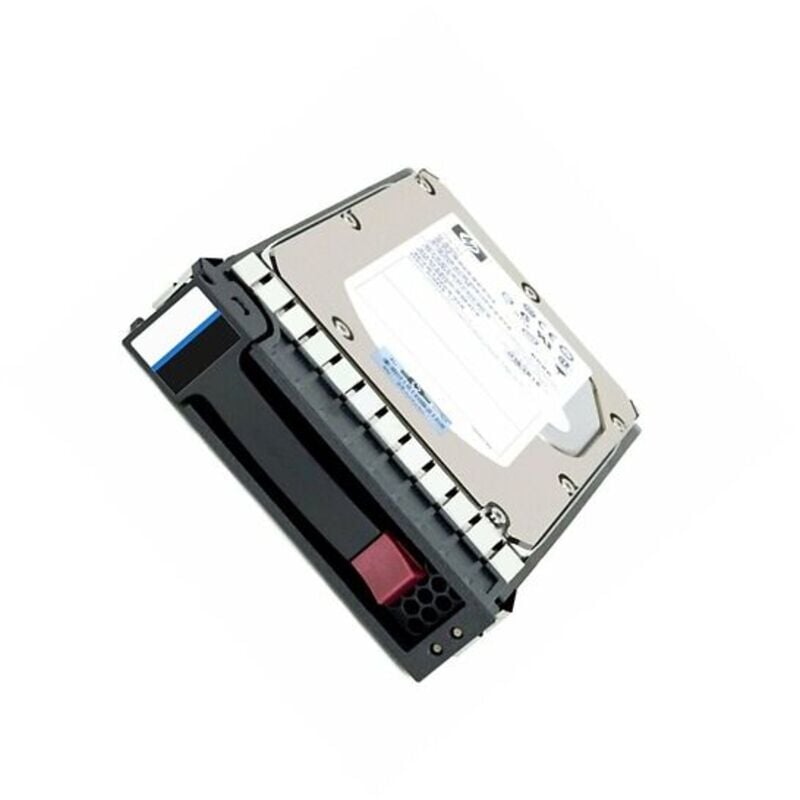

The 759212-S21 is a hard disk drive manufactured by Hewlett-Packard Enterprise (HPE) for use in enterprise-level servers. It is a Serial Attached SCSI (SAS) drive that offers high-speed data transfer rates and a large storage capacity of 600 gigabytes (GB). In this article, we will discuss the key features of the 759212-S21 drive and why it is an ideal choice for enterprise server applications.
Capacity of 759212-S21 HPE 600GB HDD
The 759212-S21 has a storage capacity of 600 GB, which is suitable for large-scale enterprise applications. This allows for a significant amount of data to be stored on a single drive, reducing the need for multiple drives and simplifying the server architecture.
Rotational Speed
The rotational speed of a hard disk drive determines how quickly data can be accessed and read from the drive. The 759212-S21 has a high rotational speed of 15000 revolutions per minute (RPM). This makes it an ideal choice for applications that require high-speed data access, such as database servers and other high-performance computing applications.
Interface & Form Factor
The 759212-S21 uses the Serial Attached SCSI (SAS) interface, which provides a high-speed data transfer rate of 12 gigabits per second (Gbps). This allows for fast data transfer between the server and the hard disk drive, reducing latency and improving overall system performance.
The 759212-S21 has a small form-factor (SFF) of 2.5 inches. This allows for more drives to be installed in a server, reducing the physical footprint of the server and increasing the storage capacity of the system. The small form-factor also allows for improved cooling efficiency, reducing the risk of drive failure due to overheating.
Smart Carrier
The 759212-S21 comes with a Smart Carrier (SC) tray, which is designed to simplify the installation and removal of hard disk drives in a server. The Smart Carrier also includes a status indicator that provides real-time information about the status of the drive, such as temperature and failure alerts.
Enterprise-class Reliability
The 759212-S21 is designed for enterprise-level applications, and as such, it offers enterprise-class reliability features. These features include advanced error correction capabilities, which help to ensure data integrity, and rotational vibration sensors, which help to reduce the risk of drive failure due to vibrations in the server chassis.
Hot Swap Capability
The 759212-S21 also offers hot swap capability, which allows for drives to be added or removed from the server without the need for system downtime. This makes it easy to add or replace drives in a running system, reducing the risk of data loss and improving overall system availability.
Finally, the 759212-S21 is a high-performance hard disk drive that is designed for enterprise-level server applications. It offers a large storage capacity of 600 GB, a high-speed data transfer rate of 12 Gbps, and a small form-factor of 2.5 inches. The drive also includes a Smart Carrier tray, which simplifies the installation and removal of drives, and offers enterprise-class reliability features, including advanced error correction capabilities and rotational vibration sensors. The hot swap capability allows for drives to be added or removed from a running system, reducing the risk of data loss and improving overall system availability. Overall, the 759212-S21 is an ideal choice for enterprise-level server applications that require high-speed data access, large storage capacity, and reliable performance.
Main Specification about the HPE 759212-S21
- Manufacturer: HPE
- Part Number or SKU# 759212-S21
- Option Part Number: 759212-B21
- Spare Part Number: 759548-001
- Model Number: EH0600JEDHE
- Model Number: EH0600JDXBC
- Model Number: EH0600JDYTL
- Assembly Number: 759202-003
- Assembly Number: 744995-003
- Assembly Number: 748385-003
- HPE GPN: 759221-006
- Device Type: Hard Drive – Hot-Swap
Technical Features
- Capacity: 600GB
- Form Factor: 2.5 inch SFF
- Interface: SAS 12 GBPS
- Bytes per Sector: 512
- Drive Technology (Fill): Air
- Plug Type: Hot Plug
- Carrier Type: Smart Carrier (SC)
- Workload: Enterprise
- Features: Dual Port
- Carrier: HPE Smart Drive Carrier
Dimension and Weight
- Width: 2.8 Inch
- Depth: 3.9 Inch
- Height: 0.6 Inch
- Weight: 0.50 LBS
Drive Performance
- Spindle Speed: 15000 RPM
- Drive Transfer Rate: 1.2 GBPS (External)
- Seek Time: 2.9 MS (Average) / 5.9 ms (Max)
- Track-to-Track Seek Time: 0.15 MS
Expansion & Connectivity
- Interfaces: 1 x SAS 12 GB/S
- Compatible Bay: 2.5″ SFF
Environmental Parameters
- Min Operating Temperature: 50 °F
- Max Operating Temperature: 95 °F
Compatibility
- HPE ProLiant BL Series: BL460c Gen10 (2.5 inch), BL460c Gen8 (2.5 inch), BL660c Gen9 (2.5 inch)
- HPE ProLiant DL Series: DL180 Gen9 (2.5 inch), DL180 Gen9 Base (2.5 inch), DL180 Gen9 Entry (2.5 inch), DL180 Gen9 Storage (2.5 inch), DL20 Gen9 (2.5 inch), DL20 Gen9 Entry (2.5 inch), DL20 Gen9 Performance (2.5 inch), DL320e Gen8 (2.5 inch), DL320e Gen8 Base (2.5 inch), DL320e Gen8 Entry (2.5 inch), DL320e Gen8 Performance (2.5 inch), DL320e Gen8 Special Server (2.5 inch), DL320e Gen8 v2 (2.5 inch), DL320e Gen8 v2 Base (2.5 inch), DL320e Gen8 v2 Performance (2.5 inch), DL360 Gen9 CMS (2.5 inch), DL360 Gen9 Entry (2.5 inch), DL360p Gen8 (2.5 inch), DL360p Gen8 CMS (2.5 inch), DL360p Gen8 Performance (2.5 inch), DL360p Gen8 Special Server (2.5 inch), DL380 Gen9 (2.5 inch), DL380 Gen9 Base (2.5 inch),
- DL380 Gen9 Entry (2.5 inch), DL380 Gen9 Performance (2.5 inch), DL380p Gen8 Performance (2.5 inch), DL385p Gen8 (2.5 inch), DL385p Gen8 Entry (2.5 inch), DL385p Gen8 Storage (2.5 inch), DL385p Gen8 Storage Centric (2.5 inch), DL388 Gen9 (2.5 inch), DL388 Gen9 Base (2.5 inch), DL388p Gen8 (2.5 inch), DL560 Gen8 (2.5 inch), DL560 Gen8 Base (2.5 inch), DL560 Gen8 Entry (2.5 inch), DL560 Gen8 Performance (2.5 inch), DL560 Gen9 (2.5 inch), DL560 Gen9 Base (2.5 inch), DL560 Gen9 Entry (2.5 inch), DL560 Gen9 Performance (2.5 inch), DL580 Gen8 (2.5 inch), DL580 Gen8 Base (2.5 inch), DL580 Gen8 High Performance (2.5 inch), DL580 Gen9 (2.5 inch), DL580 Gen9 Database (2.5 inch), DL580 Gen9 SAP HANA Scale-up Base Configuration (2.5 inch)
