Description

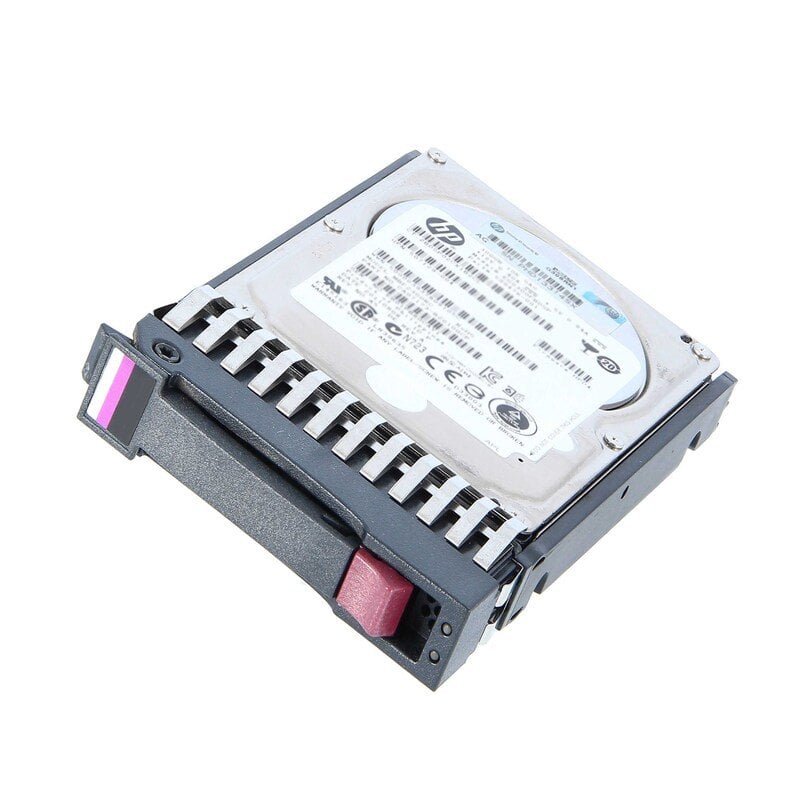

Overview of the HPE 759212-S21 600GB Hard Disk
The HPE 759212-S21 hard disk drive is a 2.5-inch small form-factor (SFF) device that features a massive storage capacity of 600 gigabytes (GB). It has a fast 15000 revolutions per minute (RPM) rotational speed, which ensures quick access to data stored on the disk. The hard drive has a SAS interface, which provides a data transfer rate of up to 12 gigabits per second (GBPS).
Features for SAS 12GBPS SC Enterprise Hard Disk
- Large Storage Capacity: The HPE 759212-S21 hard disk drive has a storage capacity of 600 GB, making it ideal for storing large amounts of data. This makes it ideal for use in servers and data centers where large amounts of data need to be stored.
- High-Speed Data Transfer: The hard disk drive has a SAS interface, which provides a data transfer rate of up to 12 GBPS. This ensures that data can be quickly accessed and transferred to other devices.
- Fast Rotational Speed: With a rotational speed of 15000 RPM, the hard disk drive is able to quickly read and write data. This makes it ideal for use in applications that require fast data access.
- Hot Swap Capability: The HPE 759212-S21 hard disk drive features hot swap capability, which allows it to be replaced without having to shut down the server. This ensures that downtime is minimized and that the server remains operational even during maintenance or upgrades.
- Smart Carrier Design: The hard disk drive comes with a smart carrier design that ensures easy installation and removal of the device. This also helps to protect the hard drive from damage during installation or removal.
Benefits
- Improved Performance: The HPE 759212-S21 hard disk drive is designed to provide high-performance data storage, which makes it ideal for use in mission-critical applications. It’s able to quickly read and write data, which helps to improve overall system performance.
- Enhanced Reliability: With its high-speed data transfer rate and fast rotational speed, the hard disk drive is able to provide reliable data storage. It’s also designed to withstand the demands of enterprise-level usage, which makes it a reliable storage solution.
- Increased Storage Capacity: The HPE 759212-S21 hard disk drive has a large storage capacity of 600 GB, which makes it ideal for storing large amounts of data. This helps to improve overall data storage capacity, which is essential for businesses and organizations that deal with large amounts of data.
- Reduced Downtime: The hard disk drive features hot swap capability, which allows it to be replaced without having to shut down the server. This helps to reduce downtime and ensures that the server remains operational even during maintenance or upgrades.
In summary, the HPE 759212-S21 hard disk drive is a high-performance, enterprise-class storage solution that is designed to provide fast and reliable data storage. It features a large storage capacity of 600 GB, a fast 15000 RPM rotational speed, and a SAS interface that provides a data transfer rate of up to 12 GBPS. The hard disk drive also features hot swap capability and a smart carrier design, which ensures easy installation and removal of the device. Overall, the HPE 759212-S21 hard disk drive is an excellent storage solution for businesses and organizations that require high-performance data storage.
Main Specification about the HPE 759212-S21
- Manufacturer: HPE
- Part Number or SKU# 759212-S21
- Option Part Number: 759212-B21
- Spare Part Number: 759548-001
- Model Number: EH0600JEDHE
- Model Number: EH0600JDXBC
- Model Number: EH0600JDYTL
- Assembly Number: 759202-003
- Assembly Number: 744995-003
- Assembly Number: 748385-003
- HPE GPN: 759221-006
- Device Type: Hard Drive – Hot-Swap
Technical Features
- Capacity: 600GB
- Form Factor: 2.5 inch SFF
- Interface: SAS 12 GBPS
- Bytes per Sector: 512
- Drive Technology (Fill): Air
- Plug Type: Hot Plug
- Carrier Type: Smart Carrier (SC)
- Workload: Enterprise
- Features: Dual Port
- Carrier: HPE Smart Drive Carrier
Dimension and Weight
- Width: 2.8 Inch
- Depth: 3.9 Inch
- Height: 0.6 Inch
- Weight: 0.50 LBS
Drive Performance
- Spindle Speed: 15000 RPM
- Drive Transfer Rate: 1.2 GBPS (External)
- Seek Time: 2.9 MS (Average) / 5.9 ms (Max)
- Track-to-Track Seek Time: 0.15 MS
Expansion & Connectivity
- Interfaces: 1 x SAS 12 GB/S
- Compatible Bay: 2.5″ SFF
Environmental Parameters
- Min Operating Temperature: 50 °F
- Max Operating Temperature: 95 °F
Compatibility
- HPE ProLiant BL Series: BL460c Gen10 (2.5 inch), BL460c Gen8 (2.5 inch), BL660c Gen9 (2.5 inch)
- HPE ProLiant DL Series: DL180 Gen9 (2.5 inch), DL180 Gen9 Base (2.5 inch), DL180 Gen9 Entry (2.5 inch), DL180 Gen9 Storage (2.5 inch), DL20 Gen9 (2.5 inch), DL20 Gen9 Entry (2.5 inch), DL20 Gen9 Performance (2.5 inch), DL320e Gen8 (2.5 inch), DL320e Gen8 Base (2.5 inch), DL320e Gen8 Entry (2.5 inch), DL320e Gen8 Performance (2.5 inch), DL320e Gen8 Special Server (2.5 inch), DL320e Gen8 v2 (2.5 inch), DL320e Gen8 v2 Base (2.5 inch), DL320e Gen8 v2 Performance (2.5 inch), DL360 Gen9 CMS (2.5 inch), DL360 Gen9 Entry (2.5 inch), DL360p Gen8 (2.5 inch), DL360p Gen8 CMS (2.5 inch), DL360p Gen8 Performance (2.5 inch), DL360p Gen8 Special Server (2.5 inch), DL380 Gen9 (2.5 inch), DL380 Gen9 Base (2.5 inch),
- DL380 Gen9 Entry (2.5 inch), DL380 Gen9 Performance (2.5 inch), DL380p Gen8 Performance (2.5 inch), DL385p Gen8 (2.5 inch), DL385p Gen8 Entry (2.5 inch), DL385p Gen8 Storage (2.5 inch), DL385p Gen8 Storage Centric (2.5 inch), DL388 Gen9 (2.5 inch), DL388 Gen9 Base (2.5 inch), DL388p Gen8 (2.5 inch), DL560 Gen8 (2.5 inch), DL560 Gen8 Base (2.5 inch), DL560 Gen8 Entry (2.5 inch), DL560 Gen8 Performance (2.5 inch), DL560 Gen9 (2.5 inch), DL560 Gen9 Base (2.5 inch), DL560 Gen9 Entry (2.5 inch), DL560 Gen9 Performance (2.5 inch), DL580 Gen8 (2.5 inch), DL580 Gen8 Base (2.5 inch), DL580 Gen8 High Performance (2.5 inch), DL580 Gen9 (2.5 inch), DL580 Gen9 Database (2.5 inch), DL580 Gen9 SAP HANA Scale-up Base Configuration (2.5 inch)
Contact us or ask for live chat/help if you have any questions about the compatibility of this item to ensure the model’s matching features with your current system.
