Description
Benefits of a 7.2K RPM Spindle Speed
There are several benefits of a 7.2K RPM spindle speed for a hard disk drive (HDD):
- Faster data access: A higher spindle speed means that the HDD can access data more quickly, resulting in faster read and write times.
- Improved performance: Higher spindle speeds can improve system performance, particularly in applications that require a lot of disk activity, such as database servers or video streaming.
- Higher data transfer rates: A 7.2K RPM spindle speed can deliver higher data transfer rates compared to slower spindle speeds, which can be especially important for large file transfers.
- Better reliability: In general, faster spindle speeds can lead to better reliability and less wear and tear on the HDD, as they are better able to handle heavy workloads.
- Lower cost: Compared to higher spindle speeds such as 10K or 15K RPM, 7.2K RPM HDDs tend to be less expensive, making them a cost-effective option for many applications.
Overview of the SATA 6GBPS Interface
The Serial ATA (SATA) 6Gbps interface is a widely used standard for connecting storage devices, such as hard disk drives (HDDs), solid-state drives (SSDs), and optical drives, to a computer’s motherboard or storage controller.
Here is an overview of the SATA 6GBPS interface:
- High speed: The SATA 6Gbps interface provides a maximum theoretical data transfer rate of up to 6 gigabits per second (Gbps), which is significantly faster than the previous SATA 3Gbps standard.
- Backwards compatibility: SATA 6Gbps is backwards compatible with earlier SATA versions, so devices using the SATA 6Gbps standard can be used with SATA 3Gbps or SATA 1.5Gbps interfaces.
- Ease of use: SATA cables are relatively thin and flexible, making them easy to install and work with in tight spaces.
- Hot swapping: SATA devices can be hot swapped, meaning they can be removed and replaced while the computer is still running, without needing to reboot.
- Wide industry adoption: SATA 6Gbps is a widely adopted interface standard, which means that there is a large variety of compatible devices available.
Compatibility with HPE Servers and Storage Systems

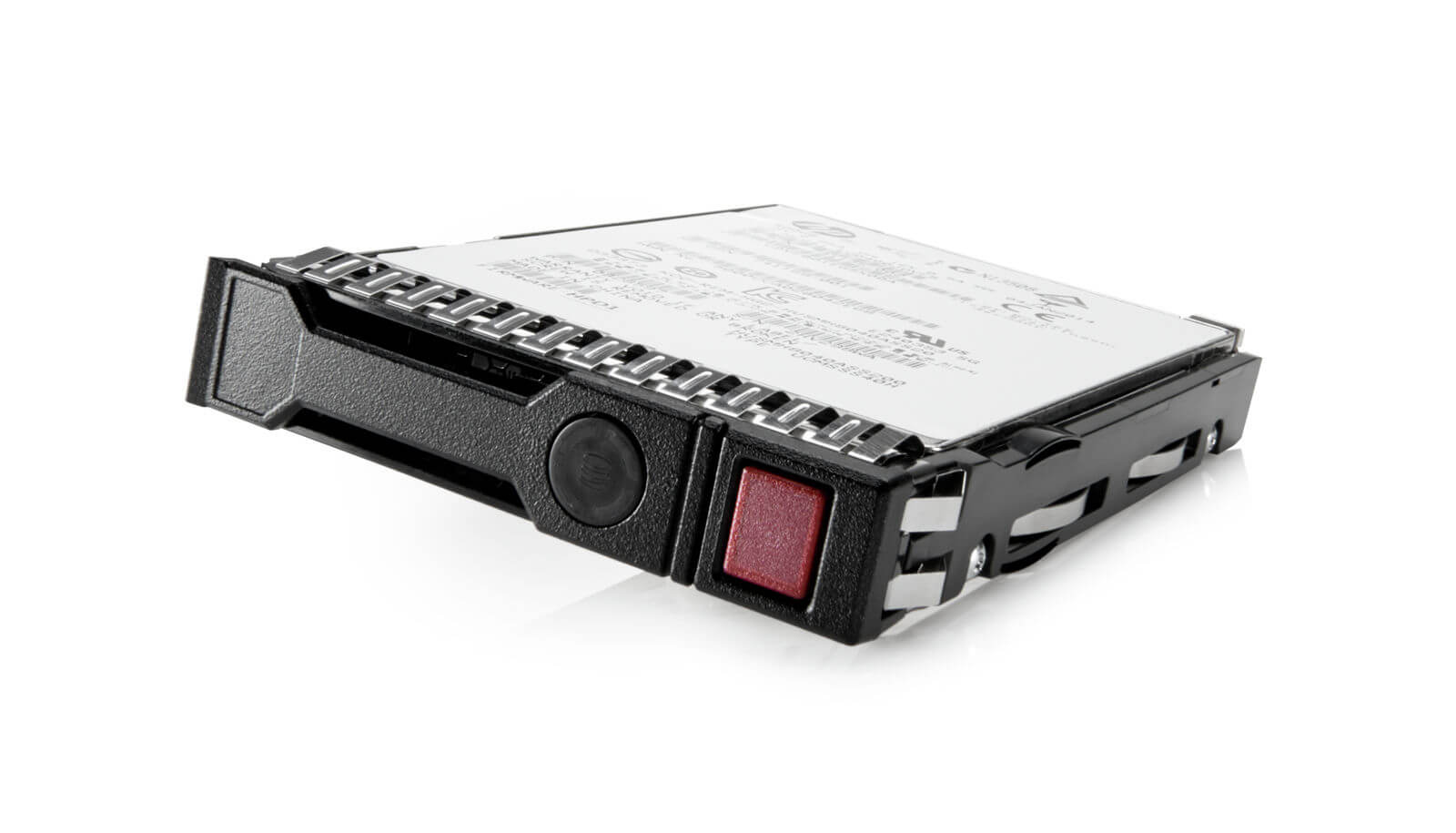

The HPE 6TB 7.2K RPM SATA 6Gbps HDD, with part number 765251-002, is compatible with a wide range of HPE servers and storage systems. Some of the key systems that are compatible with this drive include:
- HPE ProLiant DL Series: The HPE 6TB HDD is compatible with several models in the HPE ProLiant DL Series, including the DL360 Gen10, DL380 Gen10, and DL580 Gen10.
- HPE ProLiant ML Series: This HDD is also compatible with several models in the HPE ProLiant ML Series, such as the ML110 Gen10, ML350 Gen10, and ML570 Gen10.
- HPE Apollo Systems: The HPE 6TB HDD is compatible with several HPE Apollo systems, including the Apollo 4200 Gen10, Apollo 4500 Gen10, and Apollo 6000 Gen10.
- HPE StoreEasy Storage Systems: The HPE 6TB HDD is compatible with several HPE StoreEasy storage systems, including the StoreEasy 1450, 1550, and 1650.
- HPE MSA Storage Systems: This HDD is also compatible with several HPE MSA Storage systems, including the MSA 2050 and MSA 2052.
The HPE 6TB 7.2K RPM SATA 6Gbps HDD is compatible with a wide range of HPE servers and storage systems, making it a versatile and flexible storage solution for many different applications.
Product Information:
- Part Number : 765251-002
- Type : Hard Drive – Hot-swap
- Sub-Type : 6TB 7.2K RPM SATA 6GBPS
- Manufacturer : Hewlett Packard Enterprise (HPE)
- Brand Name : HPE
Technical Information
- Capacity : 6 TB
- Form Factor : 3.5 LFF
- Interface : SATA 6GB/S
- Data Transfer Rate : 600 MBPS
- Spindle Speed : 7200 RPM
- Features : Native Command Queuing (NCQ)
- Dimensions (wxdxh) : 4.2 In X 6.7 In X 1.1 In
- Bundled With : HPE Smartdrive Carrier
Performance
- Drive Transfer Rate : 600 MBPS (external)
- Spindle Speed : 7200 RPM
- Seek Time : 8.5 MS (average) / 15.7 MS (max)
- Track-to-track Seek Time : 0.7 MS
Expansion & Connectivity
- Interfaces : 1 X SAS 12 GB/S
- Compatible Bays : 3.5 LFF
Environmental Parameters
- Min Operating Temperature : 50 °F
- Max Operating Temperature : 95 °F
Compatibility Information:
- Proliant Dl180 Gen9, Dl180 Gen9 Base, Dl180 Gen9 Entry, Dl180 Gen9 Storage, Dl20 Gen9, Dl20 Gen9 Entry, Dl20 Gen9 Performance, Dl320e Gen8, Dl320e Gen8 Base, Dl320e Gen8 Entry, Dl320e Gen8 Performance, Dl320e Gen8 Special Server, Dl320e Gen8 V2, Dl320e Gen8 V2 Base (3.5), Dl320e Gen8 V2 Entry (3.5), Dl320e Gen8 V2 Performance (3.5), Dl60 Gen9 (3.5), Dl60 Gen9 Base (3.5), Dl60 Gen9 Entry (3.5), Dl80 Gen9 (3.5), Dl80 Gen9 Entry (3.5), Ml110 Gen9 (3.5), Ml110 Gen9 Base (3.5), Ml110 Gen9 Entry (3.5), Ml30 Gen9 (3.5), Ml30 Gen9 Base (3.5), Ml30 Gen9 Performance (3.5), Ml350 Gen9 (3.5), Ml350 Gen9 Base (3.5), Ml350 Gen9 Entry (3.5), Ml350 Gen9 Performance (3.5), Storeeasy 1650.
