Description
Technical Specifications of the Expansion Module

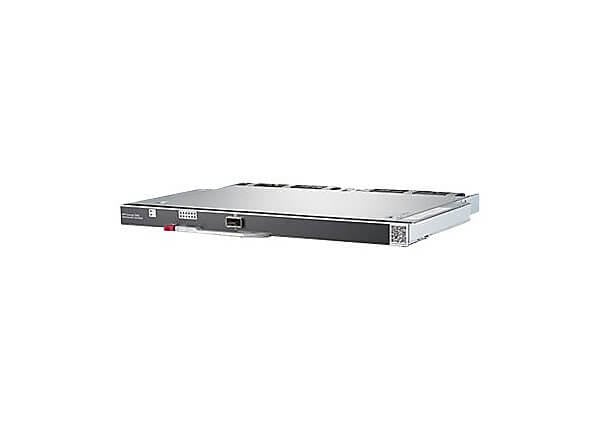

The 785340-001 HPE Synergy 10GB Interconnect Link Module is an expansion module designed for the HPE Synergy composable infrastructure platform. It is used to connect HPE Synergy compute modules to the fabric interconnect modules in the Synergy frame.
Here are the technical specifications of the expansion module:
- Connectivity: The module provides 16 internal 10GbE connections to Synergy compute modules and 4 external 10GbE connections to the fabric interconnect modules.
- Form factor: The module is a half-height, half-width form factor, which means it takes up half the height and half the width of a standard Synergy frame bay.
- Speed: The module supports data transfer rates of up to 10 Gbps per port.
- Protocols: The module supports Ethernet protocols, including IEEE 802.3, 802.3ae, and 802.3an.
- Compatibility: The module is compatible with HPE Synergy 12000 Frame, HPE Synergy 480 Gen10 Compute Module, HPE Synergy 660 Gen10 Compute Module, and HPE Synergy 620 Gen9 Compute Module.
- Hot-pluggable: The module is hot-pluggable, which means it can be inserted or removed from the Synergy frame without shutting down the system.
- Power consumption: The module has a maximum power consumption of 30 watts.
Features and Benefits of this Module
The HPE Synergy 10GB Interconnect Link Module, part number 785340-001, is an expansion module that provides additional connectivity options for the HPE Synergy Composable Infrastructure platform. Here are some of its key features and benefits:
- 10 Gigabit Ethernet (10GbE) Connectivity: This module supports high-speed 10GbE networking, which enables faster data transfer rates and low-latency performance.
- Hot-Swappable Design: The module is designed to be hot-swappable, which means it can be replaced while the system is still running, minimizing downtime and service interruptions.
- High Availability: The module is designed to provide high availability and resiliency, ensuring that network connectivity remains uninterrupted even in the event of a module failure.
- Flexible Deployment: The module can be deployed in a variety of configurations, including as a standalone module, in a single module bay, or in a multi-module bay configuration.
- Simplified Management: The module is designed to be easily managed through the HPE Synergy management interface, which provides a single pane of glass for managing all aspects of the system.
- Scalable: The module is designed to be scalable, allowing additional modules to be added as needed to support growing workloads and changing business needs.
Design and Physical Characteristics
The 785340-001 HPE Synergy 10GB Interconnect Link Module is an expansion module designed to be used with HPE Synergy frame-based compute solutions. It is used to provide high-speed connectivity between compute modules, enabling communication and data transfer within a Synergy system.
In terms of physical characteristics, the 785340-001 module has the following features:
- Dimensions: The module measures 3.3 x 12.2 x 23.3 cm (H x W x D), making it a compact and space-saving option for use in data center environments.
- Weight: It weighs approximately 0.68 kg, which is relatively lightweight.
- Ports: The module has 16 external 10GbE SFP+ ports and 6 internal 10GbE SFP+ ports, which can be used to connect compute modules and other devices within the Synergy system.
- Power: The module requires a power supply of 100-240 VAC, 50-60 Hz, and has a maximum power consumption of 32 watts.
Specification
- Manufacturer: HPE
- Manufacturer Part Number: 785340-001
- Type: Networking
- Sub-Type: 10 Gigabit
- Device Type : Expansion Module
Networking
- Ports : 10GB Ethernet X 12
- Data Link Protocol : 10 GIGE
- Data Transfer Rate : 10 GBPS
- Performance : Latency: 5 µs
Expansion / Connectivity
- Interfaces : 12 X 10GB Ethernet
