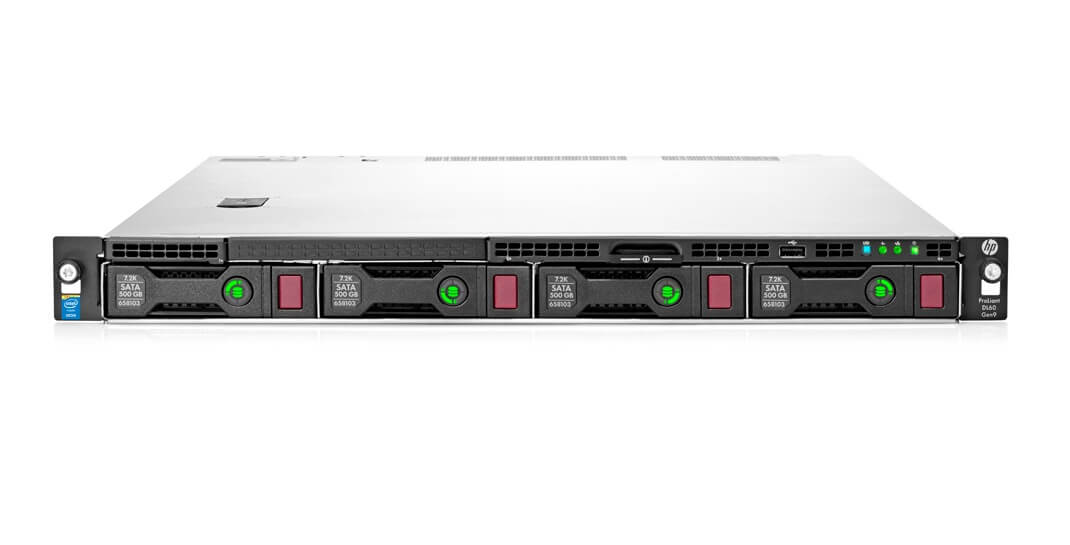

The HPE 785836-B21 Proliant DL60 is a server designed for businesses and organizations that require a reliable and high-performing computing system. This server is equipped with advanced features and technologies that allow it to handle complex workloads and applications with ease. In this article, we will explore the key specifications and features of the HPE 785836-B21 Proliant DL60.
Processor
The HPE 785836-B21 Proliant DL60 is powered by an Intel Xeon 6-Core E5-2609V3 processor with a clock speed of 1.9 GHz. This processor is designed for high-performance computing and is capable of handling multiple tasks simultaneously. It also features Intel Hyper-Threading technology, which allows each core to handle two threads, improving the server’s overall processing power.
Memory
The HPE 785836-B21 Proliant DL60 comes with 8GB of DDR4 memory. DDR4 is the latest memory technology and offers significant performance improvements over its predecessor, DDR3. DDR4 memory is faster, more efficient, and can handle larger amounts of data. The HPE 785836-B21 Proliant DL60 supports up to 384GB of DDR4 memory, allowing for significant expansion as the server’s workload grows.
Storage
The HPE 785836-B21 Proliant DL60 supports up to four 3.5-inch or eight 2.5-inch SATA/SAS hard drives or solid-state drives (SSDs). It also features an embedded HP Smart Array B140i SATA RAID controller, which supports RAID levels 0, 1, 10, and 5. This controller provides hardware-based data protection and can significantly improve the server’s overall performance.
Network Connectivity
The HPE 785836-B21 Proliant DL60 comes with four Gigabit Ethernet ports, providing high-speed connectivity for networked devices. It also features an embedded HPE 361i dual-port 1 Gb Ethernet adapter, which provides an additional two Ethernet ports. This adapter supports a range of networking protocols, including TCP/IP, UDP, and IPX.
Management and Monitoring
The HPE 785836-B21 Proliant DL60 features an integrated Lights-Out (iLO) management engine, which allows remote management and monitoring of the server. The iLO management engine provides access to the server’s BIOS, system health, and performance information, allowing administrators to quickly and easily diagnose and resolve issues.
Operating System
The HPE 785836-B21 Proliant DL60 supports a range of operating systems, including Windows Server, Red Hat Enterprise Linux, and SUSE Linux Enterprise Server. This flexibility allows organizations to choose the operating system that best suits their needs.
Summary,The HPE 785836-B21 Proliant DL60 is a high-performing and reliable server that is designed for businesses and organizations with demanding computing requirements. With its advanced features and technologies, it is capable of handling complex workloads and applications with ease. Its powerful processor, high-capacity memory, and flexible storage options make it an ideal choice for organizations that require a scalable and reliable computing system. The HPE 785836-B21 Proliant DL60 is an excellent investment for any business looking to improve its computing infrastructure.
General Information
- Manufacturer : HPE
- Manufacturer Part Number : 785836-B21
- Type: Server
- Sub-Type: Proliant Dl60
Processor & Chipset
- Processor Type : Intel XEON E5-2609V3/ 1.9GHZ
- Quickpath Interconnect : 6.4 GT/S
- Number Of Cores : 6-Core
- 64-bit Computing : Yes
- Compatible Processor Socket : Fclga2011-3
- Installed Qty : 1
- Max Supported Qty : 2
- Chipset Type : Intel C610 Series
Cache Memory
- Cache Memory Type : Smart Cache
- Installed Size : 15MB
- Cache Per Processor : 15 MB
Memory
- Installed Size : 8(1×8) GB / 128 GB (MAX)
- Technology : DDR4 Sdram PC4-17000r ( DDR4-1600)
- Form Factor : Dimm 288-Pin
- Total Memory Slots : 8
- Ram Supported : 128 GB – Registered, 256 GB – Load-reduced
Storage
- Hard Drive : None
- Optical Drive : None
Storage Controllers
- Storage Controller Name : Smart Array B140I
- Buffer Size : None
- Disk Drive : Up To 6GB/S SATA (SERIAL ATA)
- Connectors : 10 Internal Sata Connectors
- Server Interface : X4 Pcie 2.0
- Sata Speed : 6GB/S SATA Links
- Logical Drives Supported : Up To 8 Logical Volumes (6 Physical Drives)
- Host Memory Addressing : 64-bit, Supporting Greater Than 4gb Server Memory Space
- Raid Support : Raid 0, Raid 1, Raid 5, Raid 10, Raid 50
Graphics Controller
- Type : Integrated
- Graphics Processor : Matrox G200eh2
- Video Interfaces : VGA
Network & Communication
- Ethernet Controller : HP Ethernet 1GB 2-port 361I Adapter
- Network Interface : 10Base-T/100base-Tx/1000Base-Tx
- Ethernet Controller : I350 Powerville
- Data Link Protocol : Ethernet, Fast Ethernet, Gigabit Ethernet
- Remote Management Controller : Integrated Lights-Out 4
- Features : Wake On Lan (Wol), Pxe Support
- Connector : Rj-45 (Two)
- Compliant Standards : Ieee 802.3, Ieee 802.3u, Ieee 802.3ab, Ieee 802.1as, Ieee 802.3AZ
Power Description
- Device Type : Flex Slot Platinum Plus Power Supply
- Installed Qty : 1
- Nominal Voltage : AC 120/230 V (50/60 Hz)
- Power Provided : 550 WATT
Expansion/ Connectivity
- Expansion Bays Total (Free) :
- 4 (Total) / 4 (Free) X Hot-Swap 3.5 LFF
Expansion Slots Total (Free)
- 2 (Total) / 1 (Free) X Cpu
- 8 (Total) / 7 (Free) X Dimm 288-Pin
- 1 (Total) / 1 (Free) X Pcie 3.0 X16 – Low-Profile
- 1 (Total) / 1 (Free) X Pcie 3.0 X8 – Low-Profile
- 1 (Total) / 1 (Free) X Pcie 3.0 X8 – Half-Length, Full-Height
- 1 (Total) / 1 (Free) X Microsd Card (Internal)
Interfaces & Ports
- 2 X Lan (Gigabit Ethernet)
- 1 X VGA
- 1 X Usb 2.0 ( 1 In Front )
- 3 X Usb 3.0 ( 2 Rear, 1 Internal )
Dimensions & Weight
- Depth : 23.9 Inch
- Width : 17.1 Inch
- Height : 1.7 Inch
- Weight : 19.8 Lbs
