Description
Management and Security Features
- Remote management with HPE iLO and HPE OneView
- HPE Secure Boot and HPE Secure Recovery
- HPE Smart Array P440ar Controller with FBWC
- HPE Trusted Platform Module (TPM) 2.0
- HPE Proactive Security and Advanced Data Security
- HPE Secure Encryption and HPE Secure Erase
- HPE Secure Compartmentalization and HPE Secure Virtualization
- HPE Secure Remote Services and HPE Secure Development Lifecycle
- HPE Security Information and Event Management (SIEM) Integration
- HPE Security and Compliance Management
- HPE Cyber Recovery and HPE Secure File Sharing.
Rack Compatibility and Mounting
- Rack Compatibility: The HPE Proliant DL380 G9 is compatible with standard 19-inch racks.
- Rack Unit (U) Size: The server is a 2U rack-mountable form factor, which means it is designed to take up 2U (3.5 inches) of vertical space in a rack.
- Rack Rails: The server comes with rack rails that allow for easy installation in a standard rack.
- Cable Management: The server has cable management arm that helps to organize and route cables, reducing cable clutter and improving airflow.
- Rack Stability: The server has features such as tool-less, fixed rail rack mounting and cable management arm for ensuring stability when rack mounting.
- Mounting Hardware: The server includes necessary mounting hardware for installing it in a rack.
- Weight and Dimension: The server weight of the HPE Proliant DL380 G9 is around 24.5 kg and the dimension is Width: 4.32 in (110 mm) x Height: 3.44 in (87 mm) x Depth: 27.5 in (699 mm)
- Rack density: The server supports up to 8 Small Form Factor (SFF) drives, providing high-density storage in a compact 2U form factor.
Processor and Memory
- Processor: The HPE Proliant DL380 G9 is equipped with an Intel Xeon E5-2620v3 processor with 2.4GHz base frequency and 6 cores.
- Processor Socket: The processor socket is LGA 2011-3 socket.
- Processor Cache: The processor has 15MB SmartCache.
- Memory Type: The server supports DDR4 memory.
- Memory Speed: The memory speed is 2133 MHz.
- Memory Capacity: The server comes with 16GB of DDR4 SDRAM memory.
- Memory Expansion: The server supports up to 768GB of memory with 24 DIMM slots.
- Memory Configurations: The server supports various memory configurations, including 1GB/2GB/4GB/8GB/16GB/32GB DIMMs.
- Memory protection: The server supports Advanced ECC, Memory Mirroring, Memory RAS and Memory Sparing.
- Memory upgradability: The memory is user-upgradable and can be easily upgraded to meet the changing needs of the business.
General Information
- Manufacturer : Hewlett Packard Enterprise(HPE)
- MPN : 800073-S01
- Type: Server
- Server Type: Proliant Dl380
- SKU: 800073-S01

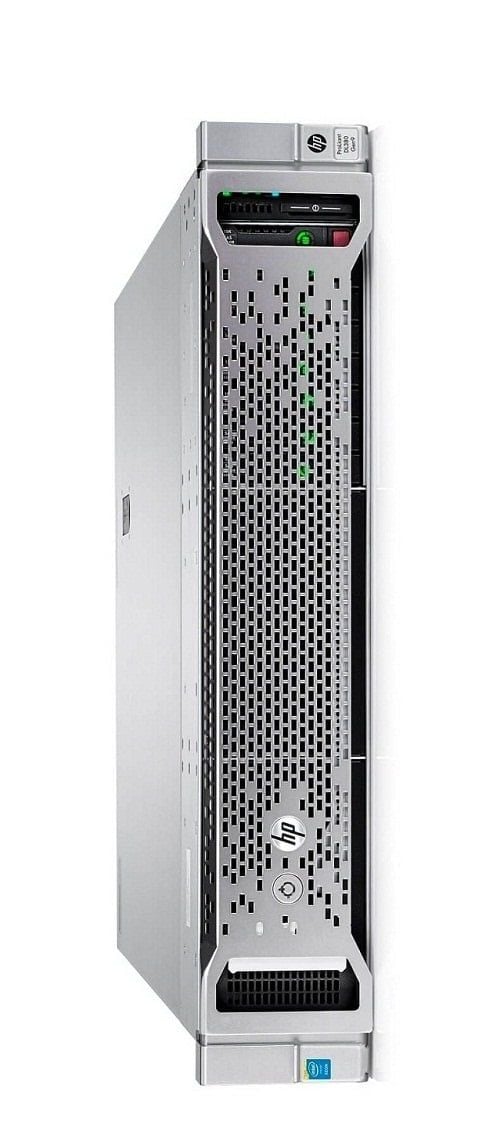

- Product Name: Proliant Dl380 G9 2u Rack Mountable Server (S-Buy)
Processor & Chipset
- Processor Type : Intel Xeon E5-2620v3/ 2.4GHz
- Max Turbo Speed : 3.2 GHz
- Quickpath Interconnect: 8.0 Gt/S
- Number Of Cores : Hexa-Core
- 64-Bit Computing : Yes
- Compatible Processor Socket : Fclga2011-3
- Installed Qty : 1
- Max Supported Qty : 2
- Chipset Type : Intel C610 Series
Cache Memory
- Cache Memory Type : Smart Cache
- Installed Size : 15MB
- Cache Per Processor : 15MB
Memory
- Installed Size : 16GB (1x16GB) / 384 GB (Max)
- Technology : Ddr4 Sdram Pc4-17000r (Ddr4-2133)
- Form Factor : Dimm 288-Pin
- Total Memory Slots : 24
- Ram Supported : Pc4-17000 – 384 Gb – Registered, Pc4-17000 – 1.5 Tb – Load-Reduced
Storage Controllers
- Hard Drive : None.
- Optical Drive Type : None.
Storage Controllers
- Storage Controller Name : Smart Array P440ar
- Buffer Size : 2 Gb
- Disk Drive : 12gb/S Sas / 6gb/S Sata
- Sas Port Link Rate : 12gb/S Per Physical Link Supported
- Pcie Link Rate : Pci Express 3.0 X8 (Pcie3 X8)
- Physical Drives : Up To 26 Drives
- Logical Drives Supported : Up To 64 Logical Drives
- Raid Support : Raid 0, Raid 1, Raid 5, Raid 6, Raid 10, Raid 50, Raid 60, Raid 1 Adm, Raid 10 Adm
Display & Graphics Controllers
- Graphics Controller Type : Integrated Matrox G200eh2
- Video Memory : 16 Mb
Networking & Communication
- Ethernet Controller : Hp Ethernet 1gb 4-Port 331i Adapter
- Network Processor : Broadcom Bcm5719 Chipset
- Ethernet Ports : 4 X Gigabit Ethernetduplex Theoretical Bandwidth
- Data Link Protocol : Ethernet, Fast Ethernet, Gigabit Ethernet
- Remote Management Protocol : Integrated Lights-Out 4
- Remote Management Controller : Rj-45 (Two)
- Features : Wake On Lan (Wol), Pxe Support
- Compliant Standards : Ieee 802.3, Ieee 802.3u, Ieee 802.3ab
Description
- Device Type : Flex Slot Platinum Plus Hot-Plug Power Supply
- Installed Qty : 2
- Max Supported Qty : 2
- Nominal Voltage : Ac 100-240v (50/60 Hz)
- Power Provided : 500 Watt
