Description

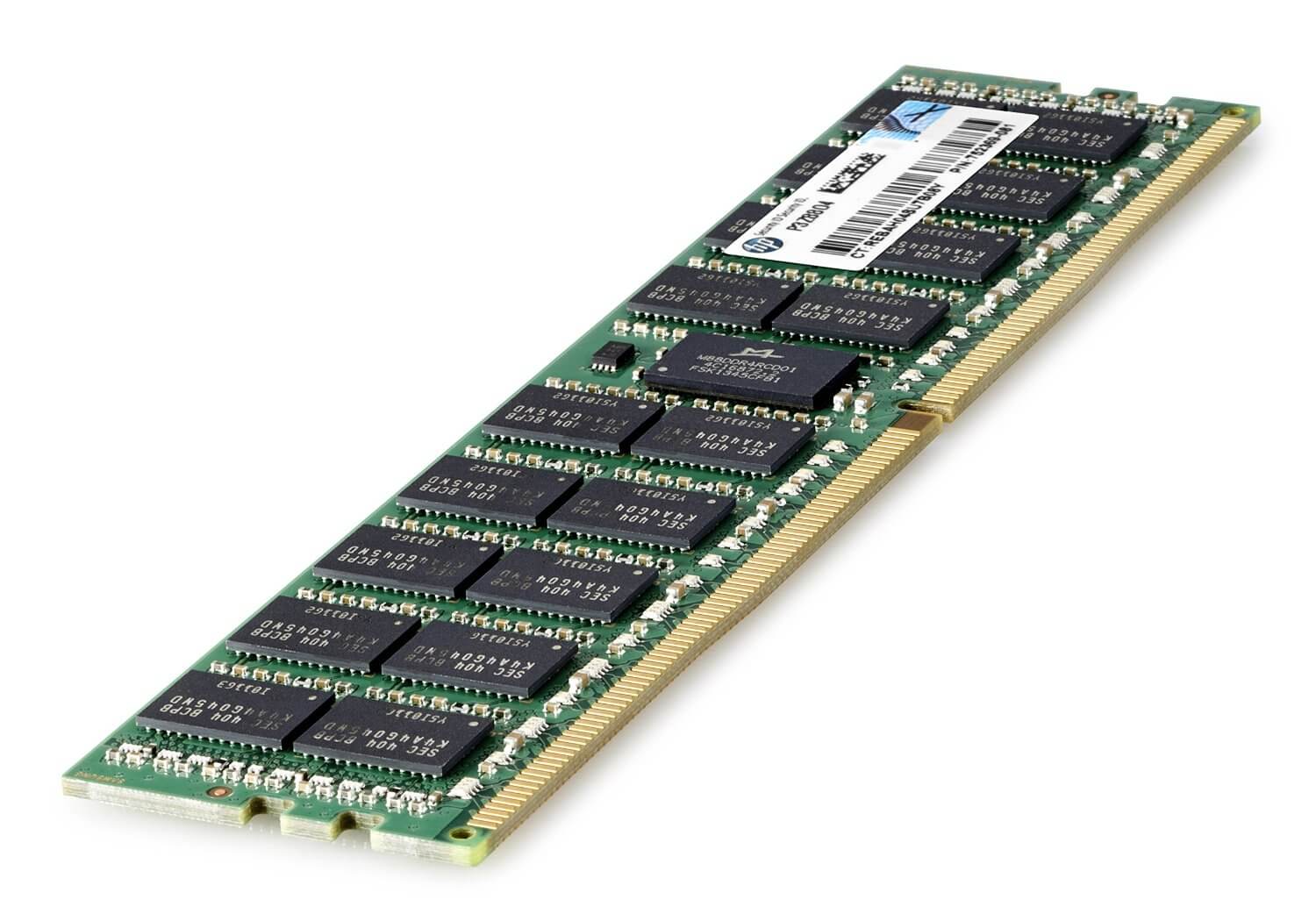

Introduction to the HPE 32GB PC4-17000 CL15 ECC RAM
The HPE 32GB PC4-17000 CL15 ECC RAM is a high-performance memory module designed for use in servers and high-end desktop computers. With a capacity of 32GB and a speed of 2133MHz, this RAM is capable of handling demanding workloads and applications. The RAM is built using DDR4 technology, which allows for faster data transfer rates and improved energy efficiency compared to earlier DDR memory types. The ECC (Error Correction Code) feature of this RAM also provides added data integrity and reliability, making it a great choice for mission-critical applications. The CL15 latency rating ensures fast access to stored data and the 288-pin design ensures compatibility with a wide range of motherboards.
Key Features of the HPE 32GB ECC RAM
The HPE 32GB ECC RAM is a type of computer memory that has several key features, including:
- High capacity: With 32GB of memory, this RAM module can handle large amounts of data and support demanding applications.
- Error-correcting code (ECC): ECC is a technology that detects and corrects errors in the data stored in the memory. This helps to ensure the integrity of the data and prevent data corruption.
- DDR4: The HPE 32GB ECC RAM uses DDR4 technology, which is the latest generation of memory technology. It offers higher performance and improved energy efficiency compared to earlier DDR versions.
- Compatibility: This RAM module is designed to be compatible with a wide range of HPE servers and workstations, allowing for easy upgrades to existing systems.
- Reliability: HPE is a well-known brand in the computer industry, known for its high-quality products and customer support. This RAM module is built to the same standards, ensuring reliability and longevity.
How the Dual Rank DDR4 Technology Enhances Performance
Dual rank DDR4 technology is a feature that enhances the performance of computer memory by allowing for more data to be accessed simultaneously.
Each rank of memory is a 64-bit wide memory channel, so with dual rank memory, the memory controller can access two 64-bit memory channels at the same time, effectively doubling the memory bandwidth. This allows for more data to be processed at once, resulting in faster performance.
Additionally, dual rank DDR4 technology allows for more memory capacity to be installed on a system, as it allows for 2 DIMMs to be populated on a channel instead of just one.
It also allows for better utilization of the memory controller and memory bus, which can lead to an increase in overall system performance.
Comparison to Non-ECC RAM
ECC (Error-Correcting Code) RAM is a type of computer memory that includes additional hardware to detect and correct errors in the data stored in the memory. Non-ECC RAM, on the other hand, does not have this error-correction capability.
Here are some key differences between ECC and non-ECC RAM:
- Data integrity: ECC RAM is better at maintaining the integrity of the data stored in memory, as it can detect and correct errors that may occur due to factors such as electromagnetic interference or cosmic radiation. Non-ECC RAM, on the other hand, cannot detect or correct these errors, which could lead to data corruption and system crashes.
- Reliability: ECC RAM is generally considered to be more reliable than non-ECC RAM, as it can detect and correct errors before they cause serious problems.
- Performance: ECC RAM may have slightly lower performance than non-ECC RAM, as the error-correction process requires additional processing power. However, the difference in performance is typically small and may not be noticeable in most cases.
- Cost: ECC RAM is generally more expensive than non-ECC RAM, due to the additional hardware required for error correction.
- Applications: ECC RAM is typically used in servers, workstations, and other high-performance systems where data integrity and reliability are critical. Non-ECC RAM is more commonly used in consumer-grade devices, such as personal computers and laptops.
General Information
- Manufacturer: HPE
- Manufacturer Part Number: 803668-S21
- Type: Memory (RAM)
- Sub-Type: PC4-17000
- Product Name: 32GB DDR4 SDRAM Memory Module
Technical Information
- Storage Capacity: 32GB
- Memory Technology: DDR4 SDRAM
- Number Of Modules: 1 X 32GB
- Bus Speed: 2133mhz DDR4-2133/PC4-17000
- Data Integrity Check: Ecc
- Signal Processing: Registered , Dual Rank
- Cas Latency Timings: Cl15
- Component Rank: 4rx4
- Cas Latency: Cl15
- Pin Count: 288-Pin
- Voltage: 1.20v
Compatibility
- HPE Apollo 4200 Gen9, 4510 Gen9, 4520 Gen9, 4530, Proliant Bl460c Gen9, Bl660c Gen9, Dl160 Gen9, Dl180 Gen9, Dl360 Gen9, Dl380 Gen9, Dl388 Gen9, Dl560 Gen9, Dl580, Dl580 Gen9, Dl80 Gen9, Ml350 Gen9, Ws460c Gen9, Xl170r Gen9, Xl190r Gen9, Xl230a Gen9, Xl250a Gen9
