Description
High Capacity and High Performance Storage Solution

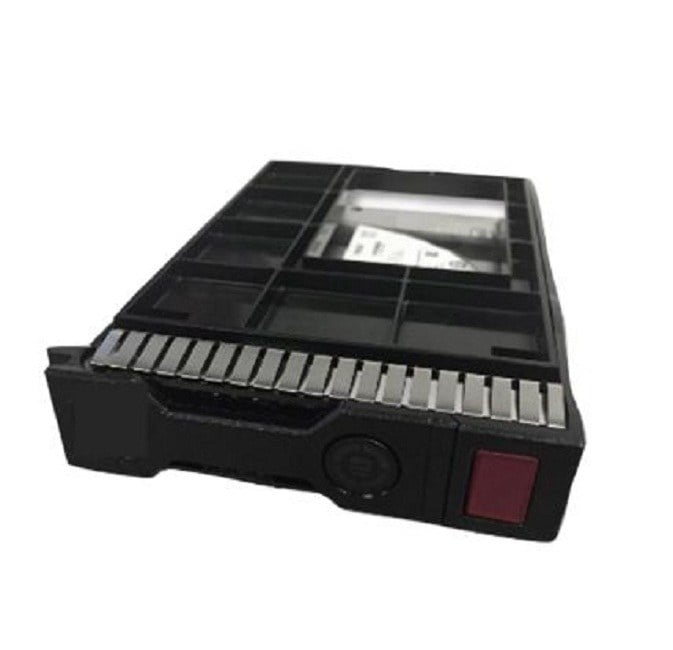

The HPE 804634-H21 is a solid-state drive (SSD) produced by Hewlett Packard Enterprise (HPE). It’s a high-capacity and high-performance storage solution that has been optimized for mixed use in enterprise environments.
- SATA 6GBps interface: This refers to the type of interface used to connect the drive to the computer’s motherboard. SATA stands for Serial ATA, and 6GBps refers to the maximum data transfer rate of 6 gigabytes per second.
- 1.6TB: This is the storage capacity of the drive, which means it can store up to 1.6 terabytes of data. This high storage capacity makes it ideal for storing large amount of data.
- 3.5 inch: This refers to the form factor of the drive, which is the physical size and layout of the drive. A 3.5 inch drive is designed to fit into a standard 3.5 inch drive bay in a computer.
- Mixed use: This refers to the intended usage of the drive, mixed use means that the drive is optimized for a wide range of applications such as boot, data, and archive storage.
- SSD: This stands for solid-state drive, which is a type of storage device that uses flash memory to store data. Unlike traditional hard drives, SSDs have no moving parts and are typically faster, more reliable, and more durable.
Compatibility and Installation
The HPE 804634-H21 is a SATA 6GBps solid-state drive (SSD) with a capacity of 1.6 terabytes (TB). It is a 3.5-inch drive designed for mixed-use scenarios.
In terms of compatibility, the HPE 804634-H21 is designed to work with a wide range of enterprise storage systems and servers that support the SATA III interface. It is important to check the compatibility of the drive with your specific system before purchasing.
Installation of the HPE 804634-H21 is similar to installing any other 3.5-inch drive. The drive will need to be physically installed into the system, usually by inserting it into an available drive bay and securing it with screws. Once the drive is physically installed, it will need to be configured and formatted by the operating system before it can be used.
It is recommended to follow the manufacturer’s instructions for installation, and it is also highly recommended to consult your system administrator or the technical support team of your organization before installing the drive in order to ensure that it is done correctly and doesn’t cause any issues with the existing system.
Maintenance and Troubleshooting
The HPE 804634-H21 is a high-performance solid-state drive (SSD) with a capacity of 1.6 TB. It uses the SATA 6 Gbps interface and has a 3.5-inch form factor. This SSD is designed for mixed use workloads.
To troubleshoot and maintain the HPE 804634-H21 SSD, the following steps can be taken:
- Check the system logs for any error messages related to the SSD.
- Ensure that the SSD is properly connected to the system and that all cables are securely seated.
- If the SSD is part of a RAID configuration, ensure that the RAID controller and firmware are up-to-date and that the RAID is in a healthy state.
- Run diagnostic utilities provided by the manufacturer to check the health of the SSD.
- If the SSD is experiencing performance issues, check the system for any resource bottlenecks (such as high CPU or memory usage) that may be causing the problem.
- If the SSD is failing, it will need to be replaced.
Main Information about this HPE 804634-H21 SSD
- HPE 804634-H21 1.6TB SATA-6GBPS SCC Mixed Use Solid State Drive
- Manufacturer :HPE
- Part Number or SKU# 804634-H21
- Device Type: Solid State Drive – Hot-Swap
- Capacity: 1.6 TB
- Form Factor: 3.5 inch LFF
- Interface Type: SATA 6Gbps
- Plug Type: Hot Pluggable
- NAND Flash Memory Type: eMLC
- Carrier Type: Smart Carrier Converter (SCC)
- Workload Type: Mixed Use
- Features: Power Loss Protection (PLP), Digitally Signed Firmware (DS)
- Bundled with: HPE Smart Carrier Converter
- Platform Supported: HPE ProLiant Rack/Tower/BladeSystem Servers/Synergy
- Height: 15 mm
Performance of HPE 1.6TB Solid State Drive
- Drive Writes Per Day (DWPD): 3
- Drive Transfer Rate: 6 Gb/sec (external)
- MAX Seq. Reads Throughput (MiB/s): 535
- MAX Seq. Writes Throughput (MiB/s): 360
- Random Read Average Latency uSec (4KiB,Q1): 115
- Random Write Average Latency uSec (4KiB,Q1): 50
- Random Read IOPS (4KiB, Q=16): 64000
- Random Write IOPS (4KiB, Q=16): 23000
- Max Random Read IOPS (4KiB): 71000@Q32
- Max Random Write IOPS (4KiB): 23000@Q4
- 4KiB Random 70% Read / 30% Write, Queue 32 Performance (IOPS) VI-1: 44000
- 4KiB Random 50% Read / 50% Write, Queue 32 Performance (IOPS) VI-2: 34000
Product Dimensions & Weight for this HPE 3.5 inch LFF SSD
- Height: 5.63 inch
- Width: 3.75 inch
- Depth: 7.00 inch
- Weight: 1.35 lbs
Power of HPE SATA 6GBPS Solid State Drive
- Idle Time: 1.20 Watt
- Random Read: 0.39 Watt
- Random Write: 0.39 Watt
- Sequential Read: 0.34 Watt
- Sequential Write: 6.69 Watt
- Random Read/Write: 0.39 Watt
Compatibility
- HPE ProLiant BL Series: BL420c (Gen8 Gen9) BL460c (Gen8 Gen9) BL465c (Gen8 Gen9)
- HPE ProLiant DL Series: DL20 (Gen9) DL60 (Gen9) DL80 (Gen9) DL120 (Gen8 Gen9) DL160 (Gen8 Gen9) DL180 (Gen8 Gen9) DL320e (Gen8 Gen9) DL360e (Gen8 Gen9) DL360p (Gen8 Gen9) DL380e (Gen8 Gen9) DL380p (Gen8 Gen9) DL388 (Gen9)
- HPE ProLiant ML Series: ML110 (Gen8 Gen9) ML150 (Gen8 Gen9) ML310e (Gen8 Gen9) ML350 (Gen8 Gen9) ML350e (Gen8 Gen9)
- HPE ProLiant SL Series: SL200t (Gen8 Gen9) SL230s (Gen8 Gen9) SL250s (Gen8 Gen9) SL2500 SL4550 (Gen8 Gen9) SL4545 (Gen8 Gen9) SL454x
- HPE Storage Arrays: D3600 D3700
- HPE StoreEasy: 1430 1440 1530 1540 1630 1640
Contact us or ask for live chat/help if you have any questions about the compatibility of this item to ensure the model’s matching features with your current system
