Description
SATA-6GBPS Interface
The SATA-6GBPS interface is a type of connection protocol that allows the HPE 804638-001 SSD to communicate with the host computer. SATA stands for Serial Advanced Technology Attachment, and is a type of connection used for storage devices such as hard drives and solid-state drives. The “6GBPS” designation refers to the maximum data transfer rate supported by the interface, which is 6 gigabits per second.
The SATA-6GBPS interface is faster than previous generations of SATA, such as SATA-3GBPS and SATA-1.5GBPS, which had maximum data transfer rates of 3 gigabits per second and 1.5 gigabits per second, respectively. The increased speed of the SATA-6GBPS interface enables faster read and write speeds for the HPE 804638-001 SSD, allowing it to more quickly access and transfer data.
It is important to note that the maximum data transfer rate of the SATA-6GBPS interface is a theoretical limit, and the actual data transfer speed may be lower depending on a number of factors, such as the speed of the host computer’s processor and the type of storage controller being used. Nonetheless, the SATA-6GBPS interface is still significantly faster than previous SATA interfaces, and provides a high-performance connection for the HPE 804638-001 SSD.
Environmental Considerations
Environmental considerations are an important factor to consider when choosing a solid-state drive like the HPE 804638-001. Here are some key environmental considerations to keep in mind:
- Operating Temperature: The HPE 804638-001 is designed to operate within a specific temperature range, typically between 0°C and 70°C. Operating the drive outside of this range can affect its performance and reliability.
- Non-Operating Temperature: When the HPE 804638-001 is not in use, it should be stored in a location with a temperature range that is suitable for long-term storage. The non-operating temperature range is usually wider than the operating temperature range, typically between -40°C and 85°C.
- Humidity: High humidity can affect the performance of the HPE 804638-001 and may cause damage to the drive. It is important to store and operate the drive in an environment with moderate humidity levels.
- Shock and Vibration: Solid-state drives are sensitive to shock and vibration, which can cause damage to the drive or affect its performance. The HPE 804638-001 is designed to withstand a certain level of shock and vibration, but excessive levels may cause damage.
- ESD Protection: Electrostatic discharge (ESD) can also cause damage to the HPE 804638-001. It is important to take appropriate precautions when handling the drive to prevent ESD.
- Regulatory Compliance: The HPE 804638-001 meets a number of regulatory standards for environmental safety and performance, such as RoHS and WEEE.
Latency and Response Time
Latency and response time are two important performance metrics for solid-state drives like the HPE 804638-001.
Latency refers to the amount of time it takes for the SSD to respond to a request for data. This includes the time it takes for the drive to locate the requested data and transfer it to the host computer. Lower latency means faster access to data and better performance.
Response time, on the other hand, refers to the time it takes for the SSD to complete a request for data. This includes the time it takes for the drive to locate the requested data, transfer it to the host computer, and for the host computer to process the data. Lower response time means faster performance.
The HPE 804638-001 SSD is designed to have low latency and response time, thanks to its fast read and write speeds and high-performance SATA-6GBPS interface. This means that the drive can quickly respond to requests for data, resulting in faster performance and improved user experience.
It is important to note that latency and response time can be affected by a number of factors, including the speed of the host computer’s processor, the type of storage controller being used, and the workload being performed. Nonetheless, the HPE 804638-001 is designed to provide fast and reliable performance, with low latency and response time, making it an ideal choice for high-performance computing and data-intensive applications.

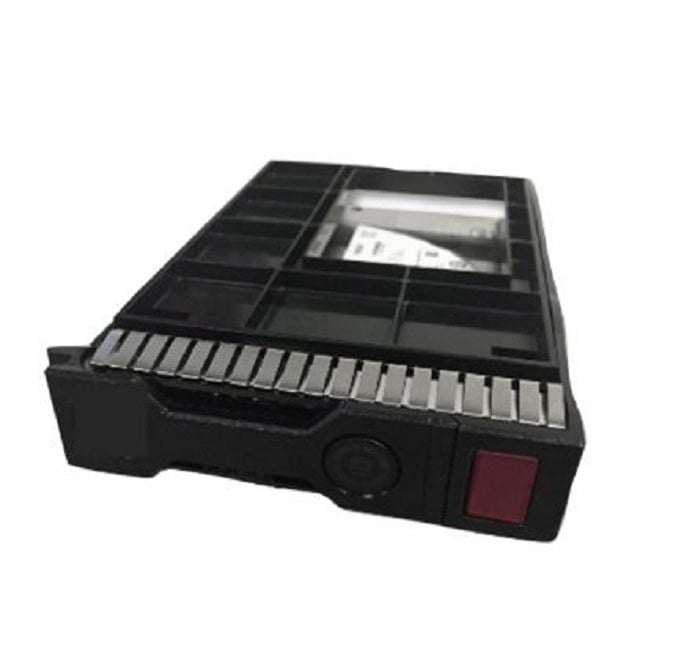

Main Informaion of HPE 804638-001 SSD
- Manufacturer :HPE
- Model Number or SKU# 804638-001
- Capacity: 200 GB
- Form Factor: 3.5 inch LFF
- Interface: SATA-6Gbps
- Carrier Type: Smart Carrier Converter (SCC)
- Workload Type: Write Intensive
- Features: Digitally Signed Firmware (DS), Power Loss Protection (PLP)
- Plug Type: Hot Pluggable
- Bundled With: Smart Carrier Converter
- Platform Supported: HPE ProLiant Rack/Tower/BladeSystem Servers/Synergy
- Height: 15 mm
Performance of 200GB SATA-6GBPS
- Endurance DWPD: 10
- Drive Transfer Rate: 600 MBps (external)
- MAX Seq. Reads Throughput (MiB/s): 540
- MAX Seq. Writes Throughput (MiB/s): 300
- Random Read Average Latency uSec (4KiB,Q1): 110
- Random Write Average Latency uSec (4KiB,Q1): 35
- Random Read IOPS (4KiB, Q=16): 64500
- Random Write IOPS (4KiB, Q=16): 42000
- Max Random Read IOPS (4KiB): 72000@Q32
- Max Random Write IOPS (4KiB): 42000@Q4
- 4KiB Random 70% Read / 30% Write, Queue 32 Performance (IOPS) VI-1: 54000
- 4KiB Random 50% Read / 50% Write, Queue 32 Performance (IOPS) VI-2: 50000
Power
- Idle Time: 1.03 Watt
- Random Read: 2.02 Watt
- Random Write: 2.02 Watt
- Sequential Read: 2.85 Watt
- Sequential Write: 4.36 Watt
- Random Read/Write: 2.02 Watt
- Power MAX: 4.36 Watt
Compatibility of HPE 3.5INCH SSD
- HPE ProLiant BL Series: BL420c (Gen8 Gen9) BL460c (Gen8 Gen9) BL465c (Gen8 Gen9)
- HPE ProLiant DL Series: DL20 (Gen9) DL60 (Gen9) DL80 (Gen9) DL120 (Gen8 Gen9) DL160 (Gen8 Gen9) DL180 (Gen8 Gen9) DL320e (Gen8 Gen9) DL360e (Gen8 Gen9) DL360p (Gen8 Gen9) DL380e (Gen8 Gen9) DL380p (Gen8 Gen9) DL388 (Gen9)
- HPE ProLiant ML Series: ML110 (Gen8 Gen9) ML150 (Gen8 Gen9) ML310e (Gen8 Gen9) ML350 (Gen8 Gen9) ML350e (Gen8 Gen9)
- HPE ProLiant SL Series: SL200t (Gen8 Gen9) SL230s (Gen8 Gen9) SL250s (Gen8 Gen9) SL2500 SL4550 (Gen8 Gen9) SL4545 (Gen8 Gen9) SL454x
- HPE Storage Arrays: D3600 D3700
- HPE StoreEasy: 1430 1440 1530 1540 1630 1640
Contact us or ask for live chat/help if you have any questions about the compatibility of this item to ensure the model’s matching features with your current system
