Description
Product Information of HPE 2.2GHz Processor

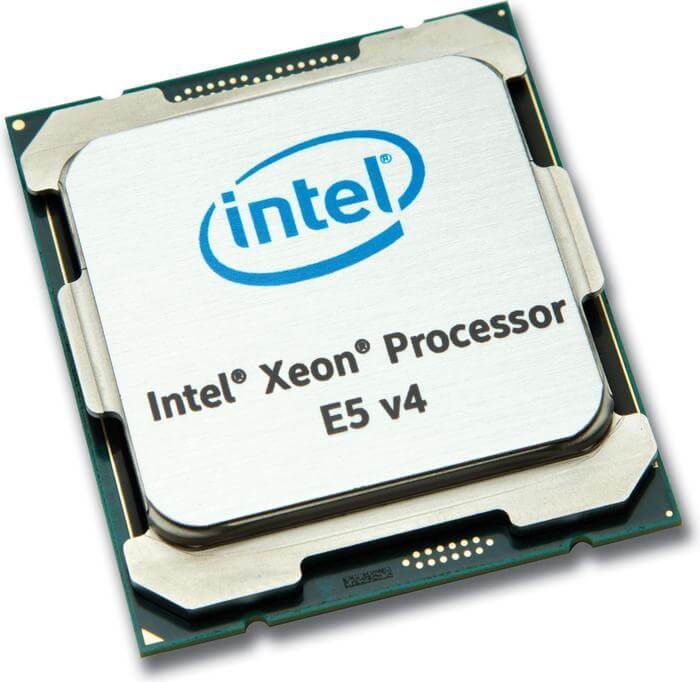

The 819855-B21 HPE Intel Xeon E5-2698V4 processor is a high-performance computing component that offers 20 cores, 40 threads, and a clock speed of 2.2 GHz. This processor has a L3 cache size of 50MB, a QPI speed of 9.6GT/s, and a power consumption of 135W. This processor is designed for use in enterprise-level servers, workstations, and data centers that require high-performance computing capabilities. This article will explain the various features of this processor and the benefits it provides.
Processor Architecture
The 819855-B21 HPE Intel Xeon E5-2698V4 processor is built on Intel’s Broadwell architecture, which is a 14nm process technology. The processor features 20 cores and 40 threads, which allows for efficient parallel processing. The processor also supports Intel’s Hyper-Threading technology, which enables the processor to execute two threads per core. This technology helps to increase the processor’s overall performance by enabling it to execute more instructions simultaneously.
The processor also supports Intel’s Turbo Boost technology, which allows the processor to dynamically adjust its clock speed based on the workload. This technology helps to improve the processor’s performance when it is needed, while also reducing power consumption when it is not.
Cache and Memory
The 819855-B21 HPE Intel Xeon E5-2698V4 processor features a 50MB L3 cache, which is a high-speed memory that stores frequently accessed data. The large cache size helps to improve the processor’s performance by reducing the amount of time it takes to access data.
The processor supports DDR4 memory, which is a high-speed, low-power memory technology that provides faster data transfer rates than its predecessor, DDR3. The processor supports up to 1.5TB of DDR4 memory when used with a compatible motherboard.
Socket and Power Consumption
The 819855-B21 HPE Intel Xeon E5-2698V4 processor uses the FCLGA2011 socket, which is a socket that is compatible with a wide range of enterprise-level motherboards. The socket provides a high-speed interface between the processor and the motherboard, which helps to improve the overall performance of the system.
The processor has a TDP (thermal design power) of 135W, which is the maximum amount of power that the processor is designed to consume under normal operating conditions. The high power consumption of the processor is due to its high core count and clock speed, which require more power to operate.
Use Cases
The 819855-B21 HPE Intel Xeon E5-2698V4 processor is designed for use in enterprise-level servers, workstations, and data centers that require high-performance computing capabilities. This processor is ideal for running compute-intensive applications such as scientific simulations, 3D rendering, and big data analytics.
The processor’s large cache size and high core count make it well-suited for tasks that require efficient parallel processing, such as machine learning and artificial intelligence applications. The processor’s support for DDR4 memory also makes it well-suited for memory-intensive applications such as virtualization and database management.
Finally, the 819855-B21 HPE Intel Xeon E5-2698V4 processor is a high-performance computing component that offers 20 cores, 40 threads, and a clock speed of 2.2 GHz. The processor is built on Intel’s Broadwell architecture and features a 50MB L3 cache, a QPI speed of 9.6GT/s, and a power consumption of 135W. The processor is designed for use in enterprise-level servers, workstations, and data centers that require high-performance computing capabilities.
General Information
- Product Type : Server Processor
- Manufacturer: Hewlett Packard Enterprise(HPE)
- Model Number or SKU# 819855-B21
- Product Model : E5-2698V4
- SKU: 819855-B21
Technical Information
- Processor Core : 20-Core
- Clock Speed : 2.2GHz
- Max Turbo Frequency : 3.6GHz
- Quickpath Interconnect(QPI) Speed : 9.6GT/S
- No Of Qpi Links: 2
- Instruction Set : 64-Bit
- Instruction Set Extensions : AVX 2.0
Cache Memory Detail
- L3 Cache : 50MB
- Lithography : 14NM
- Max Thermal Design Power (TDP) : 135W
- Compatible Processor Socket : FCLGA2011
