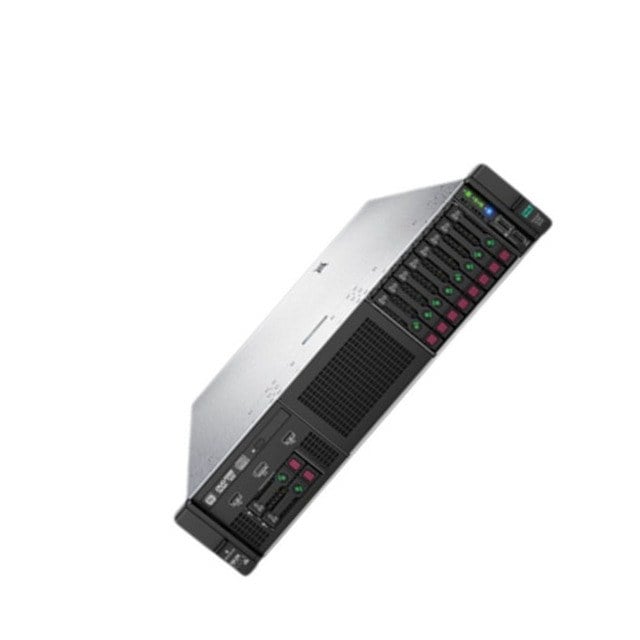

The HPE ProLiant DL560 Gen10 is a powerful 2U rack server designed to meet the needs of businesses and enterprises that require high-performance computing, storage, and networking capabilities. This server comes with 8 small form factor (SFF) hard disk drive (HDD) bays and is equipped with the HPE Smart Array S100I controller. In this article, we will explore the features of this server and what makes it a valuable addition to any enterprise IT environment.
Server Design and Form Factor
The HPE ProLiant DL560 Gen10 has a 2U form factor, which means it takes up two units of rack space. The server is designed to fit into standard data center racks, making it easy to install and manage. The server has a modular design, allowing for easy upgrades and maintenance. It also features a tool-less design, which means that it can be serviced without the need for any special tools.
HDD Bays and Storage Capacity
The HPE ProLiant DL560 Gen10 comes with 8 SFF HDD bays. These bays support hot-swappable HDDs, which means that they can be removed and replaced without the need to power down the server. The server supports both SAS and SATA HDDs, providing flexibility when it comes to choosing storage options.
The server has a maximum internal storage capacity of 122.88 TB when using 15.36 TB SAS HDDs. This means that the server can be used for a wide range of applications that require large amounts of storage, such as data analytics, database management, and content management.
Processor and Memory
The HPE ProLiant DL560 Gen10 is powered by the Intel Xeon Scalable processor family. This processor family is designed to deliver high performance, scalability, and reliability. The server can support up to 4 processors, each with up to 28 cores, providing a total of 112 cores. This means that the server can handle even the most demanding workloads with ease.
In terms of memory, the server has 48 DDR4 DIMM slots, allowing for a maximum memory capacity of 6 TB. The server supports memory speeds of up to 2933 MT/s, providing fast data access and transfer rates. The server also supports memory modules with advanced error correction capabilities, ensuring data reliability and integrity.
Networking and Connectivity
The HPE ProLiant DL560 Gen10 has a range of networking and connectivity options. The server comes with 4 embedded 1GbE network ports, providing basic network connectivity. In addition, the server has an optional FlexibleLOM slot, which allows for the installation of a range of network adapters, including 10GbE and 25GbE adapters. This provides flexibility when it comes to choosing networking options.
The server also has a range of I/O expansion slots, including 6 PCIe 3.0 slots and an optional PCIe 4.0 slot. These expansion slots allow for the installation of additional adapters and controllers, providing even more connectivity options.
HPE Smart Array S100I Controller
The HPE ProLiant DL560 Gen10 comes equipped with the HPE Smart Array S100I controller. This controller provides basic RAID functionality, allowing for the creation of RAID 0, 1, and 5 arrays. The controller also supports SATA and SAS HDDs, providing flexibility when it comes to choosing storage options.
The HPE Smart Array S100I controller is a cost-effective solution for businesses and enterprises that require basic RAID functionality. However, for those that require more advanced RAID capabilities, HPE offers a range of Smart Array controllers that can be installed in the server.
Summary, The HPE ProLiant DL560 Gen10 is a powerful 2U rack server designed for businesses and enterprises that require high-performance computing, storage, and networking capabilities. The server has 8 small form factor (SFF) hard disk drive (HDD) bays and is equipped with the HPE Smart Array S100I controller. It has a maximum internal storage capacity of 122.88 TB and supports up to 4 processors, each with up to 28 cores. The server has a range of networking and connectivity options and comes equipped with the HPE Smart Array S100I controller, providing basic RAID functionality. The server has a modular design, allowing for easy upgrades and maintenance, and comes with a range of management and security features. Overall, the HPE ProLiant DL560 Gen10 is a valuable addition to any enterprise IT environment.
General Information
- Manufacturer : HPE
- Manufacturer Part Number : 841730-b21
- Type: Server
- Sub-Type: PROLIANT DL560
- Hot-swap Bays Qty: 8
Processor & Chipset
- Installed Cpu : None
- Default Cpu Slots : 2
- Cpu Upgradability : 4 Cpu Would Require Optional Mezzanine Board Kit
- Chipset Type : Intel® C621 Chipset
Memory
- Installed Ram Size : 0 GB
- Default Ram Slots : 24 Dimm Slots For Rdimm
- Maximum Ram Slots : 48 Dimm Configuration Would Require Optional Cpu Mezzanine Board Kit
- Technology: Ddr4 Rdimm, Lrdimm
Storage
- Hard Drives : 8 Sff, No Drives
Storage Controllers
- Storage Controller Type : Hpe Smart Array S100I
- Pcie : 3 Pcie 3.0 Slots (8 Pcie 3.0 Slots Are Available If Second Processor Is Chosen And A Secondary And Tertiary Riser Kits Has Been Installed)
Network & Communication
- Network Controller : None.
- Flexiblelom Slot : Various Options Can Be Chosen For Networking, Nic Cards Also Available Via Expansion Slots.
Fans
- 6 Hot Plug Fans, Redundant.
Management
- HPE Ilo Standard With Intelligent Provisioning And (standard), Hpe Oneview Standard Requires Download And Hpe Ilo Advanced, Hpe Ilo Advanced Premium Security Edition, Hpe Oneview Advanced Require Additional Licenses.
Micro Sd Slots
- 1 Micro Sd Card Slot(Internal)
- Tpm Connector
- 1 Trusted Platform Module (Tpm) Connector
Uefi
- Bios Legacy Mode (field Configurable) Or Unified Extensible Firmware Interface (Uefi) Mode (Default)
Usb
- 7 Usb Ports (2 Usb 2.0 And 5 Usb 3.0) Video Ports 2
Video Ports
- 1 Front Optional Via The Universal Media Kit Upgrade Option, 1 Rear
Rails
- Easy Install Rails And Cable Management Arm Are Optional
Dimensions & Weight
- Width : 17.54 IN
- Depth : 29.71 IN
- Height : 3.44 IN
- Weight : 40 LBS
