Description
Form Factor for Flexible Integration
The LFF (Large Form Factor) form factor is a design standard for computer hard drive and other storage devices. LFF drives are larger in physical size compared to the SFF (Small Form Factor) drives. This form factor allows for more space for extra features, such as increased storage capacity or advanced data protection technologies, and provides more flexibility for integration into different types of systems, such as servers and storage arrays. The larger size also allows for better cooling, which can be beneficial for high-performance storage applications.
Compatible with HPE ProLiant Servers
When a product or component is described as being “compatible with HPE ProLiant servers,” it means that it is designed to work with the HPE ProLiant server platform. HPE ProLiant servers are a line of enterprise-class servers produced by Hewlett Packard Enterprise (HPE). These servers are designed for use in data centers and other high-performance computing environments and are compatible with a wide range of hardware and software components. A product that is compatible with HPE ProLiant servers is designed to be used with these servers and will typically have undergone testing to ensure that it is fully functional with the platform.
Reliable and Durable Storage Solution
A reliable and durable storage solution refers to a product or system that is able to consistently and effectively store data over a long period of time, without failing or experiencing data loss. Durability and reliability are important factors to consider when choosing a storage solution, especially for critical data or in industries where data storage is mission-critical. Such solutions are designed to withstand the test of time and to keep data safe against various types of failure, like mechanical failure, power failure, and more. These solutions can include hardware components like hard drives, SSDs, RAID arrays, and software solutions like backup and disaster recovery systems, replication solutions, and more.
Hot-swap design for easy maintenance
Hot-swap design is a feature that allows for easy maintenance by allowing certain components of a device or system to be replaced or removed without shutting down the entire system. This can be useful for servers, storage systems, or other equipment that needs to be maintained while still in operation.

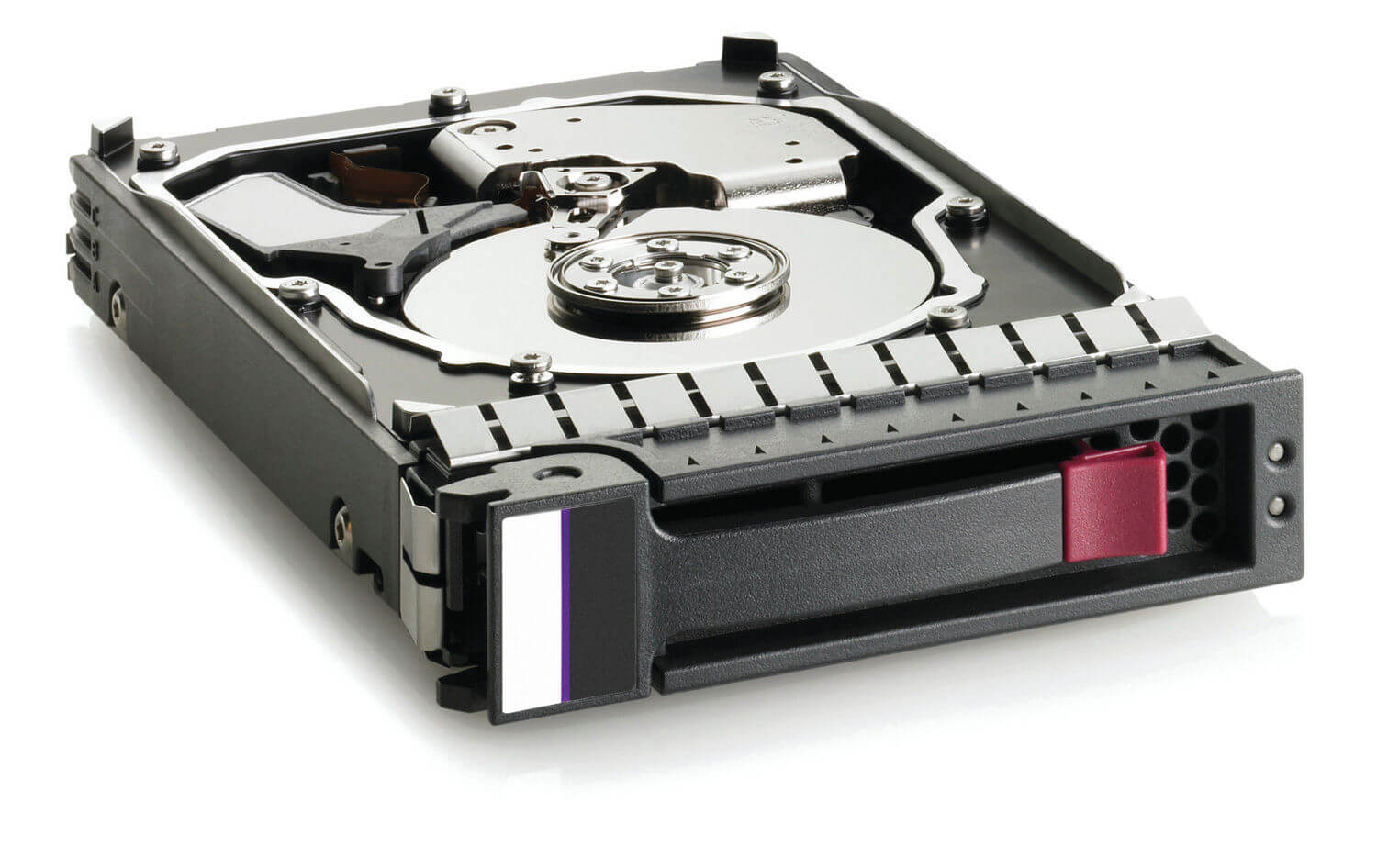

Main Specifications
- Manufacturer Name: HPE
- MPN: 861607-001
- Type: Internal Hard Drive
- HDD Type: SAS-12GBPS
- SKU: 861607-001
- Option Part Number: 861590-B21
- Model Number: MB008000JWAYH
- Assembly Number: 857642-001
Technical Data
- Capacity: 8 TB
- Form Factor: 3.5 inch
- Interface: SAS 12GBPS
- Bytes per Sector: 512
- Plug Type: Hot Plug
- Carrier Type: Smart Carrier
- Workload Type: Midline
- Features: Advanced format 512e
Performance
- Drive Transfer Rate: 12 Gb/sec (External)
- Seek Time: 8 ms (average) / 16 ms (Max)
- Track-to-Track Seek Time: 0.22 MS
- Spindle Speed: 7200 RPM
Dimension and Weight
- Width : 4 Inch
- Depth : 5.8 Inch
- Height : 1 Inch
- Weight : 1.52 Lbs
Environmental Parameters
- Min Operating Temperature: 50 °F
- Max Operating Temperature: 95 °F
Compatibility Information
- HPE ProLiant DL Series: DL120 Gen9 (3.5″), DL120 Gen9 Entry (3.5″), DL180 Gen9 (3.5″), DL180 Gen9 Base (3.5″), DL180 Gen9 Entry (3.5″), DL180 Gen9 Storage (3.5″), DL20 Gen9 (3.5″), DL20 Gen9 Entry (3.5″), DL20 Gen9 Performance (3.5″), DL20 Gen9 Solution (3.5″), DL360 Gen10 (3.5″), DL360 Gen10 Base (3.5″), DL360 Gen10 Entry (3.5″), DL360 Gen10 High Performance (3.5″), DL360 Gen10 Low (3.5″), DL360 Gen10 Performance (3.5″), DL360 Gen10 Solution (3.5″), DL380 Gen10 (3.5″), DL380 Gen10 Base (3.5″), DL380 Gen10 Entry (3.5″), DL380 Gen10 High Performance (3.5″), DL380 Gen10 Performance (3.5″), DL380 Gen10 Solution (3.5″), DL385 Gen10 (3.5″), DL385 Gen10 Base (3.5″), DL385 Gen10 Entry (3.5″), DL385 Gen10 High-Performance (3.5″), DL385 Gen10 Performance (3.5″), DL385 Gen10 Solution (3.5″), DL388 Gen9 (3.5″), DL388 Gen9 Base (3.5″), DL60 Gen9 (3.5″), DL60 Gen9 Base (3.5″), DL60 Gen9 Entry (3.5″), DL80 Gen9 (3.5″), DL80 Gen9 Base (3.5″), DL80 Gen9 Entry (3.5″)
- HPE ProLiant ML Series: ML110 Gen9 (3.5″), ML110 Gen9 Base (3.5″), ML110 Gen9 Entry (3.5″), ML150 Gen9 (3.5″), ML150 Gen9 Base (3.5″), ML150 Gen9 Entry (3.5″), ML150 Gen9 Performance (3.5″), ML30 Gen9 Entry (3.5″), ML30 Gen9 Solution (3.5″)
- HPE StoreEasy 1450
